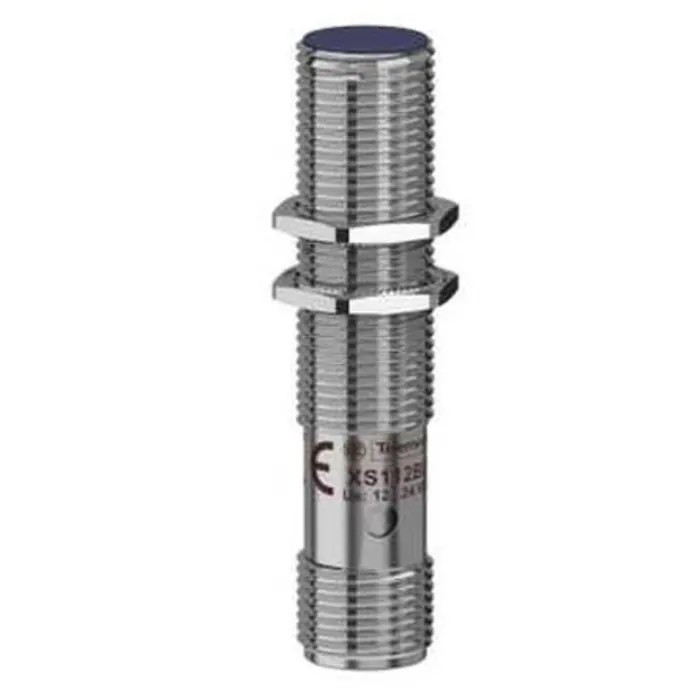

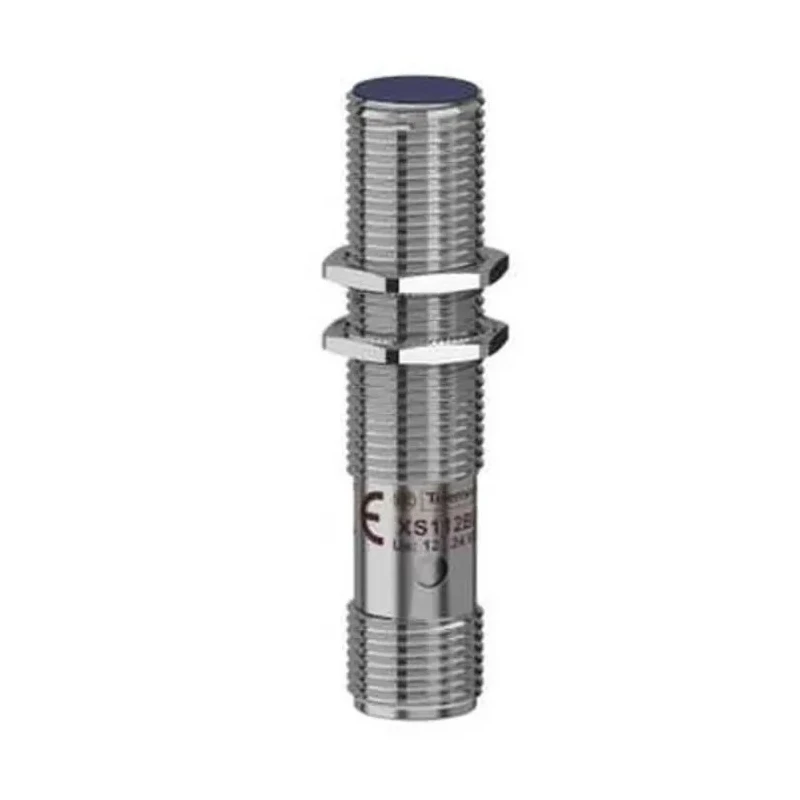

Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M12 x 1 NPN 24V dc 2 mm 200mA XS112BLNAM12

Telemecanique Sensors XS112BLNAM12 is a high-performance threaded barrel inductive proximity sensor designed for reliable detection of metal objects in industrial applications. Operating at 24 V dc, this sensor is capable of detecting metals with a sensing distance of 2 mm, making it ideal for precision detection tasks.

The sensor features a compact M12 x 1 threaded barrel body construction measuring 55 mm in length and 17 mm in width. The robust nickel plated brass housing provides excellent mechanical strength as well as corrosion resistance. Its IP67 and IP65 ratings provide effective protection against dust and water, ensuring durability in harsh environments. The sensor’s shielded design supports flush mounting and reduces interference from adjacent metal objects, allowing stable operation even in high vibration and shock conditions.

Equipped with a 4-pin M12 male connector terminal, the XS112BLNAM12 sensor offers straightforward electrical connection compatible with various industrial control systems. It operates with a maximum switching frequency of 2.5 kHz and a maximum switching current of 200 mA, suitable for many automation and control applications.

This Inductive Proximity Sensor is compliant with important international standards including CE, CSA, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, and UL, which confirms its reliability and safety for industrial use. It performs well in a wide temperature range from -25°C to 70°C, ensuring consistent performance in diverse working environments.

Typical applications include railway systems, mobile equipment, lifts and escalators, hoisting machinery, material handling, packaging, food and beverage processing, pharmaceuticals, and robotics. It is well-suited for industries requiring non-contact metal detection with high accuracy and durability.

Operates on 24 V dc with NPN output type and 200 mA switching current. Threaded barrel body style with M12 x 1 thread size and 55 mm length. Shielded design for flush mounting with enhanced interference protection. Durable nickel plated brass housing and IP67/IP65 rated for industrial environments.

Compatible with PLCs and controllers via 4-pin M12 male connector. Certified to international standards ensuring quality and safety. Suitable for diverse industrial automation and sensing applications. Discover this and other reliable proximity sensors in the Telemecanique Sensors flagship collection at EnvMart.
