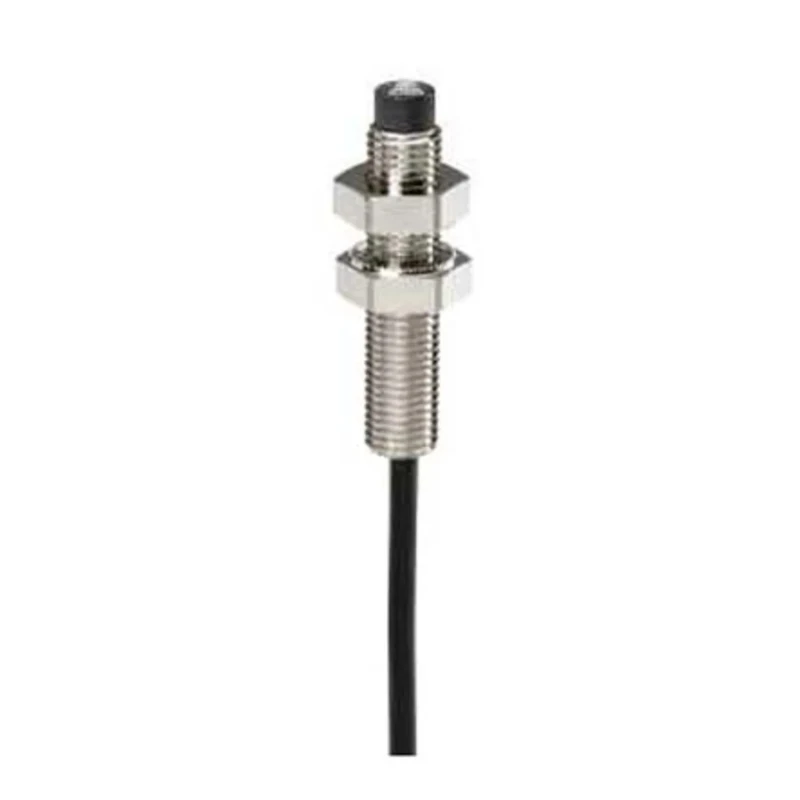

Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M8 x 1 PNP 24 V dc 200mA XS108BLPAL5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 42mm |
| Model | XS108BLPAL5 |
| Depth | 6.6mm |
| IP Rating | IP67, IP65 |
| Width | 9.5mm |
| Mount Type | Flush |
| Housing Material | Nickel Plated Brass |
| Output type | PNP |
| Series | XS |
| Maximum Operating Temperature | 70°C |
| Thread Size | M8 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | Cable |
| Body Style | Threaded Barrel |
| Shielding | Shielded |
| Maximum Switching Frequency | 1kHz |
| Maximum Supply Voltage | 24V dc |
| Materials Detected | Metal |
| Maximum Detection | 1.5mm |
Key Features
- Operates at 24 V dc with a maximum switching current of 200 mA.
- Features a shielded, threaded barrel body style crafted from nickel plated brass for durability.
- IP67 and IP65 rated for protection against dust and water exposure.
- Designed for flush mounting with cable terminal type, supporting a mounting length of 42 mm.
- Operates within a temperature range of -25°C to 70°C, suitable for industrial environments.
- Complies with CE, CSA, IEC 60068-2, IEC 60529, and UL standards ensuring high reliability.
- Maximum switching frequency is 1 kHz, allowing for rapid sensing applications.
- Equipped with a PNP output type compatible with various PLCs and controllers.
Product Description
Telemecanique Sensors XS108BLPAL5 is a high-performance threaded barrel inductive proximity sensor designed for accurate detection of metallic objects in harsh industrial environments. Operating at 24 V dc with a 200 mA maximum switching current, this sensor withstands challenging conditions with an IP67 and IP65 rating, ensuring protection from dust and water ingress.
Constructed from robust nickel plated brass, the sensor features an M8 x 1 threaded barrel for secure flush mounting. Its sensing distance of up to 1.5 mm allows precise detection, while the shielded design minimizes interference from surrounding materials.
Capable of functioning across temperatures ranging from -25°C up to 70°C, the XS108BLPAL5 is suitable for demanding settings such as railway equipment, mobile machinery, lifts, escalators, packaging lines, robotics, and pharmaceutical processing.
The sensor operates with a high switching frequency of 1 kHz, enabling efficient workflow in automation and control system applications. Its PNP output configuration ensures compatibility with a wide range of PLCs and industrial controllers through cable terminals.
Operates at 24 V dc and 200 mA switching current. Durable nickel plated brass body with threaded barrel (M8 x 1). IP67 and IP65 ratings for dust and water resistance. Flush mounting type with a body length of 42 mm and width of 9.5 mm.
Wide operating temperature range from -25°C to 70°C. Complies with CE, CSA, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, and UL standards. Switching frequency up to 1 kHz for rapid detection. Shielded design, suitable for metal detection up to 1.5 mm distance.
PNP output with cable terminal for flexible installation.
This Inductive Proximity Sensor's robust build and flexible features make it suitable across numerous industrial applications, including manufacturing lines, material handling, robotics, and safety automation systems. Browse additional Telemecanique Sensors products and models to find complementary automation components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 200 mA.
It operates at a supply voltage of 24 V dc.
The maximum detection distance for this sensor is 1.5 mm.
This sensor has IP67 and IP65 ratings, providing protection against dust and water exposure.
It is designed to detect metallic objects.
The maximum switching frequency for this unit is 1 kHz.
It operates within a temperature range of -25°C to 70°C.
The housing is made from nickel plated brass.
It features a PNP output type.
This sensor is designed for flush mounting.
The dimensions are 42 mm in length, 9.5 mm in width, and 6.6 mm in depth.
It complies with CE, CSA, IEC 60068-2, IEC 60529, and UL standards.
