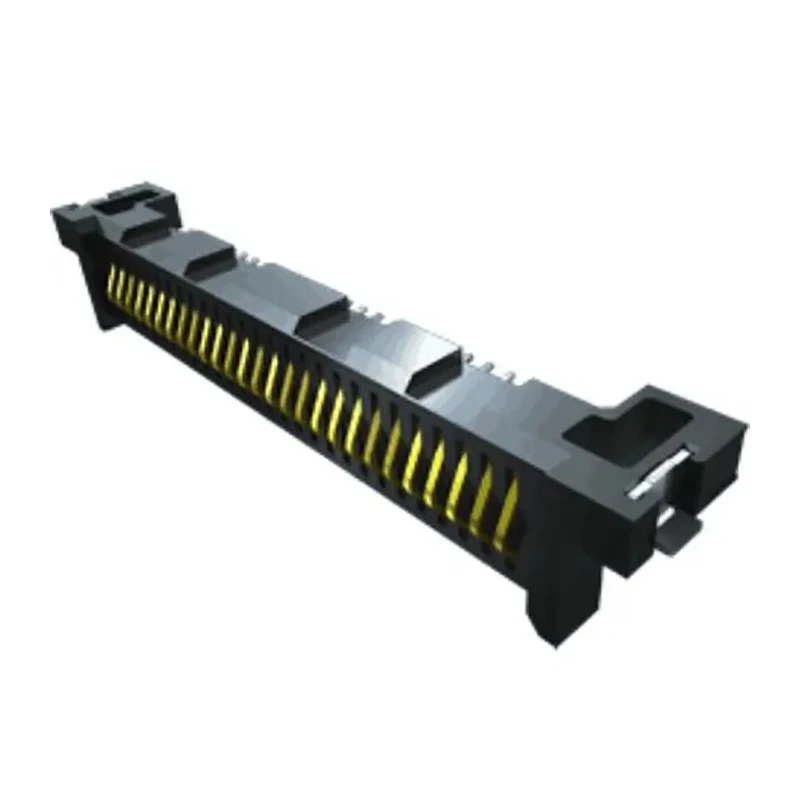

Samtec Right Angle Surface PCB Socket 20-Contact 1 Row 1 mm Pitch Solder SAL1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 2.9A |
| Model | SAL1 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | SAL1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Connector System | Board-to-Board |
Key Features
- Designed for board-to-board connector applications.
- Features high-quality liquid crystal polymer housing for durability.
- Gold-plated beryllium copper alloy contacts provide reliable conductivity.
- Rated for a current capacity of 2.9 A.
- Suitable for operating temperatures from -55°C to +125°C.
- Surface mount technology ensures secure board placement.
- Right angle orientation for compact PCB designs.
- Complies with RoHS standards to ensure environmental safety.
Product Description
Samtec SAL1 Right Angle Surface PCB Socket (Model SAL1) is engineered for high-speed, reliable board-to-board connectivity featuring 20 contacts in a single row and a precise 1 mm pitch solder termination. It is constructed with a liquid crystal polymer housing ensuring high mechanical performance and resistance under demanding operational conditions. This socket series supports a current load rating of 2.9 A and operates efficiently within a broad temperature range from -55°C to +125°C, making it suitable for various industrial and electronic applications.
The gold-plated beryllium copper alloy contacts ensure excellent electrical performance and long-lasting durability, meeting strict quality and environmental standards including RoHS compliance. Its right angle orientation and surface mount technology facilitate compact, efficient PCB layouts conducive to advanced electronic circuit designs.
This PCB socket is ideal for electronics manufacturing, industrial equipment, telecommunications, and other sectors needing dependable, high-quality board-to-board connectors. The SAL1 series provides flexible options to integrate seamlessly with compatible components, enhancing the versatility of your electronic assemblies.
Designed for board-to-board connector applications. Liquid crystal polymer housing offers durability and mechanical stability. Gold-plated beryllium copper alloy contacts for superior conductivity. Current rating of 2.9 A supports moderate power requirements.
Wide operating temperature range: -55°C to +125°C. Surface mount design for secure PCB installation. Right angle configuration maximizes PCB layout efficiency. Complies with RoHS standards for environmental safety. Compatible with SAL1 series connector systems.
Explore additional components in the PCB Sockets category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current capacity of 2.9 A, making it suitable for moderate power requirements in various applications.
The operating temperature range for this unit is from -55°C to +125°C, allowing it to function effectively in diverse environmental conditions.
It features a liquid crystal polymer housing for durability and beryllium copper alloy contacts that are gold-plated for reliable conductivity.
This model is designed with 20 contacts in a single row, facilitating efficient board-to-board connectivity.
The termination type for this socket is solder, ensuring a secure connection to the PCB.
The contact pitch for this unit is 1 mm, which is standard for many PCB applications.
This socket utilizes surface mount technology, allowing for secure placement on the PCB.
Yes, it complies with RoHS standards, ensuring it meets environmental safety regulations.
The orientation of this model is right angle, which helps maximize PCB layout efficiency.
The Samtec Right Angle Surface PCB Socket is manufactured in India.
This model is ideal for board-to-board connector applications in electronics manufacturing, industrial equipment, and telecommunications.
The gold plating on the beryllium copper alloy contacts enhances electrical performance and contributes to the durability of the connection.
