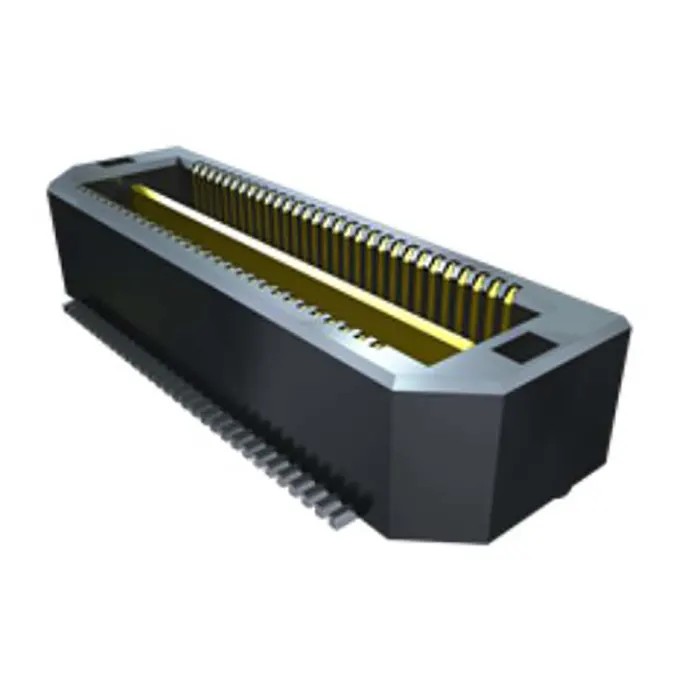

Samtec PCB Header QTH Series Straight Surface Mount 60 Contacts 0.5 mm Pitch 2 Row Shrouded QTH-030-01-L-D

Samtec QTH-030-01-L-D PCB Header from the QTH Series is a straight, surface-mount connector designed for PCB applications requiring 60 contact positions with a 0.5 mm pitch arranged in 2 rows. This shrouded header ensures secure mating and enhanced mechanical protection for board-to-board systems in electronics manufacturing.

Constructed with a high-quality liquid crystal polymer housing, it offers robust mechanical and thermal stability. Phosphor bronze contacts with gold plating provide superior electrical conductivity and corrosion resistance, critical for reliable signal transmission in industrial and commercial electronic equipment.

The connector is rated for a wide temperature range, from -55 degrees Celsius to 125 degrees Celsius, making it suitable for demanding environments including telecommunications, computing hardware, instrumentation, and embedded systems. The male contact gender with solder termination facilitates efficient soldering during PCB assembly.

This component's surface-mount technology (SMT) mounting style enables compact and automated PCB assembly, supporting high-density circuit designs. Its shrouded design adds mechanical protection against accidental damage or misalignment during mating.

Key features include a precise 0.5 mm row pitch and a total of 60 contact positions distributed across two rows, balancing compact size with connectivity needs. This makes it ideal for board-to-board connections requiring fine pitch and compact form factors in electronics manufacturing and prototyping.

Features 60 gold-plated contacts for optimal conductivity. Uses liquid crystal polymer housing for mechanical strength and heat resistance. Shrouded design safeguards contacts and ensures secure mating. Wide operating temperature range from -55°C to 125°C suitable for harsh environments.

Surface mount type facilitates automated PCB assembly and reduced footprint. Two rows with 0.5 mm pitch enable precise and compact connectivity. Phosphor bronze contact material ensures durability and conductivity. Male contact gender and solder termination type optimize assembly processes.

This Samtec PCB Header series is widely used in industrial electronics, computing, telecommunications, manufacturing, and laboratory equipment, where high reliability and precision board-to-board connections are essential. EnvMart offers comprehensive product data for efficient components sourcing and design integration.
