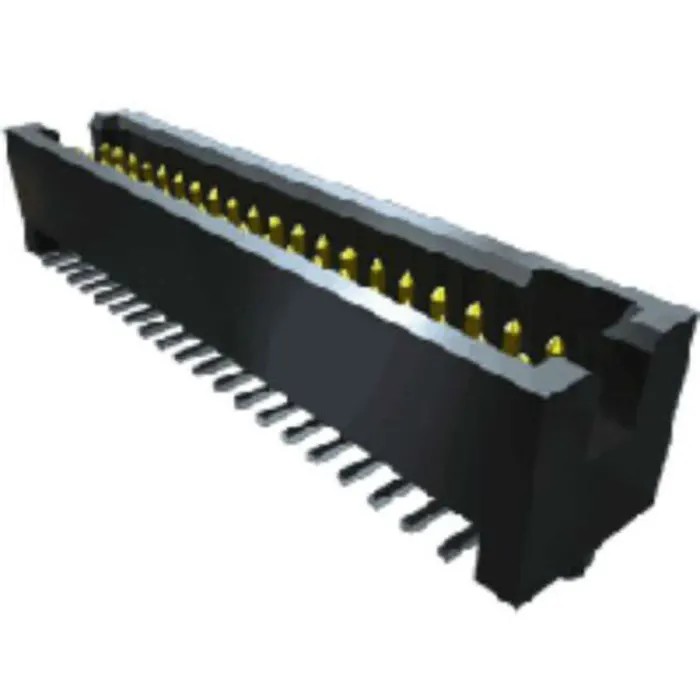

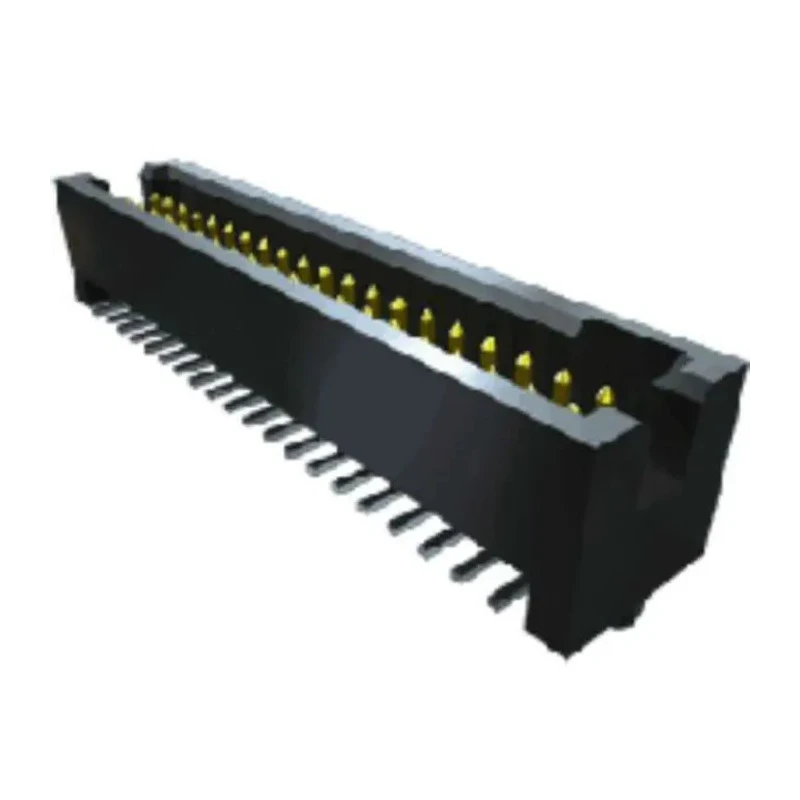

Samtec TFM Series Right Angle Through Hole 40-Contact PCB Header 1.27 mm Pitch Shrouded TFM-120-12-S-D-LC

The Samtec TFM-120-12-S-D-LC is a high-performance PCB Header connector designed for industrial and electronic applications requiring reliable board-to-board connections. Featuring a right angle orientation and 40 male contacts arranged in two rows, it supports a compact 1.27 mm pitch, providing dense interconnection in minimal PCB space.

The housing is made of durable liquid crystal polymer, offering mechanical strength and thermal stability making it ideal for demanding environments. Contact materials include phosphor bronze with gold plating, ensuring robust conductivity and resistance to oxidation and wear.

This through hole mount header is shrouded to protect pins from damage during handling and installation. It is capable of carrying currents up to 3.2A per contact and supports voltages up to 250V, suitable for medium power electronic circuits.

The connector's operational temperature range from -55°C to 125°C allows it to be used in industrial, electronic assembly, telecommunications, automation, and instrumentation sectors. Its solder termination method aligns with standard PCB assembly techniques for secure and reliable connections.

Compact 1.27 mm contact pitch for high-density PCB designs. Liquid crystal polymer housing for high strength and thermal resistance. Gold plated phosphor bronze contacts offer excellent conductivity and corrosion resistance.

Right angle orientation facilitates surface mounting and optimal PCB layout. Shrouded 2-row design protects pins and ensures correct mating. Rated for 3.2A current and 250V voltage in demanding industrial applications. Wide temperature operation range from -55°C to 125°C.

Solder termination type for reliable PCB integration.

This header is widely used in PCB interconnects in various industrial, electronic manufacturing, automation, and telecommunications applications. It provides durable, high-quality connections where space efficiency and electrical reliability are critical.
