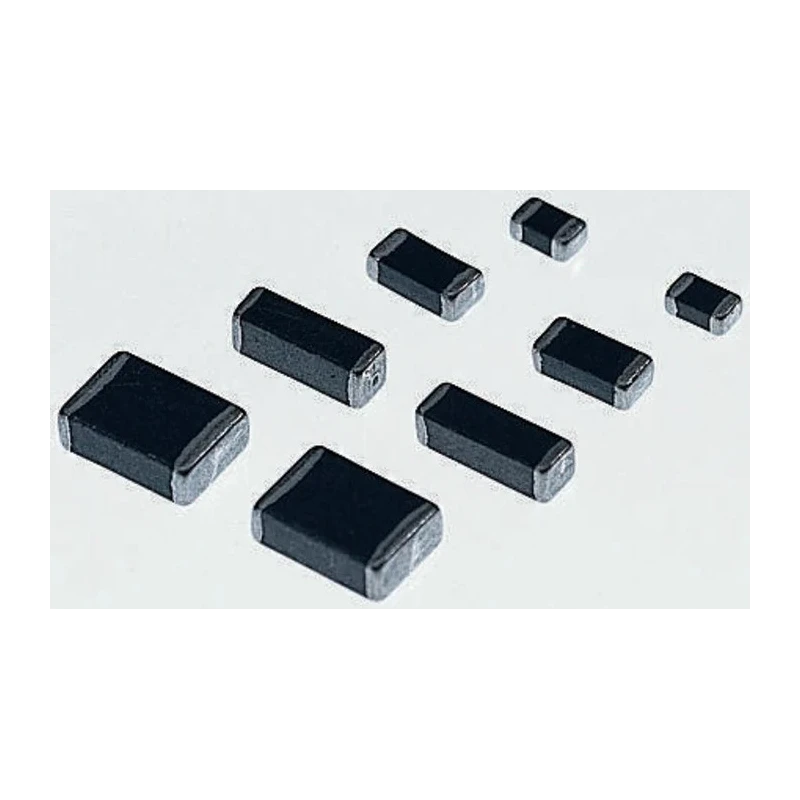

Wurth Elektronik 1206 Unshielded Multilayer Surface Mount Inductor with Ferrite Core 100 nH ±10% 7447912
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.1mm |
| Length | 3.2mm |
| Model | 7447912 |
| Depth | 1.6mm |
| Packaging | Tape & Reel |
| Series | WE-MI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 100nH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS |
| Package/Case | 1206 |
| Maximum DC Current | 250mA |
| Maximum DC Resistance | 250mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 270MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Multilayer |
Key Features
- The inductor operates with a maximum DC current of 250 mA.
- Features a low maximum DC resistance of 250 mΩ to enhance efficiency.

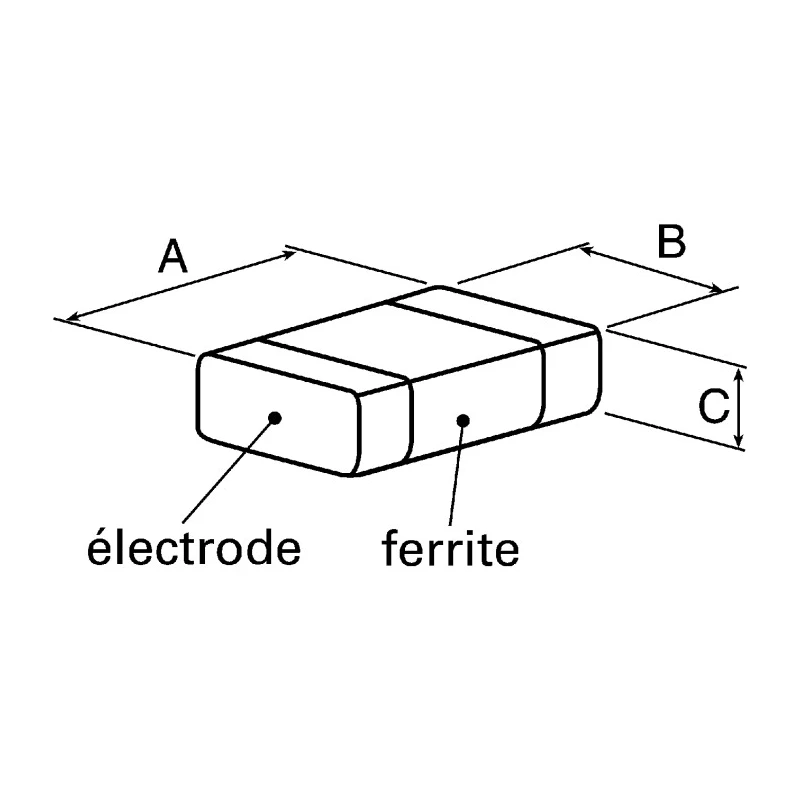

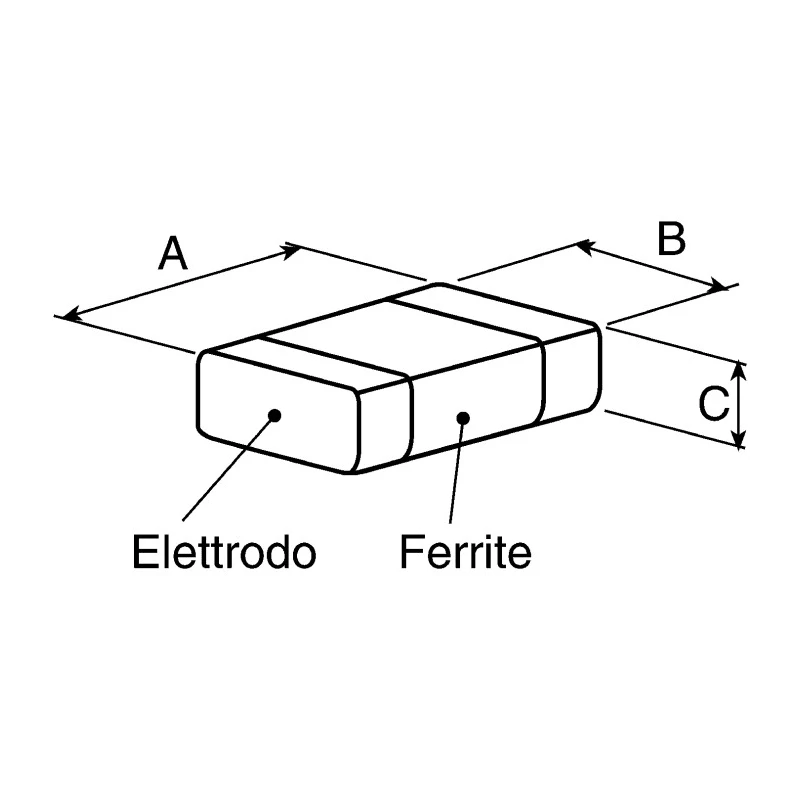

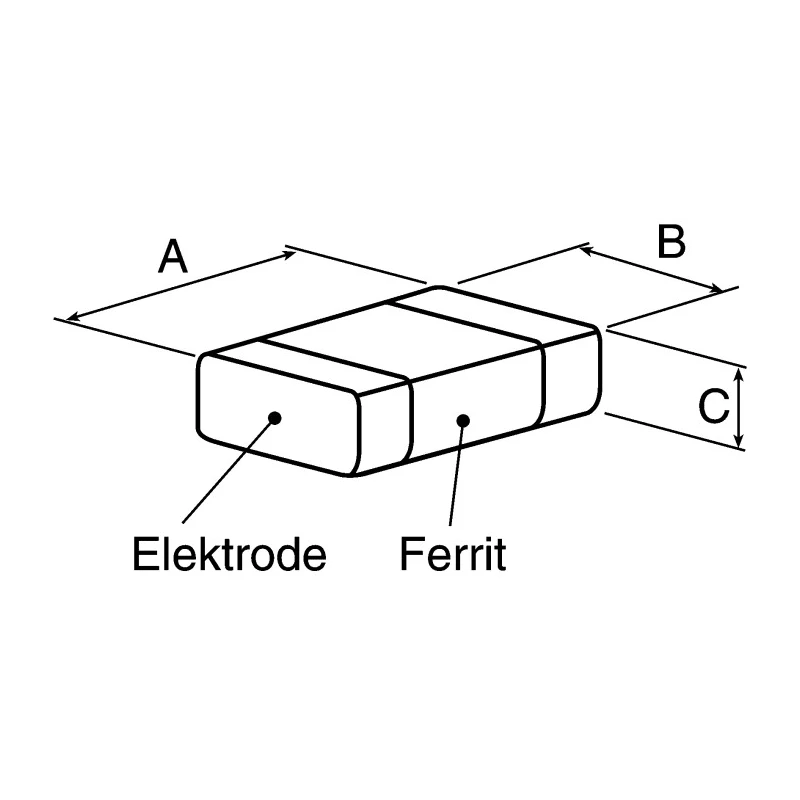

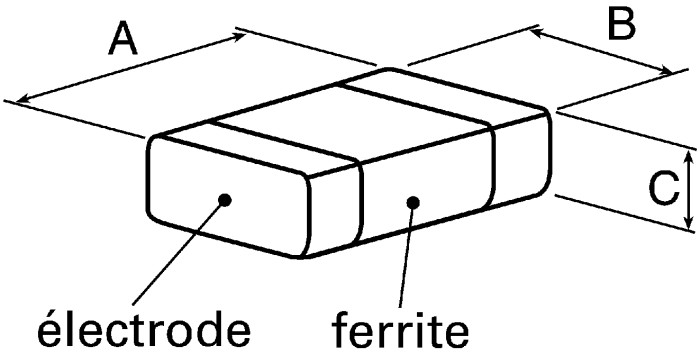

- Compact 1206 package size with dimensions 3.2 mm length, 1.1 mm height, and 1.6 mm depth.
- Operating temperature range is from -55°C to 125°C ensuring reliable performance.
- Maximum self-resonant frequency is 270 MHz, suitable for high-frequency circuits.
- Constructed with multilayer technology for improved magnetic screening.
- Uses a ferrite core to provide excellent inductance stability and quality factor of minimum 20.
- Designed for surface mount technology with tape and reel packaging for efficient assembly.
Product Description
Wurth Elektronik 7447912 is a high-quality 1206 unshielded multilayer surface mount inductor featuring a ferrite core and an inductance of 100 nH with ±10% tolerance. It supports a maximum DC current of 250 mA and maintains a maximum DC resistance of only 250 mΩ which ensures low power losses in electronic circuits.
The component provides compact dimensions with a length of 3.2 mm, height of 1.1 mm, and depth of 1.6 mm, making it suitable for densely packed PCBs. Its operational temperature range from -55°C to 125°C allows it to perform reliably in diverse environmental conditions.
This multilayer inductor has a maximum self-resonant frequency of 270 MHz and a minimum quality factor of 20, making it ideal for high-frequency applications such as filter circuits, oscillator circuits, and telecommunications equipment. The ferrite core construction enhances magnetic screening and stability.
Designed for surface mount technology, it is supplied in tape and reel packaging to facilitate automated assembly processes and improve production efficiency. This inductor complies with international standards including IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS, underscoring its quality and environmental compliance.
The inductor supports a maximum DC current rating of 250 mA. Has a compact 1206 size package with precise dimensional specifications. Features low DC resistance of 250 mΩ for high efficiency. Wide operating temperature range from -55°C to 125°C.
Maximum self-resonant frequency of 270 MHz suitable for high-frequency circuits. Multilayer construction provides improved magnetic screening. Ferrite core material enhances inductance stability and performance. Tape and reel packaging supports surface mount technology applications.
IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS compliant.
This Wurth Elektronik Surface Mount Inductor is widely utilized in industrial electronics, telecommunications, computing devices, and filter network design, supporting efficient and compact electronic designs. Explore more electronics components and inductors on EnvMart for comprehensive industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 100 nH with a tolerance of ±10%.
It supports a maximum DC current of 250 mA, ensuring efficient performance in electronic circuits.
The inductor has compact dimensions of 3.2 mm in length, 1.1 mm in height, and 1.6 mm in depth.
The maximum self-resonant frequency is 270 MHz, making it suitable for high-frequency applications.
It operates within a temperature range of -55°C to 125°C, allowing for reliable performance in various environments.
It is constructed with a ferrite core, which enhances inductance stability and performance.
The maximum DC resistance is 250 mΩ, which helps to reduce power losses in electronic circuits.
This model has a minimum quality factor of 20, indicating its efficiency in high-frequency applications.
It is supplied in tape and reel packaging, facilitating automated assembly processes.
It complies with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards, ensuring quality and environmental compliance.
This inductor is widely utilized in industrial electronics, telecommunications, computing devices, and filter network design.
It features a surface mount termination style, designed for efficient integration into electronic circuits.
