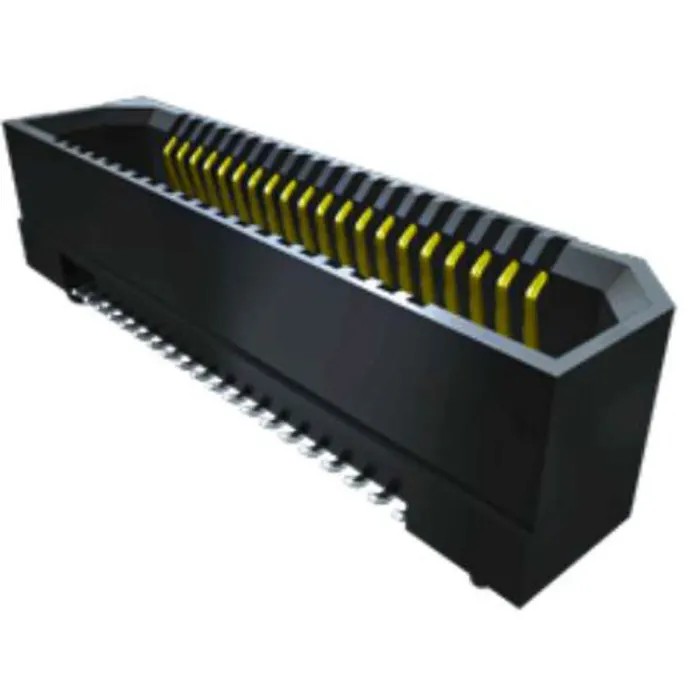

Samtec Series Vertical Surface PCB Socket, 150-Contact, 2 Row, 0.8 mm Pitch, 318V, 2.2A, Gold-Plated Beryllium Copper ERF8

Free Delivery in India | Lowest Global Shipping Charges

Samtec Series Vertical Surface PCB Socket, 150-Contact, 2 Row, 0.8 mm Pitch, 318V, 2.2A, Gold-Plated Beryllium Copper ERF8

Name: Samtec Series Vertical Surface PCB Socket, 150-Contact, 2 Row, 0.8 mm Pitch, 318V, 2.2A, Gold-Plated Beryllium Copper ERF8
Brand: Samtec
SKU: 166476
Price: 11.4 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	318V
Brand	Samtec
Orientation	Vertical
Current	2.2A
Model	ERF8
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Alloy
Series	ERF8
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	150
Connector System	Board-to-Board
Stacking Height	18mm
Row Pitch	4.5mm

Key Features

This PCB socket has 2 rows and supports currents up to 2.2 A.
It features gold-plated beryllium copper alloy contacts for excellent conductivity and durability.
The housing is manufactured from liquid crystal polymer, ensuring high temperature resistance.
Designed for surface mount usage, it supports an operating voltage of 318 V and stacking height of 18 mm.
The socket works in a temperature range from -55 °C to 125 °C suitable for demanding electronic applications.
It is compatible with high-speed data transfer systems supporting up to 56 Gbps PAM4 performance.
This vertical socket is ideal for industrial, electronic, and communication equipment assembly.
Termination type is solder, facilitating secure PCB mounting.

Product Description

Samtec ERF8 Series Vertical Surface PCB Socket ERF8 is a precision board-to-board connector designed for high-speed electronic applications requiring robust and reliable signal integrity. Featuring 150 gold-plated contacts arranged in 2 rows at a fine pitch of 0.8 mm, this connector provides exceptional electrical performance and durability. The contacts are made from beryllium copper alloy, known for excellent conductivity and mechanical strength.

The socket housing is constructed from liquid crystal polymer, which offers outstanding thermal stability and mechanical resilience. This makes the ERF8 socket suitable for use in harsh industrial environments with operating temperatures ranging from -55 °C to 125 °C.

Mounting is surface type with vertical orientation, enabling compact and space-efficient PCB designs. It supports a stacking height of 18 mm and an operating voltage of 318 V with a current capacity of 2.2 A, making it ideal for power and signal integrity demanding systems.

Designed for use in high-performance computing, telecommunications, industrial electronics, and data communication systems, the ERF8 socket meets the need for reliable, high-density interconnections. It supports high-speed data rates up to 56 Gbps PAM4, ensuring fast and accurate signal transmission.

This component is RoHS compliant and does not include restricted substances. Its solder termination type facilitates easy and secure PCB mounting. The vertical socket design optimizes board real estate usage. Made by Samtec, a trusted name in advanced electronic connectors.

The product is new and ready for integration into sophisticated assemblies.

Samtec’s ERF8 Series is a top choice in connectors for electronics manufacturers looking for quality, reliability, and performance. Explore more products like this in the PCB Sockets category at EnvMart for your industrial and laboratory needs.
