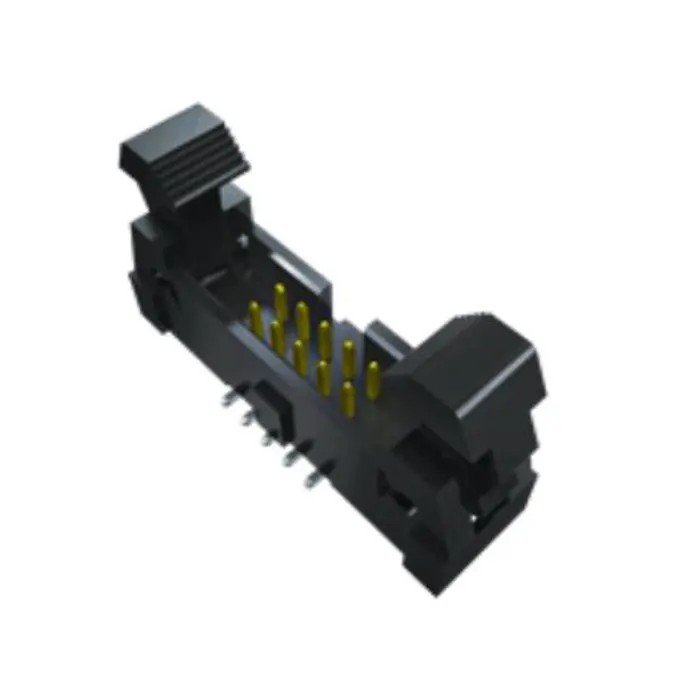

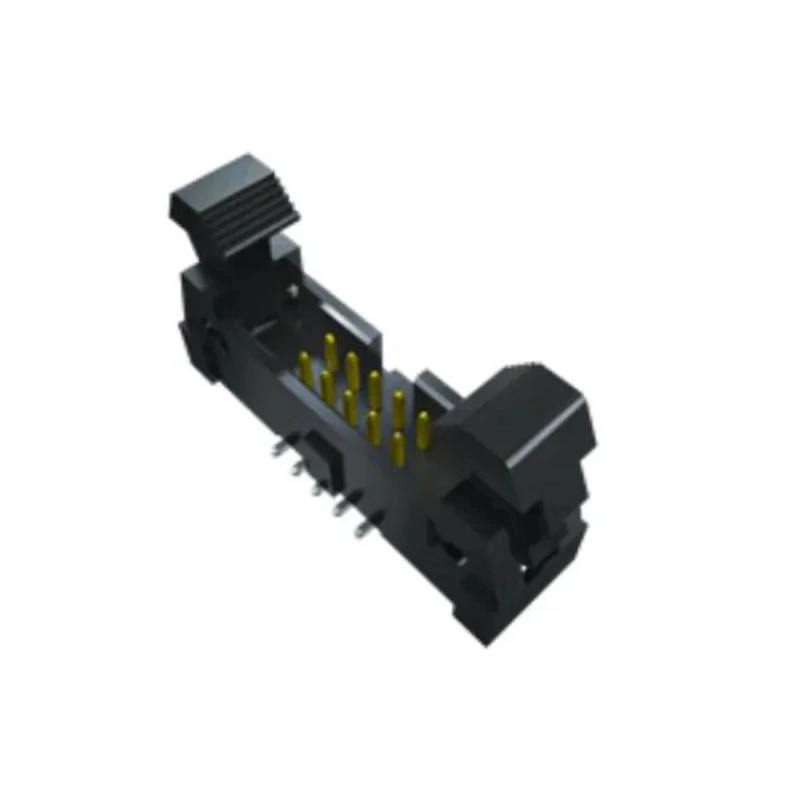

Samtec EHT Series Straight Surface PCB Header 20 Contact 2 mm Pitch 2 Row Shrouded EHT-110-01-S-D-SM
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Model | EHT-110-01-S-D-SM |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | EHT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Cable |
Key Features
- Features a straight orientation and shrouded housing for reliable connection.
- Constructed with liquid crystal polymer housing material for durability.
- Utilizes phosphor bronze contacts plated with gold for enhanced conductivity.
- Designed for surface mount with a board-to-cable connector system.
- Operates reliably from -55°C to 125°C for various industrial environments.
- Includes a polarization notch and optional locking caps for secure cabling.
- Termination type is solder for stable electrical connections.
- Male contact gender suitable for compatible female connectors.
Product Description
The Samtec EHT-110-01-S-D-SM is a high-quality EHT series PCB header engineered for surface mount applications. Featuring 20 contacts arranged in 2 rows with a 2 mm pitch, the connector provides robust board-to-cable interface capabilities.
Its housing is made from black liquid crystal polymer, which offers excellent mechanical strength and thermal stability within a wide operating temperature range of -55°C to 125°C. The shrouded design incorporates a polarization notch ensuring correct mating orientation, reducing assembly errors.
Contacts are fabricated from phosphor bronze and plated with gold, delivering reliable electrical conductivity and corrosion resistance. The termination type is solder, making it compatible with standard PCB assembly processes.
This PCB header supports secure cable locking via optional caps, enhancing connection stability during operation. Its male contact gender allows mating with standard female connectors used in various electronics systems.
Commonly used in industrial, manufacturing, electronics, and power connector applications, the Samtec EHT series is designed to meet demanding operational environments without sacrificing performance.
Features a straight orientation and shrouded housing for reliable connection. Constructed with liquid crystal polymer housing material for durability. Utilizes phosphor bronze contacts plated with gold for enhanced conductivity.
Designed for surface mount with a board-to-cable connector system. Operates reliably from -55°C to 125°C for various industrial environments. Includes a polarization notch and optional locking caps for secure cabling. Termination type is solder for stable electrical connections.
Male contact gender suitable for compatible female connectors. Ideal for electronic component assembly and PCB integration. Used extensively in industrial, manufacturing, and electronic equipment applications. Explore the extensive range of PCB Headers and related electronic components available at EnvMart for your next design or production project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this PCB header have a pitch of 2 mm.
This model can operate reliably at a maximum temperature of 125°C.
The housing is constructed from liquid crystal polymer, and the contacts are made from phosphor bronze plated with gold.
This PCB header features a total of 20 contacts arranged in 2 rows.
The termination type for this header is solder, suitable for standard PCB assembly processes.
The minimum operating temperature for this unit is -55°C.
Yes, this model is specifically designed for surface mount applications.
Yes, it includes a polarization notch and optional locking caps for secure cabling.
This PCB header has a male contact gender, making it suitable for mating with compatible female connectors.
This PCB header is commonly used in industrial, manufacturing, electronics, and power connector applications.
It utilizes a board-to-cable connector system for reliable connections.
The orientation of this PCB header is straight, designed for easy installation.
