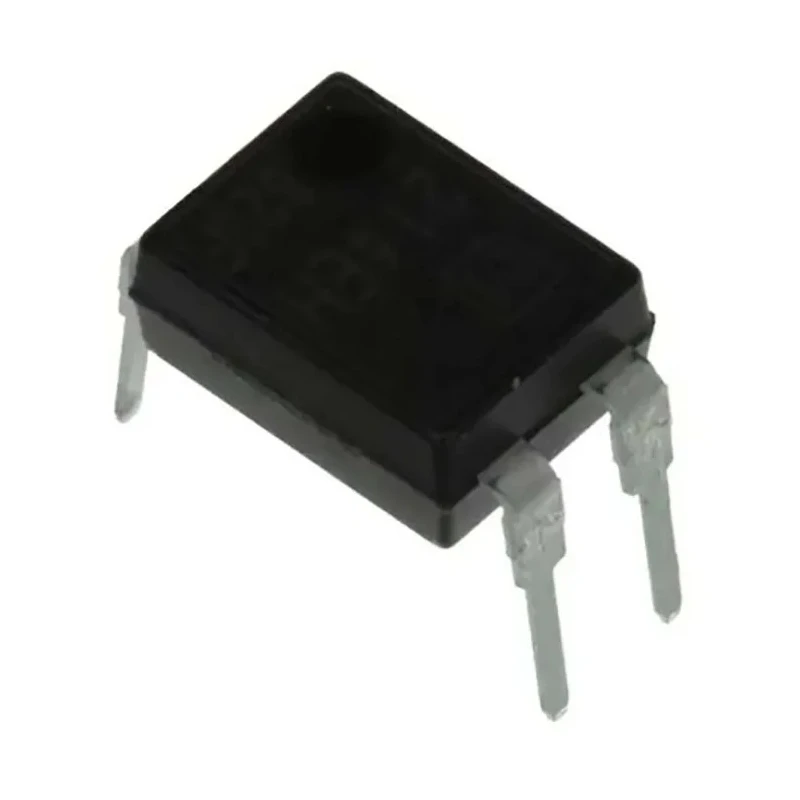

Panasonic PhotoMOS Series Solid State Relay, Surface Mount, 1.5 A Load, 60 V Load AQY282EH

Panasonic AQY282EH is a PhotoMOS Series Solid State Relay designed for surface mounting on printed circuit boards. With a maximum load current of 1.5 A and a load voltage rating of 60 V AC/DC, it is ideal for switching applications requiring reliable performance.

This relay features a single pole single throw (SPST) contact configuration suitable for both AC and DC switching functions. Its low on-state resistance of 2.5 ohms minimizes power loss, enhancing efficiency in sensitive electronic circuits.

Engineered to operate over a wide temperature range from -40°C to 85°C, the device ensures stable performance in diverse industrial and commercial environments. The off-state leakage current is exceptionally low at a maximum of 1 microampere, reducing unwanted power consumption.

The device’s compact physical dimensions (6.4 mm length, 4.78 mm width, and 3.2 mm height) make it suitable for space-constrained applications. The device employs MOSFET output technology with reinforced insulation rated at 5000 V, providing enhanced user safety and circuit isolation.

This product meets rigorous quality and safety certifications including UL, BSI, and C-UL standards. Manufacturing in Thailand guarantees consistent build quality and reliable supply.

Supports SPST contact configuration suitable for AC/DC switching applications. Features low on-state resistance of 2.5 ohms ensuring efficient conduction. Designed to function reliably from -40°C to 85°C operating temperatures.

Off-state leakage current is extremely low at a maximum of 1 microampere. Compact dimensions of 6.4 mm length, 4.78 mm width, and 3.2 mm height fit surface mount PCB designs. MOSFET output type with reinforced insulation up to 5000 V for enhanced safety.

Complies with UL, BSI, and C-UL standards ensuring high-quality manufacturing. Manufactured in Thailand ensuring consistent production quality.

This relay is suitable for use in industrial automation, electronic control systems, instrumentation, and general electronic switching applications where compact and reliable solid state relays are required. EnvMart provides comprehensive selections of electronic components including such Solid State Relays for diverse industrial and commercial requirements.
