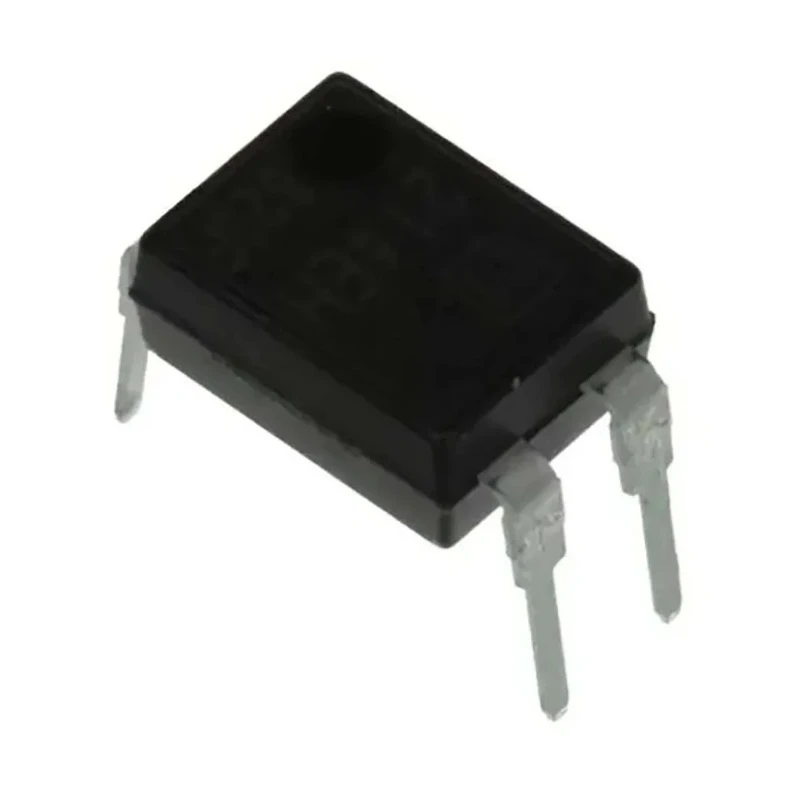

Panasonic PhotoMOS Series Solid State Relay, 1.5 A Load, Surface Mount, 60 V Load AQY282EH
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 3.2mm |
| Length | 6.4mm |
| Model | AQY282EH |
| Width | 4.78mm |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | PhotoMOS |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Capacitance | 0.8pF |
| Minimum Operating Temperature | -40°C |
| Switching Function | AC/DC Switching |
| Maximum Load Current | 1.5A |
| Standards/Approvals | UL, BSI, C-UL |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | 60V ac/dc |
| Off State Leakage Current | 1μA |
| On State Resistance | 2.5Ω |
Key Features
- Features a compact DIP4-pin package with reinforced insulation of 5,000 V.
- Controls low-level analogue signals with high sensitivity and low on-resistance.
- Low off-state leakage current of max. 1 μA ensures reduced power losses.
- Operating temperature range from -40°C to 85°C suitable for diverse environments.
- Complies with UL, BSI, and C-UL safety standards for reliable industrial use.
- Utilizes MOSFET output for efficient switching and longevity.
Product Description
Panasonic AQY282EH PhotoMOS Series Solid State Relay is a high-quality electronic component designed to provide reliable relay operation within electrical and automation systems. It features a DIP4-pin surface mount design with reinforced insulation rated at 5,000 V, ensuring safety and durability in industrial applications.
This relay controls low-level analogue signals efficiently while delivering a maximum load current of 1.5 A and a maximum load voltage of 60 V, compatible with AC and DC loads. Its low on-state resistance of 2.5 Ω contributes to minimal heat generation and increased operating efficiency. The device maintains a very low off-state leakage current (.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this relay is 1.5 A.
This model supports a maximum load voltage of 60 V.
It utilizes a MOSFET output for efficient switching.
The operating temperature range is from -40°C to 85°C.
The on-state resistance is 2.5 Ω.
The off-state leakage current is a maximum of 1 μA.
This relay features a surface mount design.
It complies with UL, BSI, and C-UL safety standards.
The contact configuration is SPST (Single Pole Single Throw).
The capacitance is 0.8 pF.
It can control both AC and DC loads efficiently.
The height of this relay is 3.2 mm.
