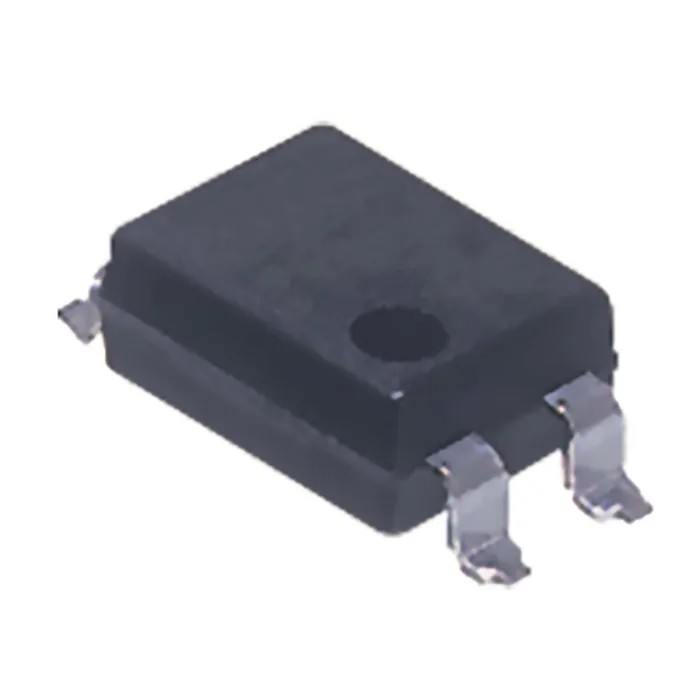

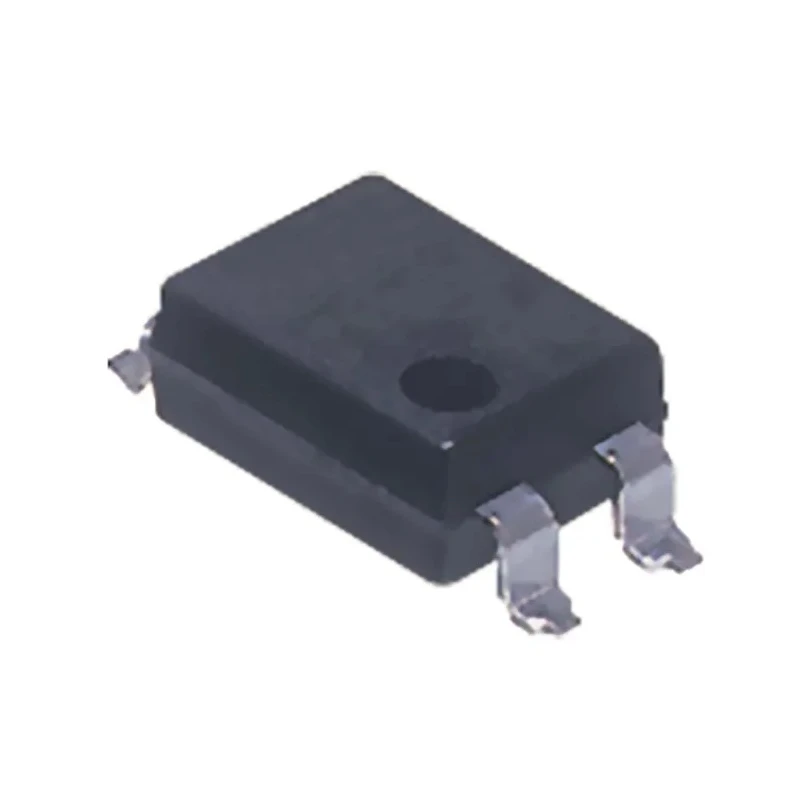

Panasonic PhotoMOS Series Solid State Relay 1.5 A Load Surface Mount 60 V Load AQY412EHA

Panasonic AQY412EHA PhotoMOS Series Solid State Relay is engineered for reliable operation with a maximum load current of 1.5 A and maximum load voltage of 60 V. Featuring surface mount technology and through-hole terminal type, it facilitates straightforward integration into electronic circuits.

This relay employs 1 Form B output type (normally closed) with SPST contact configuration, ideal for AC/DC switching applications. Its low on-state resistance of 2.5 Ω ensures minimal power dissipation during operation.

The reinforced insulation rating of 5,000 V provides exceptional electrical isolation, enhancing safety in industrial and commercial environments. Operating safely from -40°C up to 85°C, the relay is suitable for various challenging conditions found in industrial automation, instrumentation, and control systems.

Compact physical size with dimensions of 6.4 mm length, 4.78 mm width, and 2.9 mm height enable high-density PCB layouts. Additionally, the relay demonstrates very low off-state leakage current of 10 μA and capacitance of 1.5 pF for high-precision signal control.

This relay is ideal for industrial automation, laboratory instrumentation, HVAC control systems, and commercial electronics applications. It supports control of low-level analog signals with high sensitivity and reliability.

Certified RoHS compliant ensuring environmentally friendly manufacture. Made in Japan, reflecting high quality standards and manufacturing precision. Explore more premium quality relays and Panasonic electronic components at EnvMart for your electronics design and industrial automation needs.
