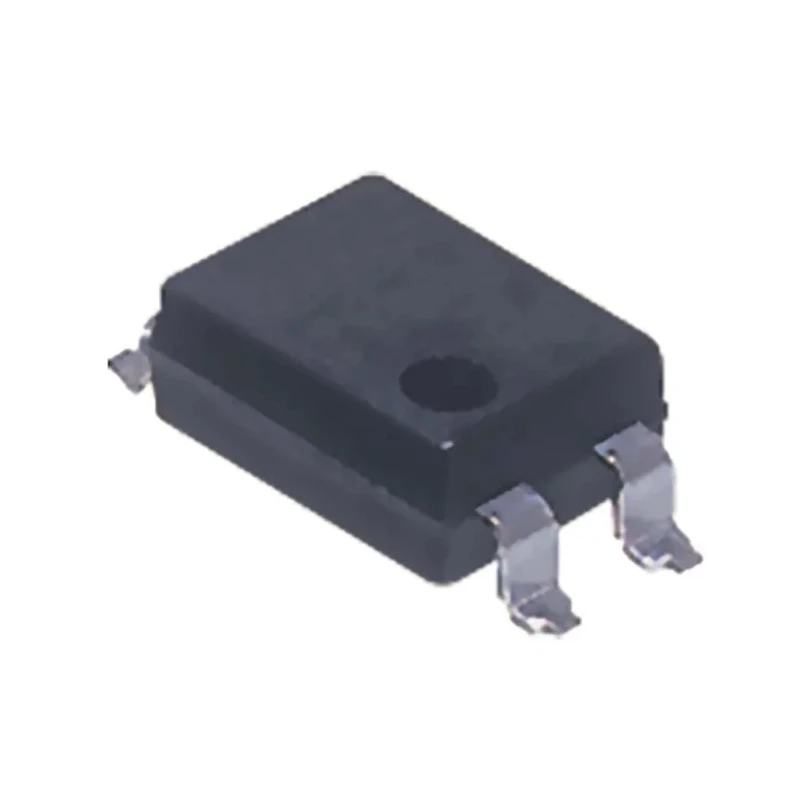

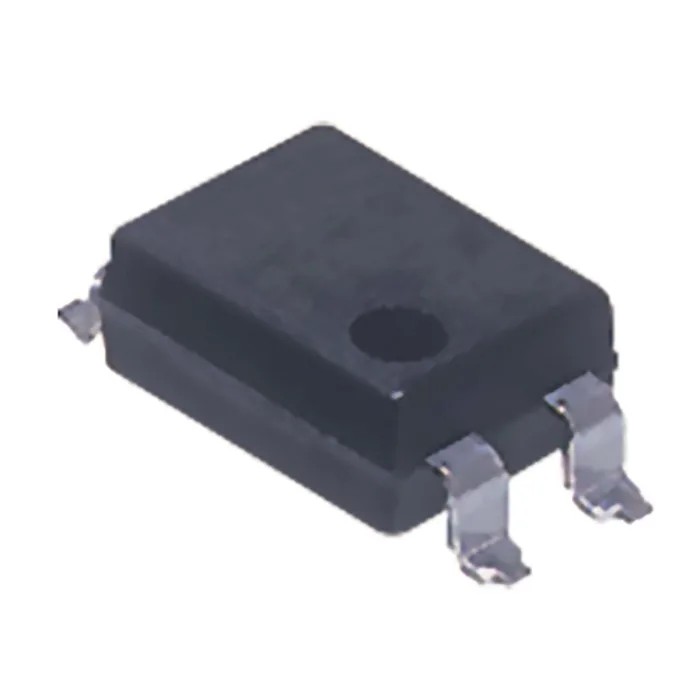

Panasonic PhotoMOS Series Solid State Relay, 3 A Load Current, Surface Mount, 30 V Load AQY211EHA

Panasonic AQY211EHA PhotoMOS Series Solid State Relay provides a reliable solution for controlling low-level analogue signals in industrial and electrical applications.

This surface mount relay supports a maximum load current of 3 A and can handle load voltages up to 30 V, making it suitable for precision switching tasks in automation, signal conditioning, and control systems.

Designed with reinforced insulation rated at 5000 V, it ensures enhanced safety by isolating input and output sections effectively. The relay uses a MOSFET output configuration that offers low on-state resistance of 0.5 ohms and an off-state leakage current limited to 1 μA, enabling efficient and low-loss switching.

With a compact form factor measuring 6.4 mm in length, 4.78 mm in width, and 2.9 mm in height, and a terminal type of through hole suitable for PCB mounting, it fits well in space-constrained designs.

The relay operates reliably within a temperature range of -40°C to 85°C, complying with RoHS standards to meet environmental regulations. Its SPST contact configuration and the ability to switch both AC and DC loads expands its versatility across various industrial, laboratory, and automation applications.

This relay is ideal for use in electrical circuits requiring low-level switching with high insulation reliability. Common applications include industrial automation, instrumentation, audio signal switching, and interface circuitry.

Its robust design and compliance with international standards make it a dependable choice for engineers and technicians. Explore the Panasonic range of Solid State Relays at EnvMart for high-quality electrical switching components.
