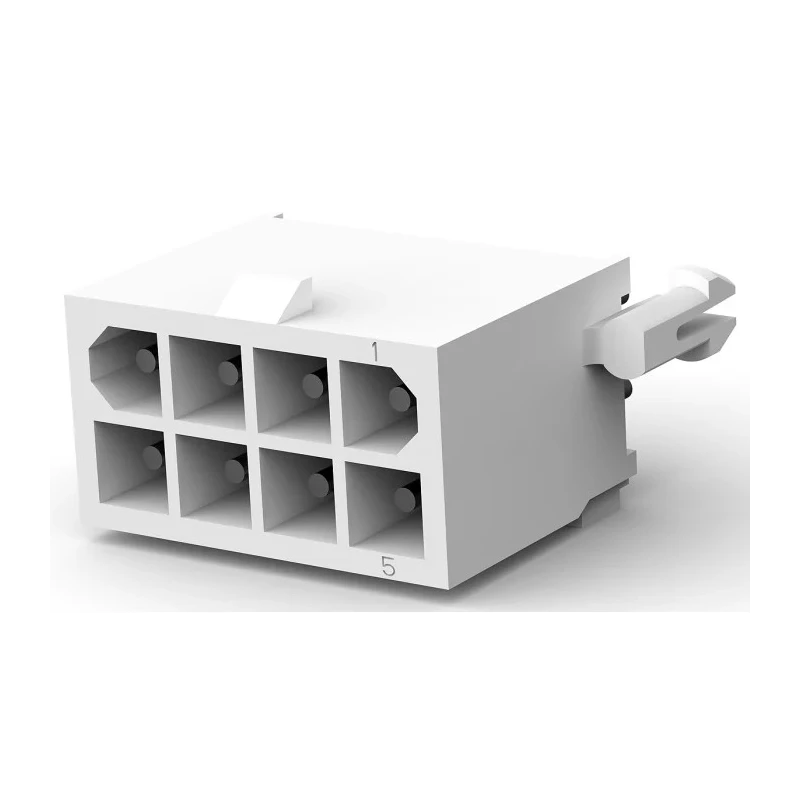

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header 8 Contacts 4.14 mm Pitch 2 Row 1-794065-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 4.14mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.69mm |
Key Features
- The connector features a shrouded, two-row design for secure mating.
- Constructed with a durable nylon housing rated UL94V-0 for fire resistance.
- Brass contacts are plated with tin to ensure reliable conductivity.
- It supports a current rating of 9.5A and voltage rating up to 600V.
- Suitable for through-hole mounting, providing robust mechanical stability.
- The pins have a 3.69 mm tail length, optimized for solder termination.
- Operating temperature range from -55°C to 105°C for harsh environment resilience.
Product Description
TE Connectivity 1-794065-0 Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header is a high-quality electrical connector designed for wire-to-board applications. This component features 8 male brass contacts plated with tin, arranged in 2 rows with a 4.14 mm pitch, ensuring consistent electrical performance and secure mating.
The connector's housing is made from white, flame retardant nylon (UL94V-0), providing excellent mechanical strength and safety compliance. It utilizes a shrouded design with a positive locking latch mechanism to ensure reliable connection and prevent accidental disengagement during operation.
With support for currents up to 9.5A and voltages up to 600V, this PCB header suits a range of industrial, manufacturing, and electronic equipment applications. Its through-hole mount type ensures durable PCB retention, beneficial for vibration-proof assemblies.
The 3.69 mm tail pins allow for secure solder termination, compatible with standard soldering processes. The connector performs reliably across a wide temperature range (-55°C to 105°C), making it adaptable to demanding environments including industrial control, telecommunications, and power supply systems.
Applications include usage in electronics components manufacturing, power connectors, and wire housing assemblies requiring dependable electrical connections. TE Connectivity’s Mini-Universal MATE-N-LOK connectors are widely recognized for their quality, safety, and versatility in electronic system design.
The connector features a shrouded, two-row design for secure mating. Constructed with durable flame retardant nylon housing. Brass contacts plated with tin for consistent conductivity. Supports 9.5A current and 600V voltage ratings.
Designed for through-hole mounting with 3.69 mm tail pins. Operates reliably from -55°C to 105°C temperature range. Positive locking latch ensures secure wire-to-board connection. Explore EnvMart's extensive range of TE Connectivity PCB connectors and wire housings to find components that meet your industrial and commercial application needs.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current rating of 9.5A and a voltage rating of up to 600V.
It features a pitch of 4.14 mm and has 8 male contacts arranged in 2 rows.
The housing is constructed from durable nylon, rated UL94V-0 for fire resistance.
The tail pins have a length of 3.69 mm, optimized for solder termination.
This model is designed for through-hole mounting, providing robust mechanical stability.
It operates reliably within a temperature range of -55°C to 105°C.
It utilizes a wire-to-board connection system, ensuring secure mating.
The contacts are made of brass and are plated with tin to ensure reliable conductivity.
Yes, it includes a positive locking latch mechanism to ensure a secure connection and prevent accidental disengagement.
The connector is manufactured in India.
