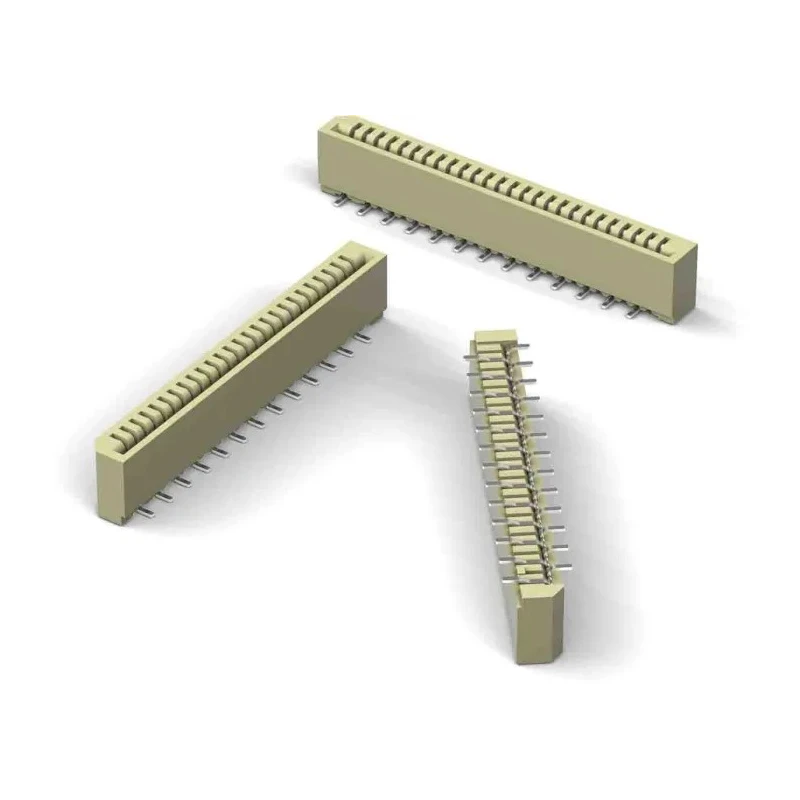

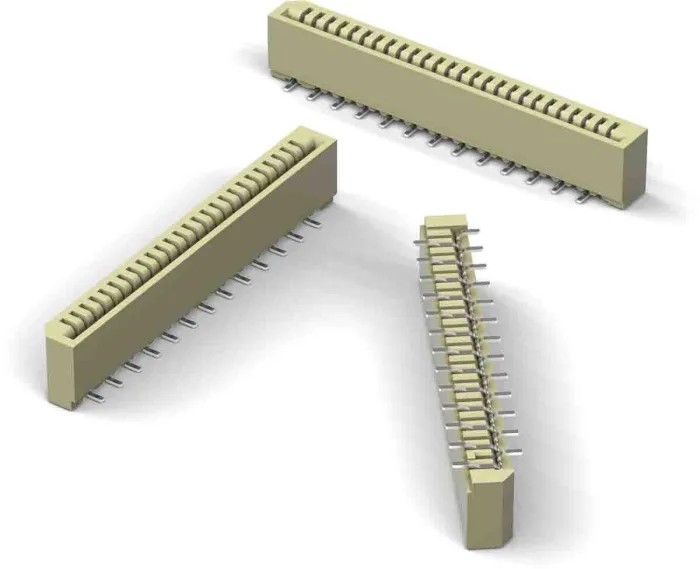

Wurth Elektronik WR-FPC Series Horizontal Surface PCB Header 8 Contacts 1 mm Pitch 1 Row Shrouded 686108188622
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125V |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Contact Type | Stamped |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 8 |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with Liquid Crystal Polymer housing for durability.
- Rated for 1 A current and 125 V operating voltage.
- Shrouded horizontal orientation for secure connections.
- Phosphor Bronze contacts plated with tin over nickel for corrosion resistance.
- Supports solder termination type for surface mounting.
- Operates reliably between -25°C and 85°C.
- Compliant with RoHS standards ensuring environmental safety.
- Contact resistance is low, ensuring effective signal transmission.
Product Description
Wurth Elektronik model 686108188622 is a Horizontal Surface Mount PCB Header from the WR-FPC Series, designed for high reliability in electronic component connections. Featuring 8 contacts arranged in a single row with a 1 mm pitch, this component is shrouded to protect the contacts and enhance secure mating.
The housing is made from high-quality Liquid Crystal Polymer, offering excellent thermal stability and mechanical robustness. The contacts use phosphor bronze material with tin plating over nickel, providing low contact resistance and excellent corrosion resistance, suitable for demanding industrial applications.
This PCB header supports a current capacity of 1 A and an operating voltage of 125 V AC, making it ideal for low-power electronic assemblies. The horizontal orientation and surface mount configuration facilitate efficient PCB layout in compact designs.
The component operates reliably within a temperature range from -25°C to 85°C and complies with RoHS standards, ensuring environmental compliance and safe usage in electronic manufacturing.
Its termination type is solder, and the connector system is designed for wire-to-board integration, making it well-suited for electronics manufacturing, industrial controls, embedded systems, and communication equipment.
Constructed with Liquid Crystal Polymer housing for durability. Rated for 1 A current and 125 V operating voltage. Shrouded horizontal orientation for secure connections. Phosphor Bronze contacts plated with tin over nickel for corrosion resistance.
Supports solder termination type for surface mounting. Operates reliably between -25°C and 85°C. Compliant with RoHS standards ensuring environmental safety. Contact resistance is low, ensuring effective signal transmission.
Designed for wire-to-board connector system applications.
This PCB Header is ideal for electronic manufacturing environments requiring high precision and reliable interconnections. Explore more WR-FPC Series connectors and components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 1 A and an operating voltage of 125 V.
The housing is constructed from Liquid Crystal Polymer, which provides excellent thermal stability and mechanical robustness.
It features 8 contacts arranged in a single row with a 1 mm pitch.
It operates reliably within a temperature range from -25°C to 85°C.
Yes, it complies with RoHS standards, ensuring environmental safety.
This unit supports a solder termination type, suitable for surface mounting.
The header is designed with a shrouded horizontal orientation for secure connections.
It is designed for a wire-to-board connector system, making it suitable for various electronic applications.
The contacts are made from phosphor bronze and are plated with tin over nickel for corrosion resistance.
This model uses stamped contacts, which contribute to its low contact resistance.
The country of origin for this product is China.
It is well-suited for electronic manufacturing environments, industrial controls, embedded systems, and communication equipment.
