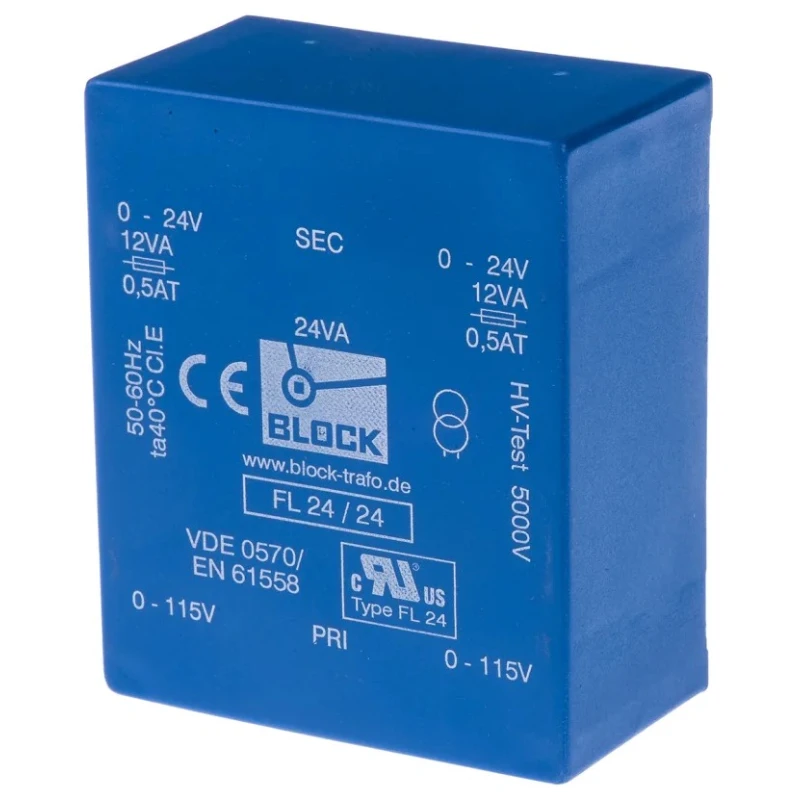

Block PCB Transformer Dual Secondary 24 V AC 2 Output Pin, 115/230 V AC Primary, 24 VA Power, FL 24/24

Block FL 24/24 is a high-quality PCB transformer designed for industrial and electronic equipment use. It features dual secondary windings that output 24 V AC each, supporting two output pins for versatile applications. The transformer accepts a primary voltage input of 115 or 230 V AC with a power rating of 24 VA, making it suitable for power supplies requiring moderate power handling.

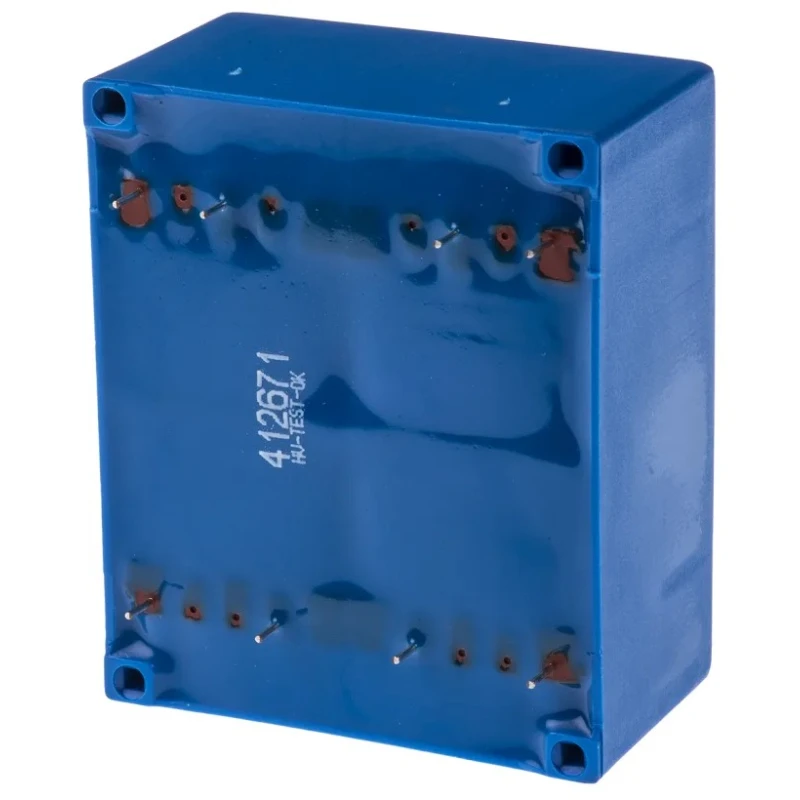

This transformer adopts a low profile and compact design optimizing PCB real estate. It utilizes a pin mount type for stable and secure installation on printed circuit boards. The core and windings are housed in vacuum epoxy resin formulated to meet UL94-V0 standards, ensuring flame retardancy and robustness in various operating conditions.

Further enhancing durability, the bobbins are made from double section glass fibre reinforced polyamide, providing mechanical strength and insulation stability. The device is 100% electrically and flash tested, guaranteeing reliability and consistent performance. Its high isolation voltage of 5000 V protects sensitive circuitry from electrical surges and interference.

Operating performance accommodates temperatures up to 40°C and frequencies ranging from 50 to 60 Hz. The transformer adheres to multiple international safety and quality standards, including VDE 0570 Teil 2-4, IEC 61558-2-1, and UL 94 V-0, ensuring compatibility with global industrial needs.

Measuring 68 mm in length, 31.4 mm in width, and 57 mm in depth, this transformer is compact and efficient for space-constrained designs. It is manufactured in Germany, reflecting high engineering and production standards. This product is ideal for application in electronic component assemblies, power supply units, HVAC controls, industrial machinery, laboratory equipment, and commercial electronics.

Equipped with 2 outputs operating at 24 V AC for versatile power requirements. Twin 115 V AC 50 to 60 Hz primary windings compatible with series or parallel connection. Low profile compact design suitable for PCB mounting with pin mount type.

Encapsulated in vacuum epoxy resin complying with UL94-V0 fire retardant standards. Constructed with double section glass fibre reinforced polyamide bobbins for durability. High isolation voltage rating of 5000 V ensures electrical safety.

Operating temperature up to 40°C suitable for demanding industrial environments. Conforms to multiple standards including VDE 0570 Teil 2-4 and IEC 61558-2-1. Compact dimensions of 68 mm length, 31.4 mm width, and 57 mm depth.
