TDK Wirewound Surface Mount Inductor with Ferrite Core 4.7 μH ±20 % 4.3 A Idc 10.4x10.4x4.8mm B82464A4472M000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 4.8mm |
| Length | 10.4mm |
| Model | B82464A4472M000 |
| Depth | 10.4mm |
| Packaging | Tape & Reel |
| Series | B82462-A4 |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 4.3A |
| Pin Count | 2 |
| Maximum DC Resistance | 18mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 42MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features

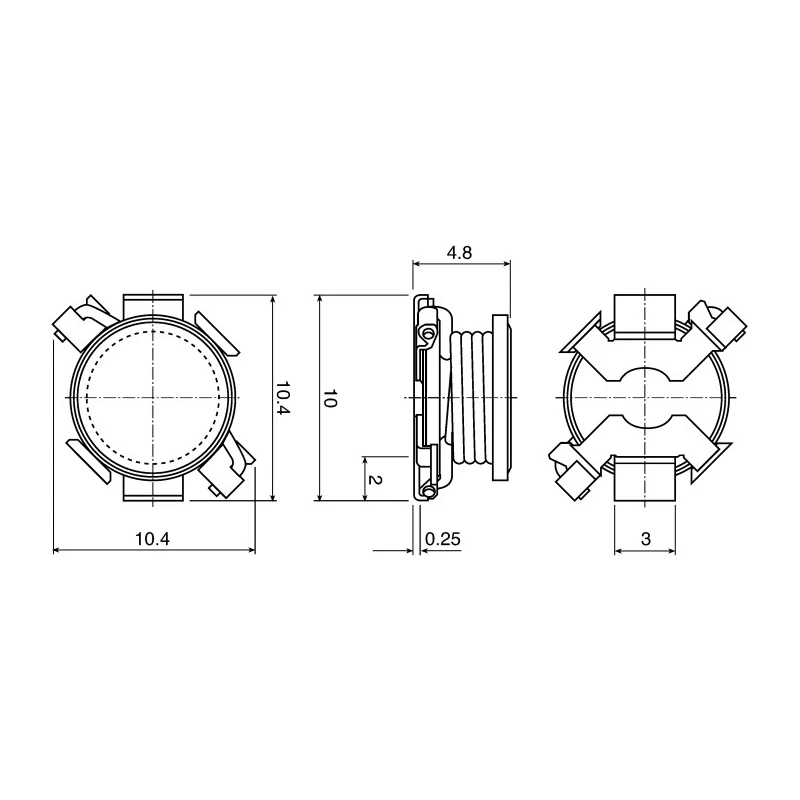

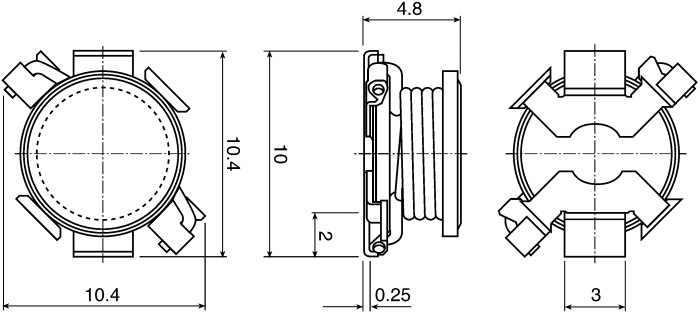

- The inductor features a compact size of 10.4 mm length, 10.4 mm depth, and 4.8 mm height.
- It possesses an inductance tolerance of ±20 % and a maximum DC resistance of 18 mΩ.
- The construction includes a ferrite core and wirewound design to ensure reliability and performance.
- It operates reliably from -55°C up to a maximum temperature of 150°C.
- Packaging is provided as tape and reel, facilitating efficient automated assembly.
- The product complies with RoHS standards and meets the AEC-Q200 automotive standard.
- The maximum self resonant frequency is 42 MHz, suitable for filtering power supplies and other electronic applications.
- It has 2 pins and solder termination style for surface mounting.
Product Description
TDK B82464A4472M000 is a high-quality wirewound surface mount inductor featuring a ferrite core. This inductor provides an inductance of 4.7 μH with a tolerance of ±20 % and supports a maximum DC current of 4.3 A Idc, making it suitable for various industrial and electronic applications.
Its compact dimensions of 10.4 mm length, 10.4 mm depth, and 4.8 mm height allow for integration into densely packed PCBs, while the solder termination style enables secure surface mounting. The component is moulded, enhancing durability and reliability.
Designed to withstand a wide operating temperature range from -55°C to 150°C, this inductor is compliant with RoHS standards and meets the AEC-Q200 automotive qualification, ensuring quality and environmental compliance. Its low DC resistance of 18 mΩ minimizes power loss, and the maximum self resonant frequency of 42 MHz makes it excellent for filtering and power supply applications.
The device is supplied on tape and reel packaging, optimizing it for automated manufacturing processes. Its two-pin configuration and unshielded construction are intended for applications requiring wirewound type inductors with ferrite cores.
Common industrial uses include power filtering, signal conditioning in automotive, telecommunications, and consumer electronics equipment. The robustness, temperature tolerance, and electrical specifications make it ideal for demanding environments in electronics manufacturing and assembly.
The inductor features a compact size ideal for surface mount technology. High rated current capacity supports demanding power supply filters. Automotive AEC-Q200 standard ensures automotive-grade reliability. Low DC resistance enhances energy efficiency and thermal performance.
RoHS compliance supports environmentally-friendly manufacturing. Explore more Surface Mount Inductors and electronic components on EnvMart to suit your industrial, manufacturing, and design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 4.7 μH with a tolerance of ±20%.
It can support a maximum DC current of 4.3 A.
The dimensions are 10.4 mm in length, 10.4 mm in depth, and 4.8 mm in height.
The maximum operating temperature is 150°C.
It features a ferrite core, which is typical for wirewound inductors.
It is packaged on tape and reel, which facilitates automated assembly processes.
The maximum self-resonant frequency is 42 MHz, suitable for filtering applications.
The maximum DC resistance is 18 mΩ, which helps minimize power loss.
It complies with RoHS standards and meets the AEC-Q200 automotive standard.
This inductor has 2 pins, designed for surface mounting.
It features a wirewound construction, enhancing its performance and reliability.
Common applications include power filtering and signal conditioning in automotive, telecommunications, and consumer electronics.
