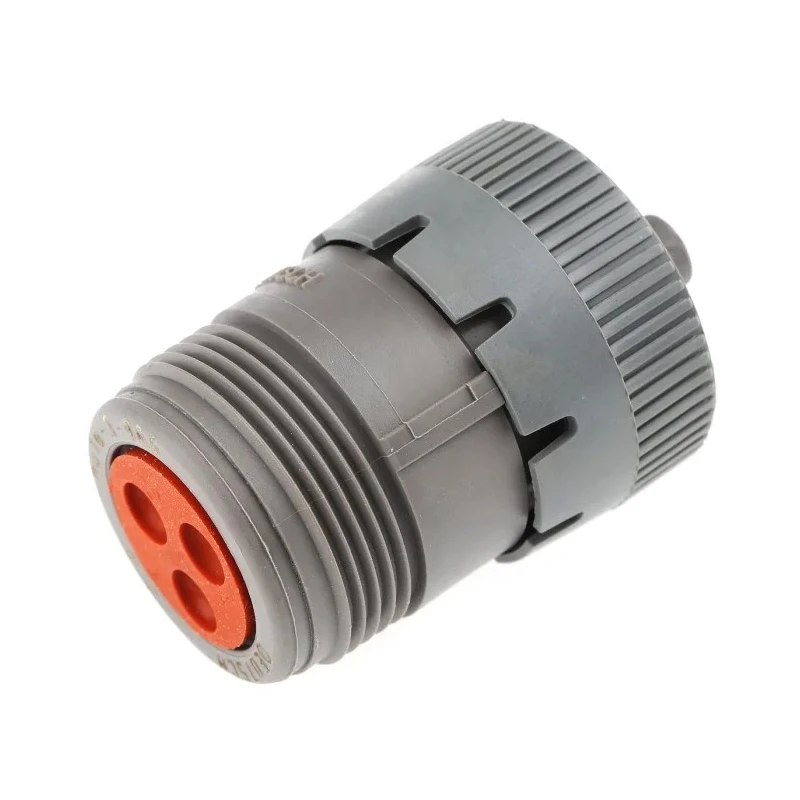

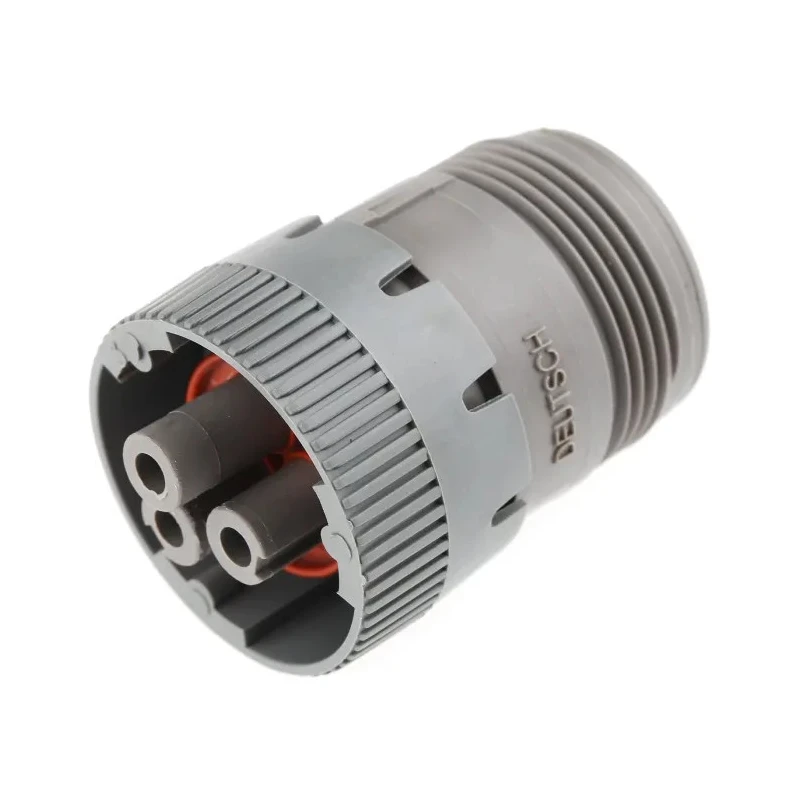

Deutsch HD10 Series Circular Connector, 3 Contacts Cable Mount, Plug Female IP67 27.15 mm HD16-3-96S
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Deutsch |
| Orientation | Straight |
| Current | 13A |
| Model | HD16-3-96S |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | HD10 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 3 |
| Contact Plating | Nickel |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | 3 |
| Mating Type | Push Pull |
| Connector Size | 27.15 mm |
| Plug/Socket | Plug |
Key Features
- Features a reliable cable mount plug with female contact arrangement for precise mating.
- Provides IP67 ingress protection for challenging industrial environments.
- Supports 3 contacts with a current capacity up to 13A for heavy duty connections.
- Constructed from durable thermoplastic housing with nickel-plated copper contacts.
- Operates across a wide temperature range from -55°C to 125°C.
- Utilizes crimp termination, suitable for vibration-prone and sealed installations.
- Part of the HD10 Series, proven for corrosion resistance and minimum 100 mating cycles.
- Designed for straightforward push-pull mating in industrial, transportation, and automation applications.
Product Description
The Deutsch HD16-3-96S is an industrial-grade circular connector from the HD10 Series, engineered for cable mounting in demanding environments. With a 3-contact configuration in plug, female form factor, this connector provides robust and reliable connectivity for applications requiring secure electrical transmission.
This connector utilizes a thermoplastic housing, known for durability and resistance to industrial contaminants and mechanical stress. The nickel-plated copper contacts ensure stable electrical conductivity and protection against corrosion, making it suitable for long service life in harsh conditions.
Sealed to IP67, the HD16-3-96S offers outstanding ingress protection, safeguarding internal connections from water, dust, and moisture. Its shell size of 27.15 mm and straight orientation make installation efficient and maximize compatibility with existing cable systems.
Supporting up to 13A of current, the three-contact arrangement is ideal for heavy duty power and signal applications. Crimp termination provides vibration-proof interconnections and is recommended in environments with frequent movement and exposure to elements. Minimum and maximum operating temperatures range from -55°C to 125°C, broadening the connector's suitability across industries including manufacturing, transportation, process control, and automation.
Featuring push-pull mating and a durable HD10 design, this connector can accommodate minimum 100 mating cycles and withstand vibration up to 20g's at 10 - 2000Hz. Its corrosion resistance has been validated through salt spray to MIL STD 1344 standards.
Typical industrial use cases include secure cable connections in control cabinets, wiring harnesses, machinery, vehicle electrical systems, water treatment plants, and any setting requiring heavy duty connection performance and environmental sealing.
Browse more industrial circular connectors from Deutsch and leading brands in the Industrial Circular Connector category on EnvMart for broad compatibility and tailored technical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current capacity of up to 13A, making it suitable for heavy duty power and signal applications.
The Deutsch HD16-3-96S has an IP67 rating, providing excellent ingress protection against water and dust.
It features a thermoplastic housing and nickel-plated copper contacts, ensuring durability and stable electrical conductivity.
The operating temperature range for the HD16-3-96S is from -55°C to 125°C, allowing for use in various environments.
This model has a 3-contact configuration in a female plug arrangement.
It utilizes crimp termination, which is suitable for vibration-prone and sealed installations.
The shell size of the Deutsch HD16-3-96S is 27.15 mm, facilitating efficient installation and compatibility.
The connector features a push-pull mating design, allowing for straightforward connection and disconnection.
This connector is suitable for industrial, transportation, and automation applications requiring secure electrical connections.
The HD16-3-96S can withstand vibrations up to 20g's at frequencies ranging from 10 to 2000Hz.
It is designed for a minimum of 100 mating cycles, ensuring longevity in use.
The connector is manufactured in Mexico, contributing to its industrial-grade quality.
