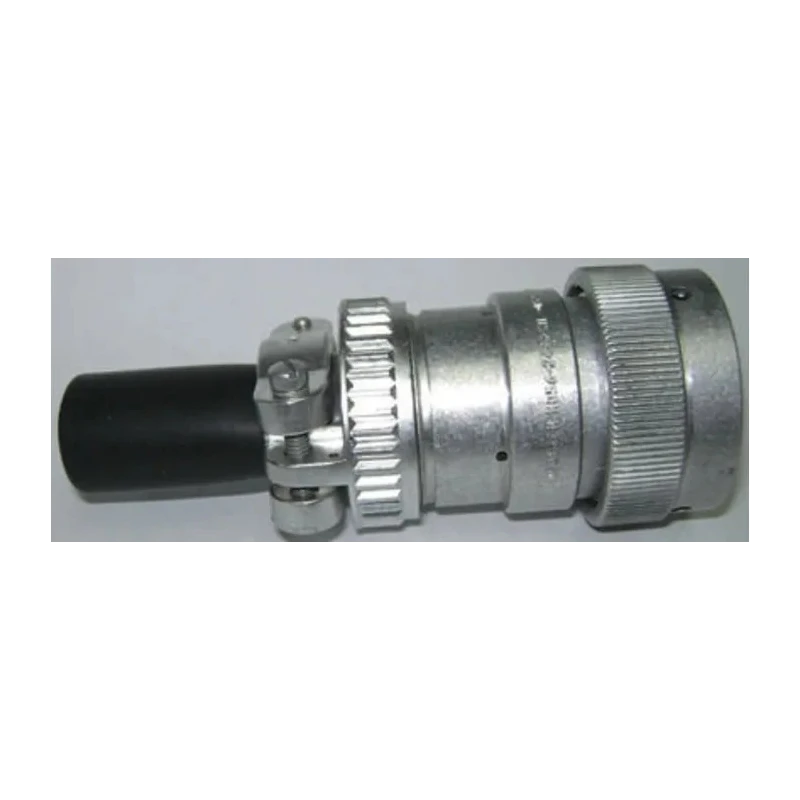

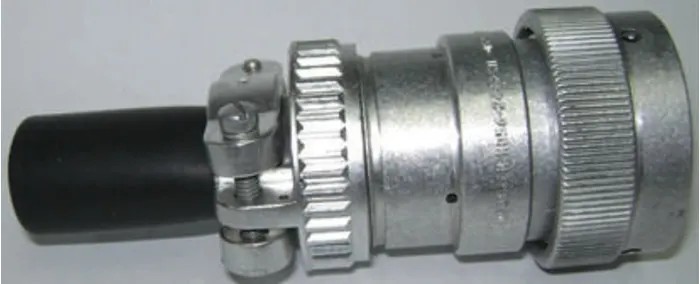

Deutsch Industrial Circular Connector, Cable Mount, 47 Contacts, 1.59 mm, Plug, Male, IP67, Bayonet HD36-24-47PE-059

The Deutsch HD36-24-47PE-059 Industrial Circular Connector is designed for demanding applications requiring high-density connections and superior environmental resistance. Featuring 47 contacts within a compact cable-mount form factor, this plug is ideal for integration into power, signal, and control circuits across industrial, automotive, and heavy equipment sectors.

The connector utilizes a bayonet coupling mechanism, ensuring quick, reliable mating and minimal assembly time. With an IP67 rating, it offers substantial protection against dust and water ingress, making it suitable for outdoor installations, manufacturing lines, and specialty vehicles. Its housing is constructed from corrosion-resistant aluminium, maintaining mechanical integrity and supporting operation in harsh or exposed environments.

Each contact is fabricated from copper and plated with nickel, providing exceptional conductivity and resilience to oxidizing agents. The connector accommodates up to 13A per contact at 250V, supporting demanding electrical frameworks and power distribution. Crimp termination enables robust assembly and strain relief, while the straight orientation simplifies cable routing and integration.

Operational reliability is certified across temperatures from -55°C to +125°C, covering both extreme cold and high-heat industrial scenarios. The shell size of 24 and cable clamp arrangement ensure compatibility with a range of cabling solutions. Suitable applications include industrial automation, transportation, marine, heavy-duty machinery, and energy sectors where vibration, moisture, or corrosive atmospheres are encountered.

Additional properties such as a minimum of 100 mating cycles and vibration resistance up to 20g at 10 - 2000 Hz underline the connector's longevity. Used in manufacturing, construction, automation, and field service, it serves critical wiring junctions requiring durability, reliability, and ease of maintenance.

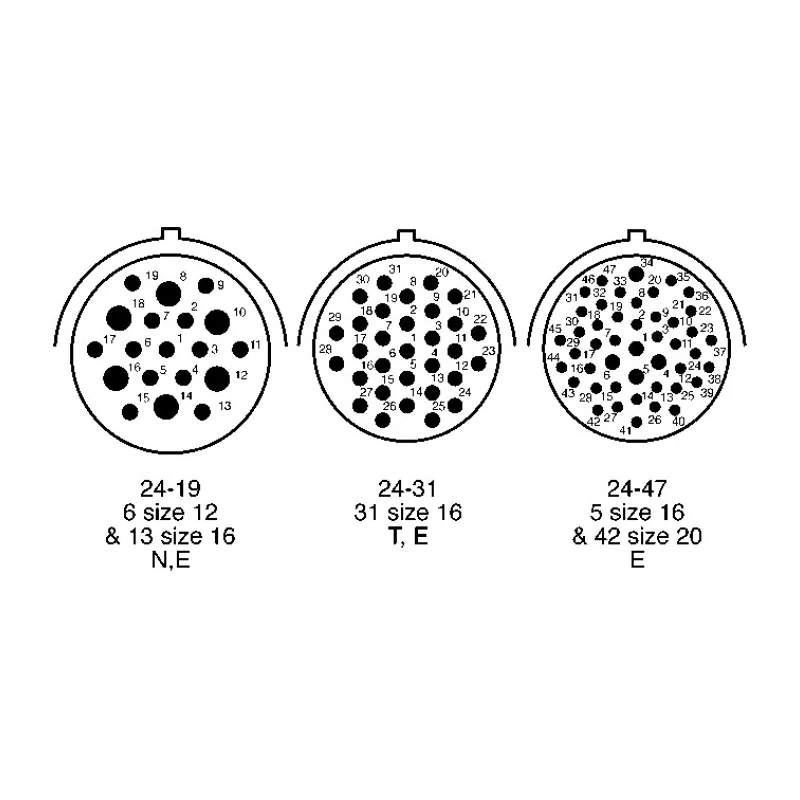

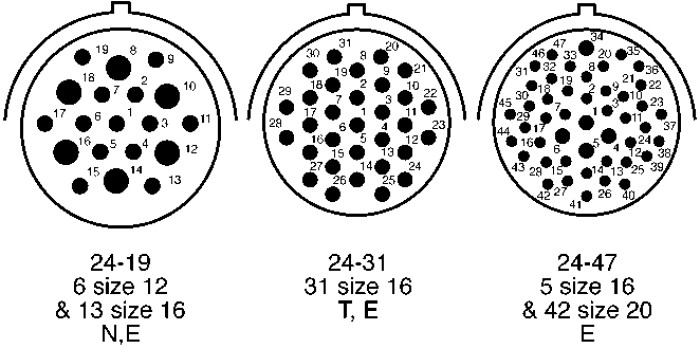

47 high-density contacts ensure extensive signal or power connectivity. IP67 environmental rating makes it optimal for wet, dusty, or outdoor installations. Aluminium shell and nickel-plated copper contacts enhance corrosion resistance.

Crimp termination supports secure cable assembly and robust strain relief. Bayonet coupling facilitates fast and secure connector engagement. Wide operating temperature range suits varied industrial climates and environments.

Vibration and salt spray resistance increase service life in demanding locations. Ideal for automation, transportation, marine, and heavy equipment wiring.

To explore more connectors or other Deutsch industrial wiring solutions, browse the Electronics Components category or search for different contact formats within the HD30 Series at EnvMart.
