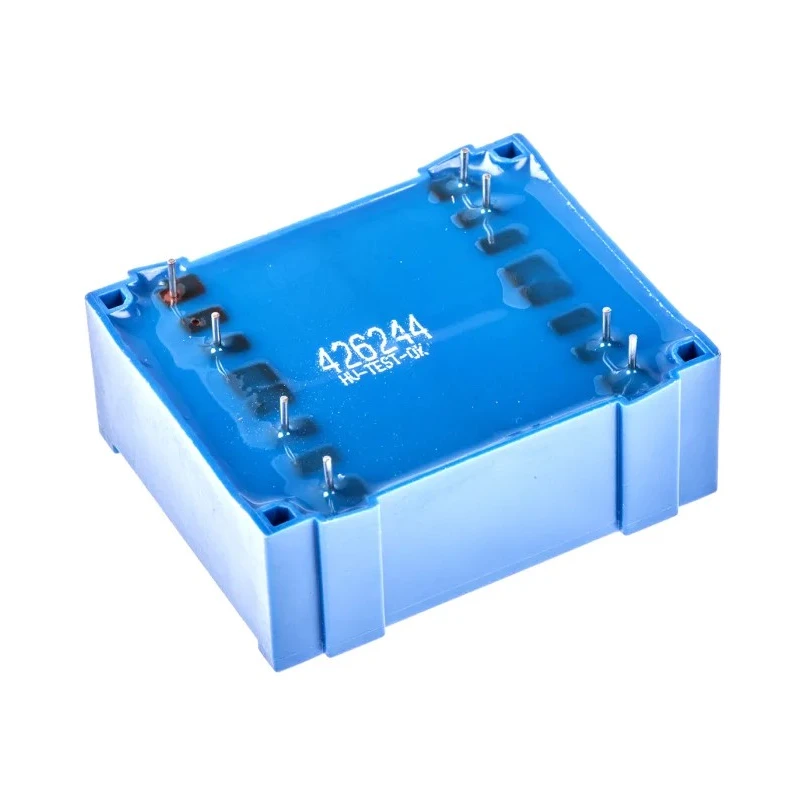

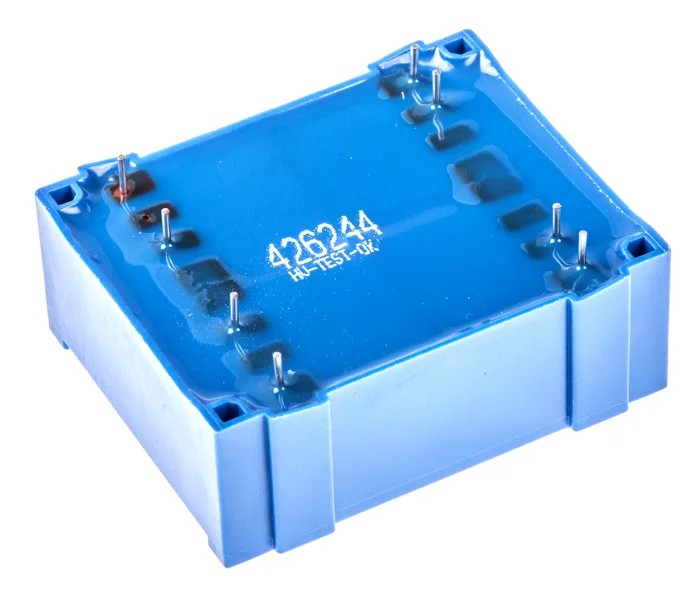

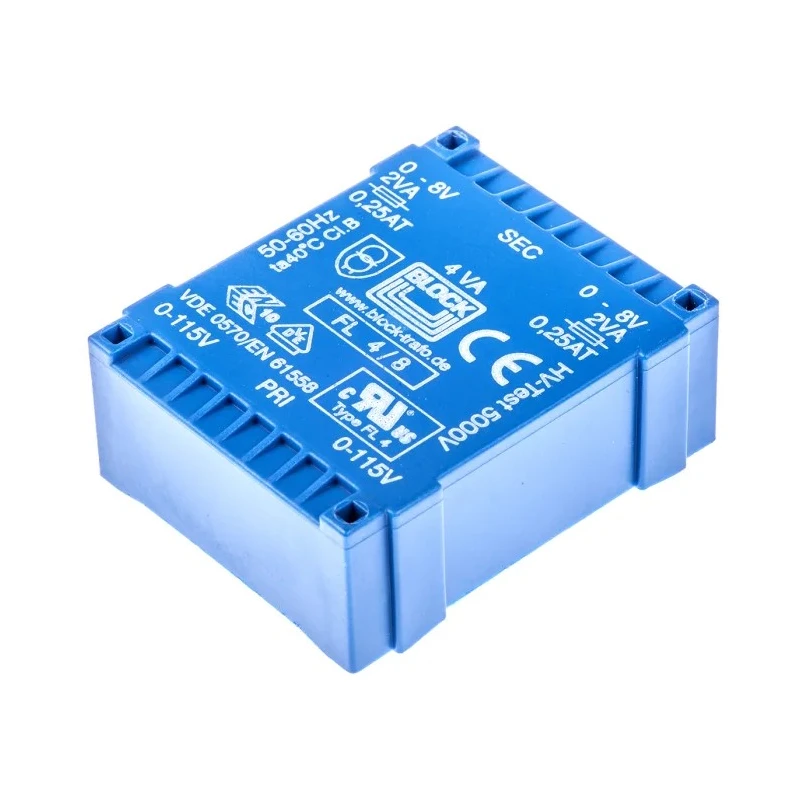

Block PCB Transformer Dual Secondary 8 V AC 2 Output Pin, 115/230 V AC, 4 VA, IEC 61558-2-4 FL 4/8

Block FL 4/8 PCB Transformer is a high-quality dual secondary transformer providing 8 V AC output across 2 pins, engineered for robust printed circuit board applications. It supports primary voltages of both 115 V AC and 230 V AC, making it adaptable to various power supply configurations.

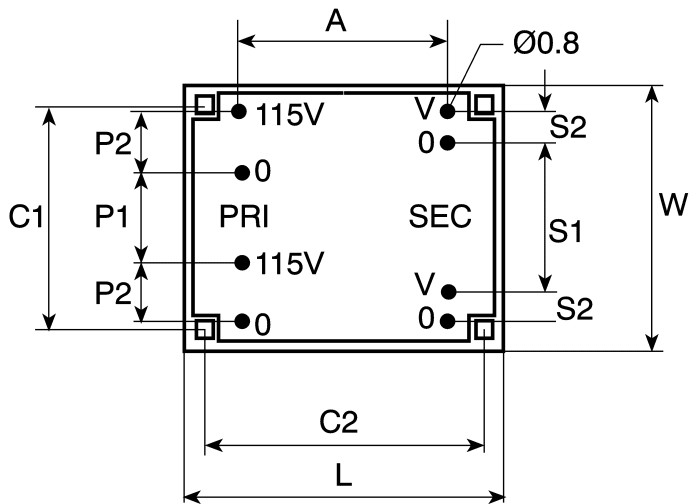

This transformer features a low profile and compact dimensions of 53mm in length, 19.6mm in width, and 44mm depth, designed to save PCB space and enable easy placement in electronic assemblies. The rated power capacity is 4 VA, suitable for low power signal and control circuits.

It employs vacuum epoxy resin molding to UL94-V0 flame retardant standards, ensuring safety and durability under electrical stress. The windings are built on double section glass fibre reinforced polyamide bobbins that enhance mechanical durability and reduce electrical interference.

The device provides a high isolation voltage of 5000 V, ensuring operational safety and protection for sensitive electronics. The operating temperature is rated up to 40°C and supports an operating frequency range between 50 Hz and 60 Hz, suitable for typical industrial and laboratory setups.

Standards compliance includes IEC 61558-2-4, IEC 61558-2-1, VDE 0570 Teil 2-4, DIN EN 61558-2-4, and C-UL-US certifications, underscoring its reliability and adherence to international quality. Additional features include low inter-winding capacitance and low radiated noise, which improve overall circuit performance.

The transformer is manufactured in Germany, assuring quality manufacturing processes and material standards. Its pin-type mounting allows for straightforward and secure attachment to the PCB, augmented with extra fixing holes for enhanced stability in heavy-duty uses.

This product suits applications in electronics manufacturing, industrial control systems, laboratory instruments, and power supply units where reliable and compact PCB transformers are required. It supports series or parallel connection of its twin windings for flexible electrical configurations.

Block PCB Transformers are well-regarded for their robust construction and conformity to stringent standards, providing engineers confidence in deploying them for demanding electronic designs and maintenance applications.

Explore EnvMart's extensive range of high-quality PCB Transformers and components for your electronic assembly and power supply needs. Compatible with 115 V AC and 230 V AC primary voltages for versatile use. Low profile and compact size measuring 53mm x 19.6mm x 44mm for easy PCB integration.

Rated power of 4 VA with dual secondary windings for series or parallel connection. High isolation voltage of 5000 V ensuring operational safety. Moulded with vacuum epoxy resin rated UL94-V0 for flame retardance. Glass fibre reinforced polyamide bobbins increase mechanical strength.

Designed for maximum operating temperature of 40°C and frequency range of 50Hz to 60Hz. Compliant with multiple standards including IEC, VDE, DIN, and c-UL-US approvals. Manufactured in Germany with 980 g gross weight assuring quality.

Mounting type uses pin connection optimized for compact PCB designs.
