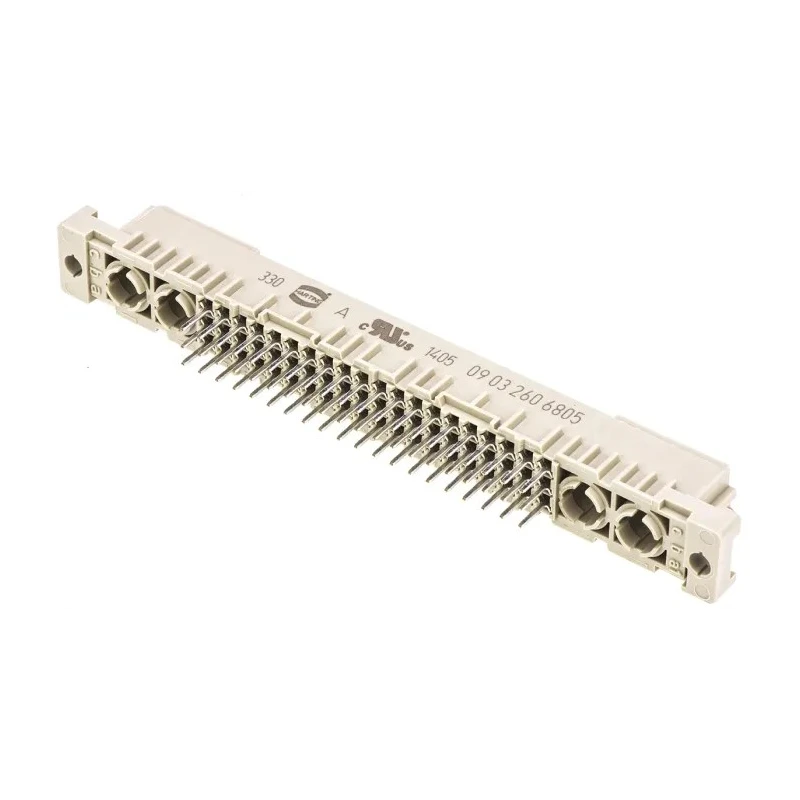

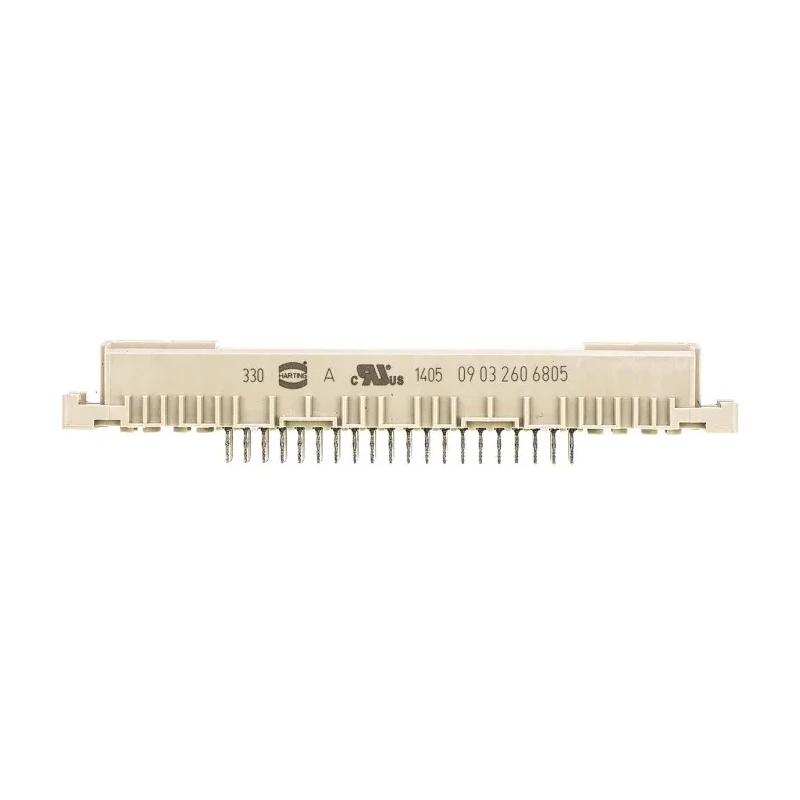

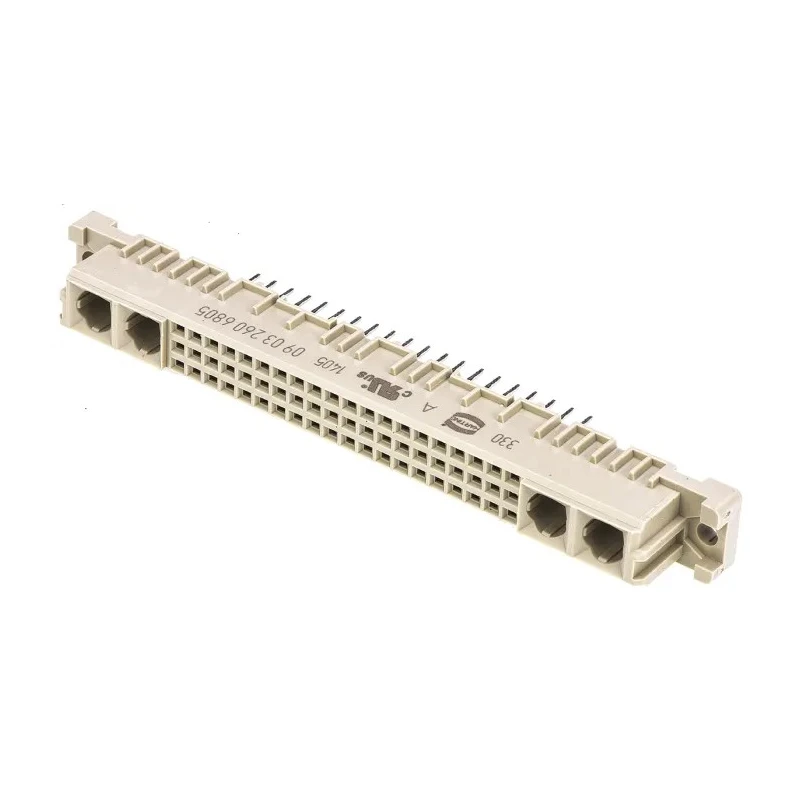

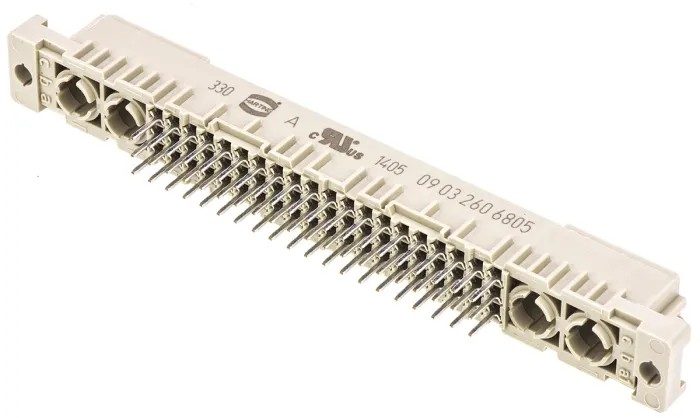

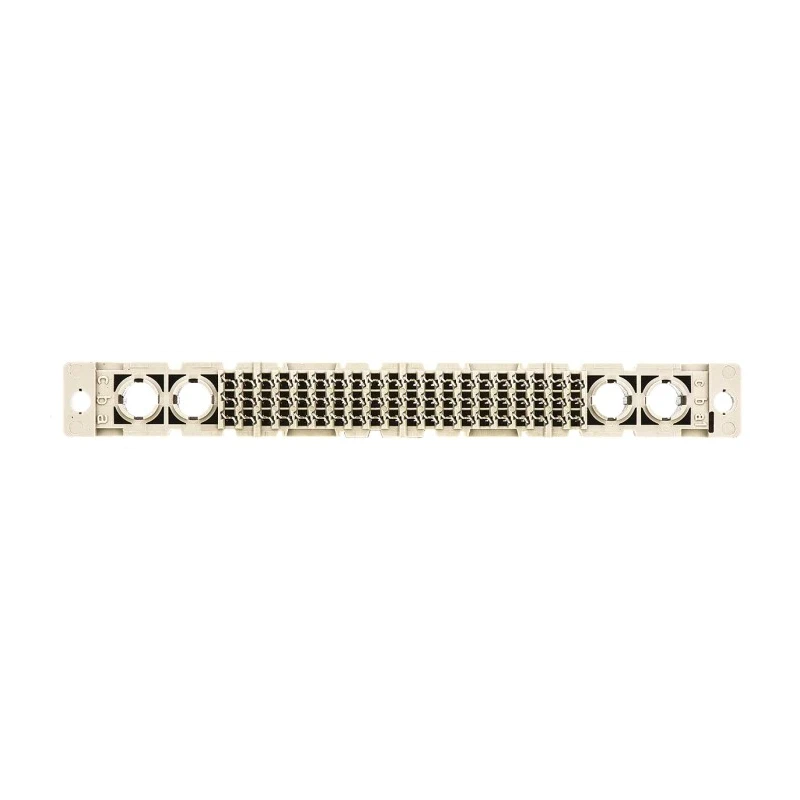

HARTING DIN 41612 64 Way 2.54 mm Pitch Type Through Hole Type C/2 Solder Class C2 3 Row Female Straight 09032606805

HARTING 09032606805 DIN 41612 Connector is a 64-way, 2.54 mm pitch, female connector designed with through hole mount and a straight orientation for reliable PCB connection. It belongs to the type C/2 solder termination class C2, arranged in 3 rows (A/B/C) to support dense and efficient circuit connections.

This connector features gold-over-nickel plating on copper alloy contacts to ensure low contact resistance (max 20mΩ) and long-lasting conductivity. Its housing is constructed from high-quality polybutylene terephthalate, providing excellent mechanical strength, electrical insulation, and thermal stability.

Rated for operation between -55°C and 125°C, this component meets rigorous DIN 41612 standards and IEC 60 603-2 Level 2 performance, making it suitable for demanding industrial and communications applications. It is designed for plug-in card connections, backplane interfaces, and module interconnection in 19-inch Eurocard sub-rack systems.

Typical applications include telecommunications infrastructure, data communication equipment, measurement devices, and control systems, where dependable and standardized connectors are required. The female connector format ensures compatibility with male DIN 41612 connectors for secure and efficient electrical connections.

Provides 64 contacts in a 3-row arrangement for high-density connections. Through hole mount ensures robust physical and electrical connection to PCBs. Gold over nickel contact plating resists corrosion and enhances signal integrity.

Wide operating temperature range adapts to harsh industrial environments. Durable housing material with excellent electrical insulation properties. Certified compliance with DIN 41612 and IEC standards for quality assurance.

Ideal for use in telecommunications, data communication, and control equipment. Supports modular rack and backplane connectivity in industrial settings. Explore more components like this in the DIN 41612 Connectors category on EnvMart to find complementary products for your electronic assemblies.
