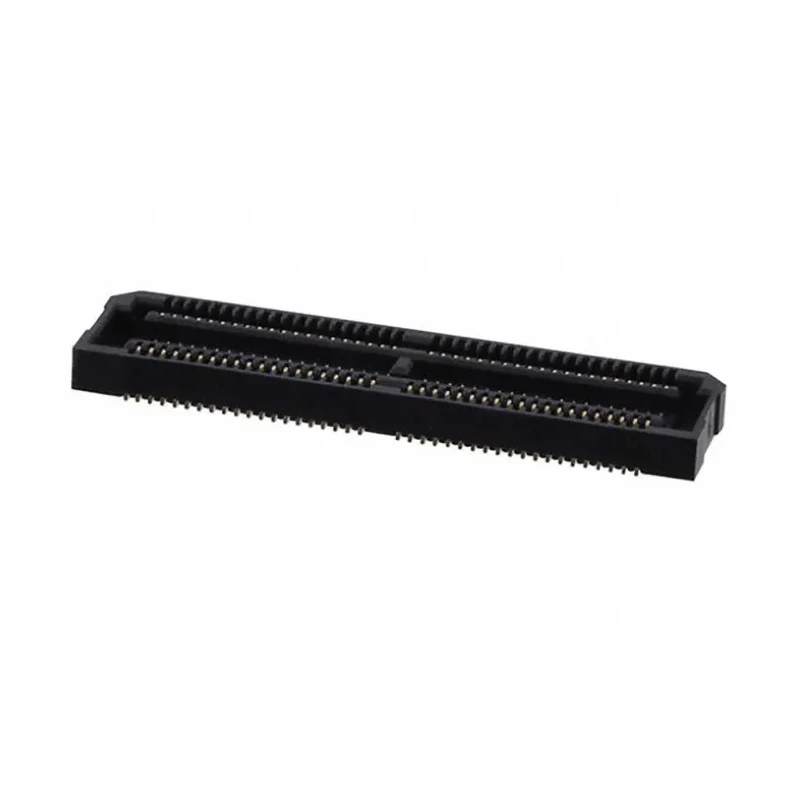

Samtec Low Profile Blade and Beam 0.55 mm Pitch Board-to-Board Straight Surface Mount PCB Socket 2 Row 2.6A LTH-040-01-G-D-A

Name: Samtec Low Profile Blade and Beam 0.55 mm Pitch Board-to-Board Straight Surface Mount PCB Socket 2 Row 2.6A LTH-040-01-G-D-A
Brand: Samtec
SKU: 163237
Price: 6.01 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	266V
Brand	Samtec
Orientation	Straight
Current	2.6A
Model	LTH-040-01-G-D-A
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Alloy
Series	LTH
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Blade and Beam
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.55mm
Standards/Approvals	RoHS
Contact Plating	Gold
Contact Gender	Female
Connector System	Board-to-Board
Stacking Height	2.31mm
Row Pitch	2.54mm

Key Features

The socket features blade and beam contact technology for reliable electrical connection.
It supports a maximum current rating of 2.6 amperes with a voltage rating of 266 volts.
The housing is constructed from liquid crystal polymer for high durability.
Gold-plated beryllium copper alloy contacts ensure excellent conductivity and corrosion resistance.
The connector has a stacking height of 2.31 mm to maintain a compact profile.
Operating temperature range extends from -55°C to 125°C for versatile environmental tolerance.
Designed with a 2.54 mm row pitch and female contact gender.
Termination is via soldering, suitable for surface mount technology (SMT) PCB assembly.

Product Description

Samtec LTH-040-01-G-D-A is a low profile, blade and beam 2 row PCB socket designed for straight surface mount board-to-board applications. It features a compact 0.55 mm pitch with a stacking height of 2.31 mm, making it suitable for space-constrained electronic assemblies requiring reliable connections.

The housing is made from liquid crystal polymer, providing excellent mechanical properties and stability under thermal stress. The socket uses female contacts fabricated from beryllium copper alloy with gold plating to ensure high conductivity and corrosion resistance.

This PCB socket supports a current rating of 2.6 amperes and is rated for 266 volts, offering reliable electrical performance in various operating environments. It functions effectively across a wide temperature range from -55°C to 125°C, facilitating usage in demanding industrial and commercial applications.

The product terminates through soldering, tailored for surface mount technology assembly processes. The connector's design includes a 2.54 mm row pitch and complies with RoHS directives, ensuring environmental safety and regulatory compliance.

The socket provides a compact and low-profile solution for board-to-board connectivity. Blade and beam contact design ensures dependable electrical and mechanical connection. Durable liquid crystal polymer housing supports mechanical stability.

Gold-plated beryllium copper contacts enhance corrosion resistance and electrical conductivity. Wide operating temperature range supports harsh environment applications. Surface mount termination enables modern PCB assembly techniques.

Compliance with RoHS ensures environmental safety standards. Ideal for integration into industrial, electronic component manufacturing, and commercial PCB assemblies.
