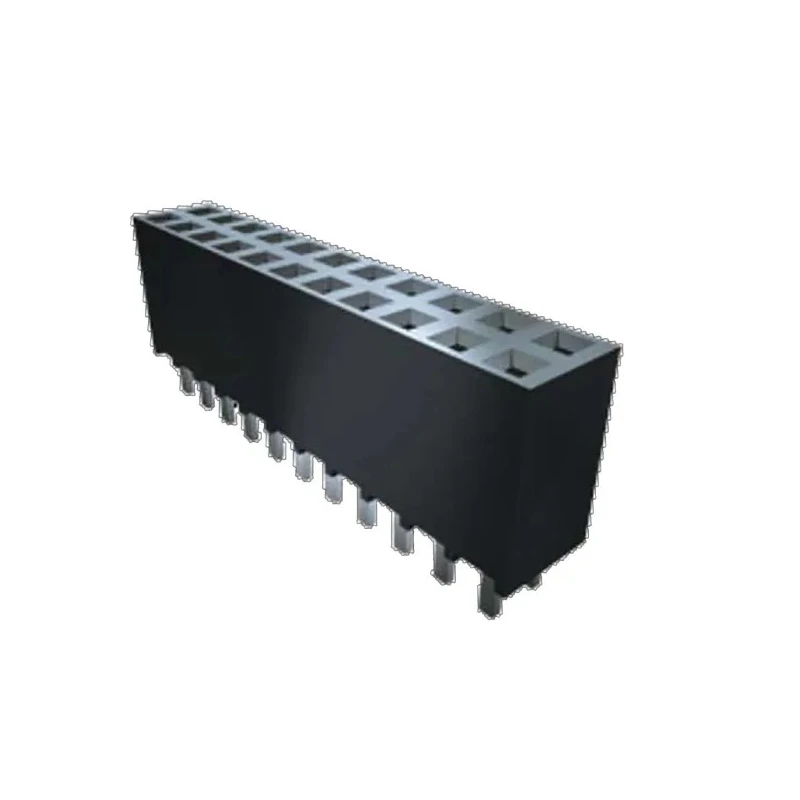

Samtec SSW Series Straight Through Hole PCB Socket, 32-Contact, 2 Row, 2.54 mm Pitch, 4.7A, 655V SSW-116-01-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 655V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.7A |
| Model | SSW-116-01-L-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Current Rating | 4.7A per pin(2 pins powered) |
| Series | SSW |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Sub Type | Solder Tail |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Max Cycles | 100 with 10μ" (0.25μm) |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 32 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- Features a phosphor bronze contact material with gold plating for reliable conductivity.
- Supports a high current rating of 4.7A per pin with two pins powered.
- Constructed with a liquid crystal polymer housing for durability and stability.
- Offers a voltage rating of 655V suitable for demanding applications.
- Designed for through hole mount type with a straight orientation.
- Operates within a temperature range of -55°C to 125°C for broad environmental compatibility.
- Provides a standard normal force of 125 grams (4.4N) ensuring secure contact.
- Rated for a maximum of 100 cycles with a contact plating thickness of 10μ" (0.25μm).
Product Description
Samtec SSW-116-01-L-D is a Straight Through Hole PCB Socket from the SSW Series designed for electronic applications requiring robust board-to-board connections. This model features 32 contacts arranged in 2 rows with a precise 2.54 mm pitch and solder tail sub-type, supporting through hole mounting and a straight connector orientation.
Constructed with phosphor bronze contacts plated in gold, the socket ensures excellent electrical conductivity and corrosion resistance. Its liquid crystal polymer housing provides mechanical stability and environmental resilience across a broad temperature range from -55°C to 125°C.
Each contact supports a current rating of 4.7A per pin (with two pins powered), and the connector system is board-to-board type operating at voltages up to 655V, making it suitable for demanding industrial, manufacturing, laboratory, and electronic equipment applications.
The contact system employs the Tiger Buy™ contact mechanism offering a normal force of 125 grams (4.4N), which guarantees reliable electrical contact through up to 100 mating cycles with contact plating thickness rated at 10μ" (0.25μm).
32 contacts in 2 rows with 2.54 mm pitch. Phosphor bronze contact material with gold plating. Liquid crystal polymer housing ensuring durability. Voltage rating of 655V and current rating 4.7A per pin. Through hole mounting with straight orientation.
Operational temperature range from -55°C to 125°C. Tiger Buy™ contact system with standard normal force 125 grams. Rated for 100 mating cycles with 10μ" plating thickness.
This PCB socket is ideal for integration in industrial, electronic manufacturing, laboratory instrumentation, and power distribution applications where precision and reliability are critical.
Explore the full range of PCB Sockets and connectors on EnvMart for superior quality and technical support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
Each pin of the socket supports a current rating of 4.7A, with two pins powered.
The socket is rated for a maximum voltage of 655V, making it suitable for demanding applications.
It operates within a temperature range of -55°C to 125°C, providing broad environmental compatibility.
This model features 32 contacts arranged in 2 rows, with a pitch of 2.54 mm.
The contacts are made from phosphor bronze and are plated with gold to ensure reliable conductivity.
It is designed for through hole mounting with a straight orientation.
The socket is rated for a maximum of 100 mating cycles with a contact plating thickness of 10μ" (0.25μm).
The housing is constructed from liquid crystal polymer, which provides durability and stability.
The contact system employs a standard normal force of 125 grams (4.4N) to ensure secure contact.
The termination type is through hole, which is suitable for board-to-board connections.
The country of origin for this PCB socket is India.
This model is part of the SSW Series, designed for robust board-to-board connections.
