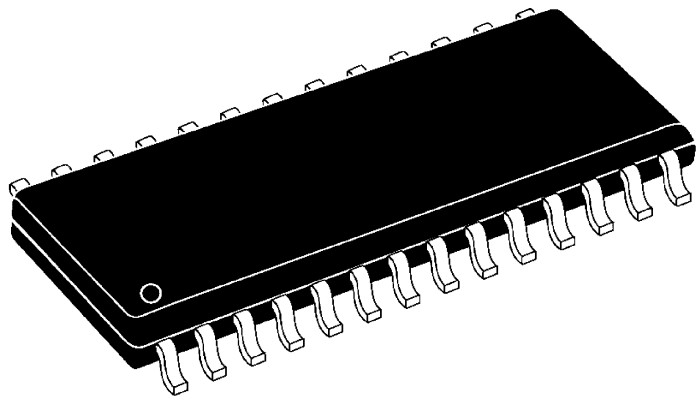

Microchip 8-Bit PIC16C Microcontroller, 0.75kB EPROM, 4 MHz, 20 Programmable I/Os, 28-Pin SOIC PIC16C55A-04/SO

Microchip PIC16C55A-04/SO is an 8-bit PIC16C microcontroller designed with a 4 MHz maximum clock frequency and 0.75kB EPROM program memory, provided in a 28-pin SOIC surface mount package. It features a 20 programmable I/O pins suitable for a variety of digital interfacing applications.

This microcontroller operates on a supply voltage ranging from 3 V to 5.5 V and has a maximum power dissipation of 800 mW, ensuring efficient performance within stringent power limits. It incorporates a RISC instruction set architecture with 33 instructions and a 2-level hardware stack, offering optimized processing capabilities.

The device includes one 8-bit timer and a watchdog timer enhancing system stability and reliability. Its operational temperature range from 0°C to 70°C makes it suitable for various industrial and commercial environments.

Microchip’s PIC16C55A-04/SO is RoHS compliant, adhering to environmental standards, and meets the automotive quality standard ISO/TS 16949, highlighting its applicability in automotive systems and other high-quality demanding use cases.

The 24-bit RAM size and EPROM program memory type support robust data handling and program storage capabilities. The compact physical dimensions of 2.39 mm height, 7.59 mm width, and 18.08 mm length enable designers to implement this microcontroller in space-constrained electronic designs.

This microcontroller finds applications in embedded systems, industrial controls, consumer electronics, automotive electronics, and other domains requiring reliable 8-bit processing with moderate memory and speed.

Features 20 programmable input/output pins for versatile digital interfacing. Operates with a 3 V to 5.5 V supply voltage range. Package type is 28-pin SOIC with surface mount for compact PCB design. Maximum power dissipation is 800 mW ensuring efficient operation.

RISC architecture with 33 instructions and 2-level hardware stack for optimized performance. Includes one 8-bit timer and watchdog timer for system reliability. Operating temperature ranges from 0°C to 70°C suitable for industrial applications.

RoHS compliant and meets automotive standard ISO/TS 16949 for quality assurance. Program memory uses EPROM type with 24-bit RAM size for data processing needs. Device dimensions: height 2.39 mm, width 7.59 mm, length 18.08 mm suitable for space-efficient design.
