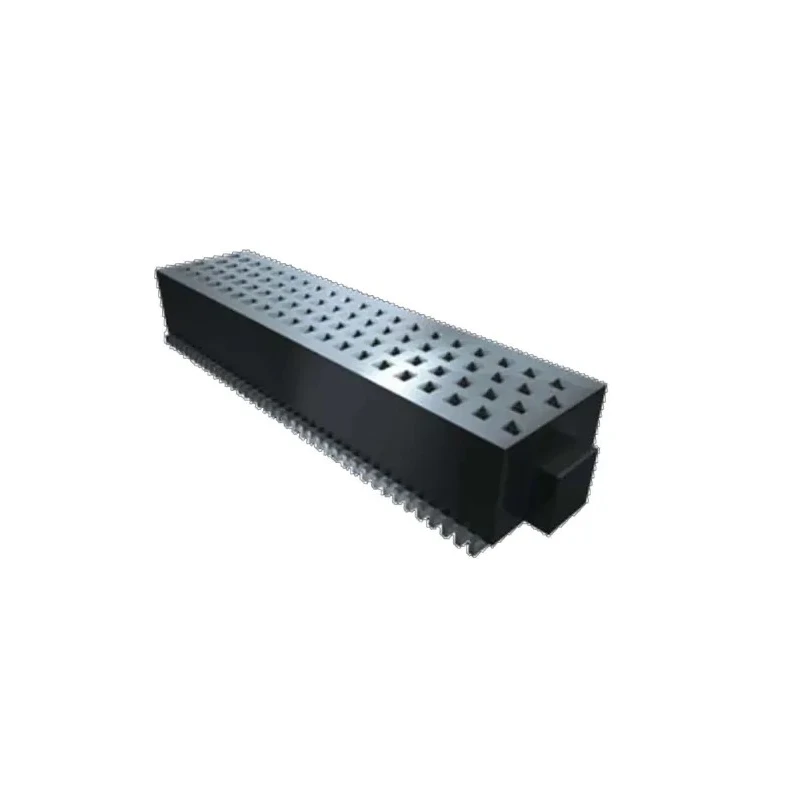

Samtec SOLC Series Straight Surface PCB Socket, 200-Contact, 4 Row, 1.27 mm Pitch, Gold Plated Phosphor SOLC-150-02-L-Q-A

Free Delivery in India | Lowest Global Shipping Charges

Samtec SOLC Series Straight Surface PCB Socket, 200-Contact, 4 Row, 1.27 mm Pitch, Gold Plated Phosphor SOLC-150-02-L-Q-A

Name: Samtec SOLC Series Straight Surface PCB Socket, 200-Contact, 4 Row, 1.27 mm Pitch, Gold Plated Phosphor SOLC-150-02-L-Q-A
Brand: Samtec
SKU: 162660
Price: 41.64 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Current	2.4A
Model	SOLC-150-02-L-Q-A
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Current Rating	2.4A per pin (6 adjacent pins powered)
Series	SOLC
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	4
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	200
Contact Gender	Female
Connector System	Board-to-Board
Operating temp range	-55°C to +125°C

Key Features

The socket is surface mount compatible with straight orientation for efficient PCB installation.
Constructed with liquid crystal polymer housing for superior insulation and thermal stability.
Operates effectively in temperature ranges from -55°C to +125°C.
Designed for over 100 mating cycles ensuring strong mechanical and electrical durability.
Ideal for industrial and electronic applications requiring robust PCB connectors.
Contact gender is female to ensure compatibility with standard male connectors.
Lead-free solder termination complies with modern environmental regulations.
This product is part of the SOLC series known for precision connection technology.

Product Description

The Samtec SOLC-150-02-L-Q-A is a quad row straight surface mount PCB socket optimized for reliable board-to-board electrical connections. It comprises 200 contacts organized in four rows with a 1.27 mm pitch, engineered to handle up to 2.4 amperes current per pin when powering six adjacent pins. The contacts are fabricated from phosphor bronze and plated with 0.25 μm gold to ensure excellent conductivity and resistance to corrosion.

The housing is made from liquid crystal polymer, providing excellent mechanical strength and heat resistance, capable of operating within an industrial temperature range from -55°C to +125°C. This socket is lead-free solderable and supports over 100 mating cycles, offering longevity and durable performance in demanding electronic assemblies.

It features a female contact gender in a straight orientation that facilitates easy and secure connectors for a range of industrial, manufacturing, and electronic applications. Its surface mount packaging supports efficient PCB assembly in commercial and industrial environments.

Samtec has designed the SOLC series to provide high-density, high-reliability connection solutions that are critical in modern electronics used in automation, communications, and various industrial sectors.

The socket supports 200 contacts across 4 rows allowing high-density connections. Phosphor bronze contacts with gold plating ensure excellent contact quality and durability. Liquid crystal polymer housing assures mechanical strength and thermal stability.

Operates reliably between -55°C and +125°C for a broad range of environments. Lead-free solder termination complies with environmental standards. Designed for more than 100 cycles of connection and disconnection. Ideal for board-to-board electronic connections in industrial applications.

Ensures stable, high-quality electrical connections under industrial use cases. Explore the Samtec SOLC series for your electronics connectivity needs at EnvMart, offering guaranteed quality and industrial-grade performance for PCB socket solutions.
