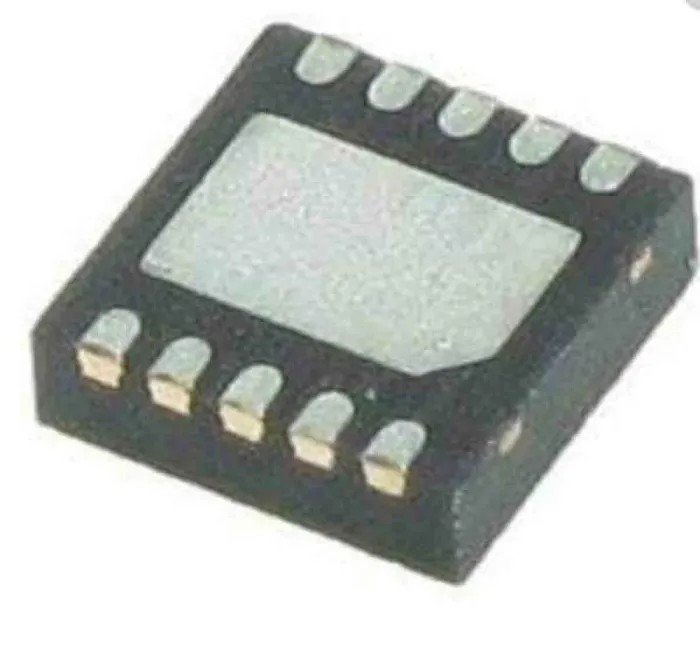

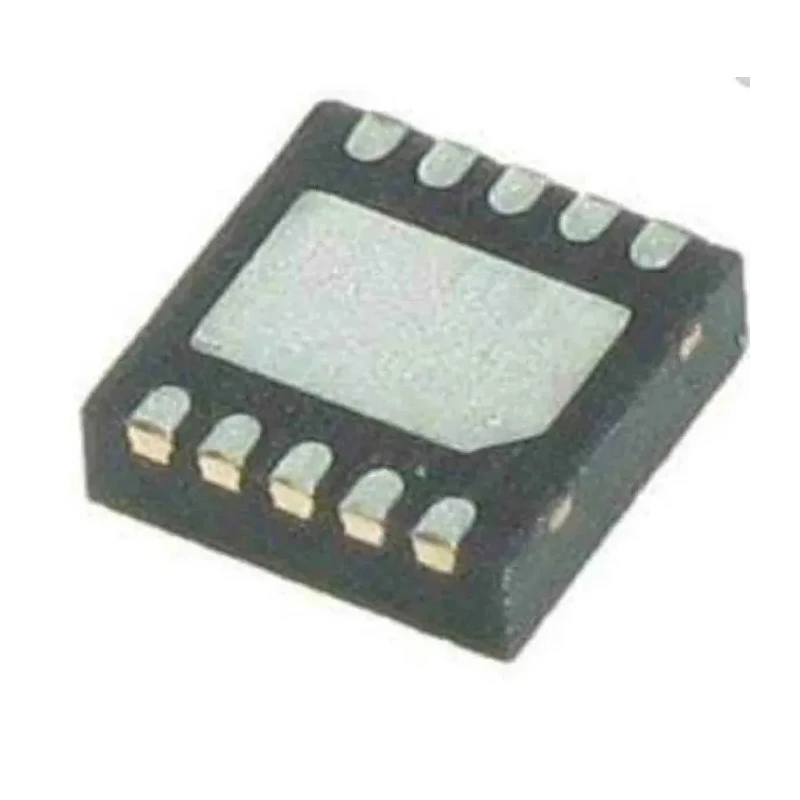

Renesas Electronics Voltage Regulator ISL80101IRAJZ-TK 6V 1A 6-Pin Surface Mount ISL80101IRAJZ-TK

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics Voltage Regulator ISL80101IRAJZ-TK 6V 1A 6-Pin Surface Mount ISL80101IRAJZ-TK

Name: Renesas Electronics Voltage Regulator ISL80101IRAJZ-TK 6V 1A 6-Pin Surface Mount ISL80101IRAJZ-TK
Brand: Renesas Electronics
SKU: 162258



Category Voltage Regulator IC Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Voltage	Regulators Renesas Electronics ISL80101IRAJZ-TK, Voltage Regulator 6V 6-Pin RS S
Brand	Renesas Electronics
Height	800μm
Length	3mm
Model	ISL80101IRAJZ-TK
Width	3mm
Mount Type	Surface
Series	ISL80101
Maximum Operating Temperature	125°C
Polarity	Positive
Maximum Input Voltage	6V
Quiescent Current	7mA
Standards/Approvals	Pb-Free (RoHS)
Minimum Input Voltage	2.2V
Pin Count	6

Key Features

Operates from 2.2V to 6V input voltage range.
Provides programmable output voltages from 0.8V to 5V.
Compact 6-pin surface mount package measuring 3mm x 3mm x 0.8mm.
Positive polarity with low quiescent current of 7mA.
Maximum operating temperature of 125°C for reliable performance.
Compliant with Pb-Free RoHS standards.
Offers very fast transient response for stable regulation.
Includes programmable soft-start to limit inrush current.

Product Description

Renesas Electronics ISL80101IRAJZ-TK is a precision low dropout (LDO) voltage regulator designed for high current applications requiring a single output of up to 1A. This surface mount device operates efficiently with input voltages ranging from 2.2V to 6V, providing flexible output voltages programmable from 0.8V to 5V, suitable for a wide variety of power management needs in electronics design.

The component features a compact 6-pin surface mount package measuring just 3mm by 3mm with a height of 800 micrometers, enabling easy integration into dense PCB layouts. It delivers positive polarity regulation with a minimal quiescent current of 7mA to optimize power consumption. The maximum operating temperature rating of 125°C ensures reliable performance under demanding thermal conditions.

Engineered for rapid transient response, the ISL80101IRAJZ-TK maintains output voltage stability even under fast load transients. The inclusion of programmable soft-start limits inrush current during startup, enhancing device and system longevity. Additionally, compliance with Pb-Free (RoHS) directives supports environmentally conscious manufacturing and product deployment.

This Voltage Regulator IC is ideal for industrial, automotive (non-automotive standard), telecommunications, and embedded systems requiring precise low voltage power supply regulation up to 1A current. It is well suited for designers needing compact, high-performance, and energy-efficient power management ICs.

Operates in input voltage range 2.2V to 6V for flexible supply options. Provides output voltages programmable from 0.8V to 5V. Compact 3mm x 3mm x 0.8mm 6-pin surface mount package. Positive polarity operation with low quiescent current of 7mA.

High maximum operating temperature of 125°C. Pb-Free (RoHS) compliant construction. Fast transient response for stable voltage regulation. Programmable soft-start for smooth power-up. Designed for power management IC applications requiring 1A output current.

Explore more high-quality power management ICs and voltage regulators at EnvMart for your industrial and electronic component needs.
