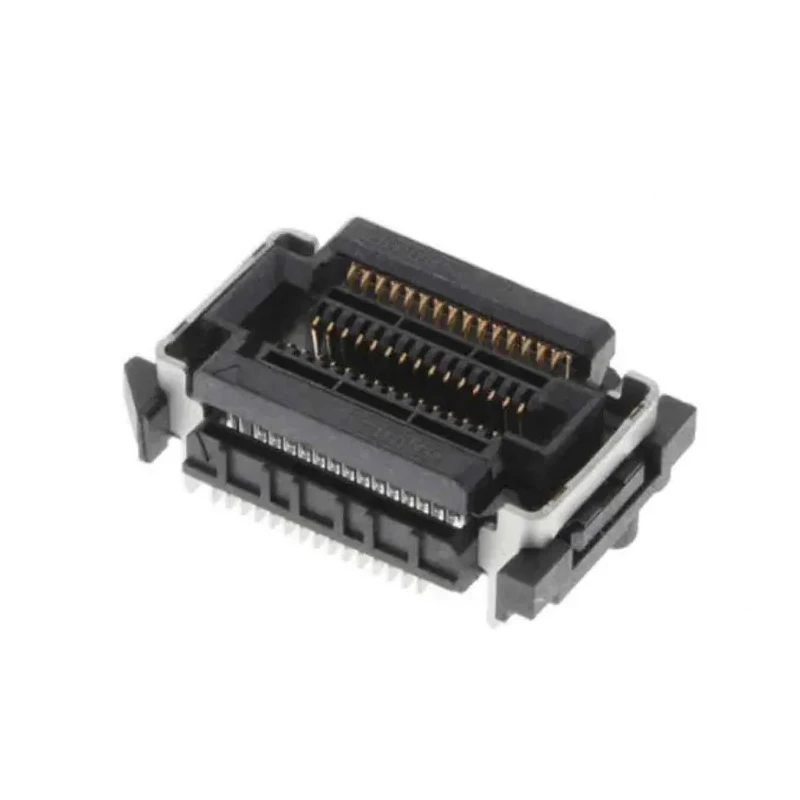

Samtec FS5 Series Vertical Surface PCB Socket 15-Contact 2 Row 0.5 mm Pitch Press-in FS5-15-04.0-L-DV-TH-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Vertical |
| Model | FS5-15-04.0-L-DV-TH-K-TR |
| Mount Type | Surface |
| Housing Material | LCP |
| Series | FS5 |
| Termination Type | Press-in |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 15 |
Key Features
- Compact 0.5 mm pitch design suitable for high density PCB layouts.
- Double row configuration with 15 high-speed floating contacts.
- Housing made of liquid crystal polymer (LCP) for mechanical stability.
- Gold-plated contacts ensure reliable high-speed signal transmission.
- Press-in termination allows for easy and secure PCB installation.
- Vertical orientation optimized for space saving on PCB assemblies.
- Operating temperature range from -55°C to 125°C for harsh environments.
- Complies with RoHS standards for environmental compliance.
Product Description
Samtec FS5-15-04.0-L-DV-TH-K-TR is a high-performance vertical surface PCB socket designed for electronic applications that require reliable high-speed signal connectivity. This socket features a 15-contact, 2-row arrangement with a compact 0.5 mm pitch, making it ideal for high-density printed circuit boards.
The socket housing is crafted from liquid crystal polymer (LCP), a material known for excellent dimensional stability and reliability in demanding conditions. Gold plating on contacts ensures excellent conductivity and corrosion resistance, suitable for signals requiring minimal loss and high fidelity.
The press-in termination type facilitates secure and straightforward mounting on the PCB surface, offering robust mechanical retention without soldering. Its vertical orientation helps save board space while maintaining electrical performance.
Operating effectively across a temperature span from -55°C to 125°C, this socket is well-suited for industrial, telecommunications, computing, and other high-performance electronic equipment applications where durable and precise connections are critical.
Compact 0.5 mm pitch design suitable for high density PCB layouts. Double row configuration with 15 high-speed floating contacts. Housing made of liquid crystal polymer (LCP) for mechanical stability. Gold-plated contacts ensure reliable high-speed signal transmission.
Press-in termination allows for easy and secure PCB installation. Vertical orientation optimized for space saving on PCB assemblies. Operating temperature range from -55°C to 125°C for harsh environments. Complies with RoHS standards for environmental compliance.
Part of the FS5 series designed for high-speed electronic applications.
This Samtec PCB Socket is an excellent choice for engineers and manufacturers seeking dependable connectors with high signal integrity for complex PCB assemblies. Browse more solutions in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this PCB socket is 0.5 mm, making it suitable for high-density PCB layouts.
This model features 15 contacts arranged in a double row configuration.
The maximum operating temperature for this socket is 125°C, allowing it to function in harsh environments.
The housing is made from liquid crystal polymer (LCP), which provides mechanical stability.
It uses a press-in termination type, allowing for easy and secure mounting on the PCB surface without soldering.
The minimum operating temperature for this socket is -55°C, making it suitable for a wide range of applications.
This model complies with RoHS standards for environmental compliance.
The orientation of this socket is vertical, which is optimized for space-saving on PCB assemblies.
The contacts are gold-plated, ensuring reliable high-speed signal transmission and corrosion resistance.
This PCB socket is manufactured in India.
This socket is part of the FS5 series, designed for high-speed electronic applications.
The mounting type for this socket is surface mount, facilitating its installation on printed circuit boards.
