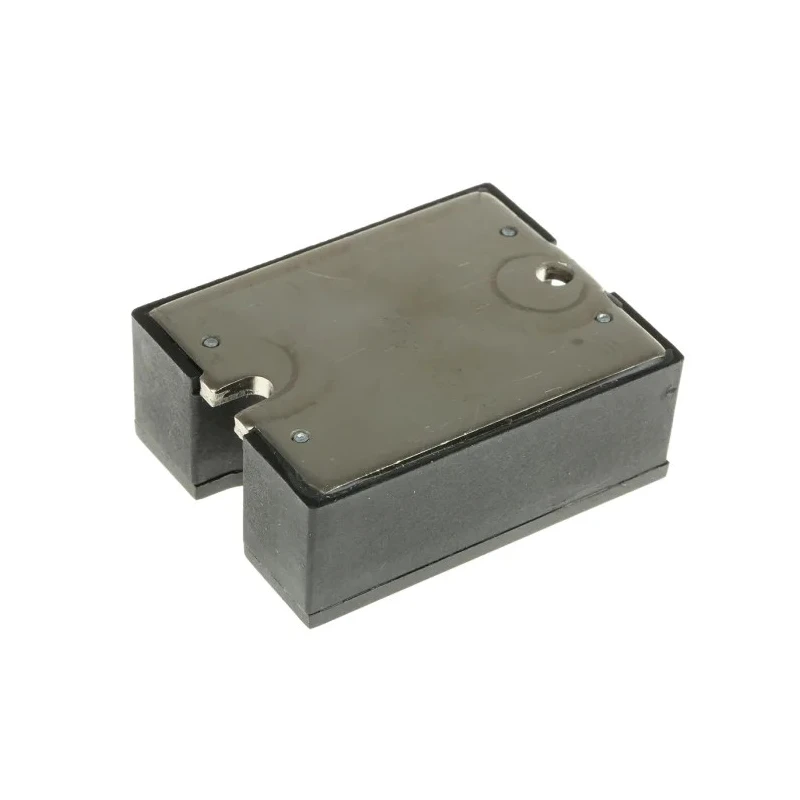

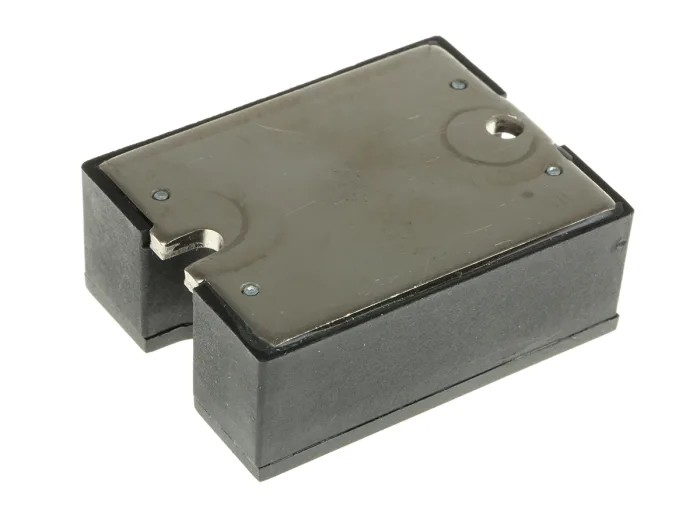

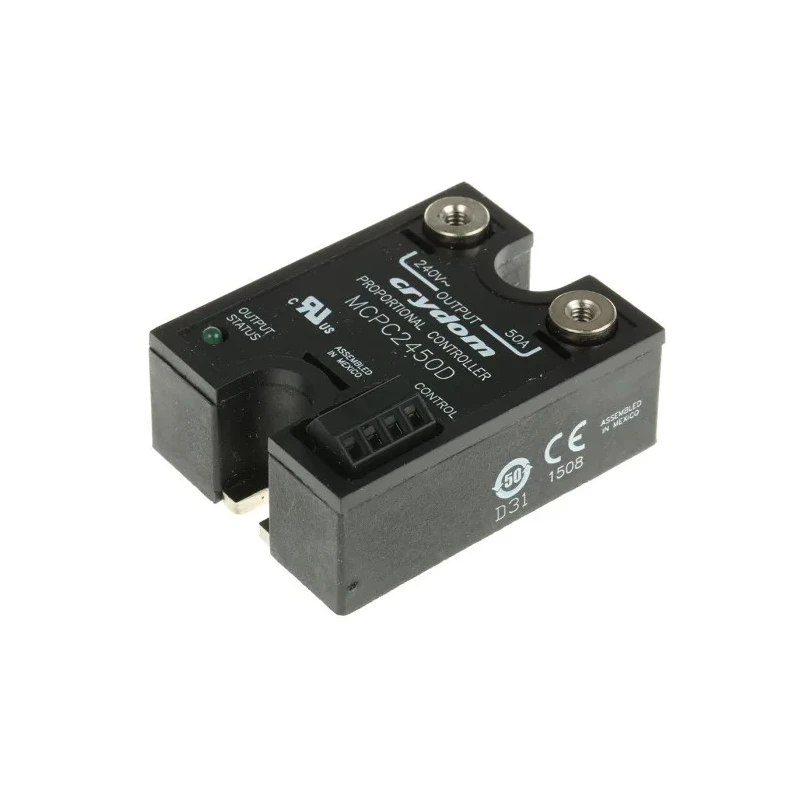

Crydom MCPC Series Solid State Relay 50 A Load, Panel Mount, 280 Vrms Load, 32V DC Control MCPC2450D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 19.8mm |
| Length | 45.7mm |
| Model | MCPC2450D |
| IP Rating | IP20 |
| Width | 22.6mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | MCPC |
| Maximum Operating Temperature | 80°C |
| Capacitance | 10pF |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Maximum Load Current | 50A |
| Standards/Approvals | RoHS, UR, CSA |
| Minimum Control Voltage | 8V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 7mArms |
Key Features
- Provides wide control range from 0% to 100% power application for various loads.
- Equipped with an LED output indicator for quick and easy status monitoring.
- Screw terminals enable secure and simple wiring installation.
- Encapsulated in thermally conductive epoxy for effective heat dissipation.
- Operates reliably in harsh environments within temperature range from -20°C to +80°C.
- Panel mount design ensures easy integration in industrial control panels.
- Off state leakage current is low at 7mArms, improving efficiency.
- Designed to handle maximum load current of 50 Amperes at up to 280 Vrms.
Product Description
The Crydom MCPC2450D is a robust Solid State Relay designed for industrial and commercial control applications. It supports a maximum load current of 50 Amperes and can handle load voltages up to 280 Vrms, making it ideal for controlling lighting, heating, and other equipment requiring reliable power regulation.
Featuring a panel mount configuration, this relay is easily installed within control panels, and the screw terminal connections provide secure and maintenance-friendly wiring. The embedded phase angle control technology allows for fine adjustment of power delivery from 0% to 100%, enhancing system efficiency and reducing equipment wear.
Thermally conductive epoxy encapsulation ensures efficient heat dissipation, enabling stable operation within a wide temperature range of -20°C to +80°C. The device includes an LED output indicator for quick operational feedback and features a very low off-state leakage current of 7mArms.
This relay complies with multiple industry standards including RoHS, UR, and CSA, providing assurance of quality and safety in use. Wide control range from 0 to 100% power output. LED output status indicator for easy monitoring.
Screw terminal type connections for secure wiring. Thermally conductive epoxy casing to manage heat effectively. Operates reliably between -20°C and 80°C in demanding environments. Supports maximum load voltage of 280 Vrms and load current of 50A.
Low off-state leakage current of 7mArms minimizes power loss. Panel mount for easy installation in industrial control systems. Suitable for industrial, manufacturing, and commercial heating and lighting control. Conforms to RoHS, UR, and CSA standards ensuring compliance and safety.
This Crydom MCPC Series Solid State Relay is ideal for precise power control in industrial automation, commercial installations, HVAC systems, and manufacturing processes requiring reliable and efficient switching. Explore additional Solid State Relays and electrical control products in this category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle a maximum load current of 50 Amperes.
It operates reliably within a temperature range of -20°C to +80°C.
The relay features screw terminal connections for secure and maintenance-friendly wiring.
It supports a maximum load voltage of 280 Vrms.
The off-state leakage current is low at 7mArms, which helps improve efficiency.
The dimensions are 45.7mm in length, 22.6mm in width, and 19.8mm in height.
Yes, it features a panel mount design for easy integration into industrial control panels.
It complies with RoHS, UR, and CSA standards, ensuring quality and safety.
The output type is SCR (Silicon Controlled Rectifier).
The minimum control voltage required is 8V DC.
It is equipped with an LED output indicator for quick and easy status monitoring.
It is suitable for industrial, manufacturing, and commercial heating and lighting control applications.
