Molex KK 254 Series Right Angle Through Hole Pin Header, 8 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 22-05-2081

Free Delivery in India | Lowest Global Shipping Charges

Molex KK 254 Series Right Angle Through Hole Pin Header, 8 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 22-05-2081

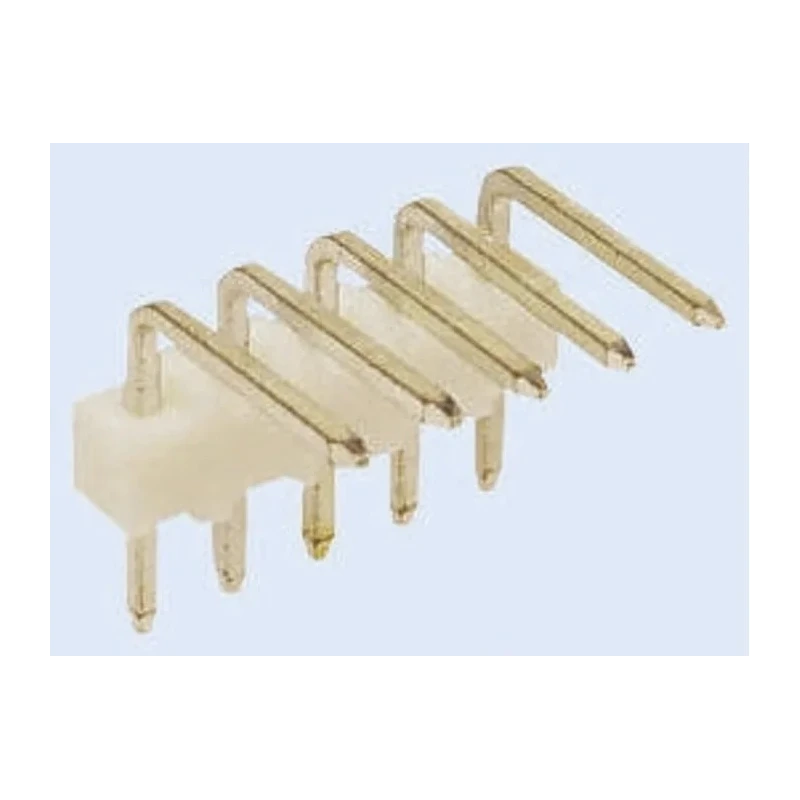

Name: Molex KK 254 Series Right Angle Through Hole Pin Header, 8 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 22-05-2081
Brand: Molex
SKU: 161593
Price: 20.22 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	4A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	KK 254
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3.15mm
Mating Pin Length	2.54mm

Key Features

Constructed with brass male contacts plated in tin for excellent conductivity.
Features a nylon housing providing durability and safety in electrical applications.
Designed for through hole mount with a right angle orientation for compact PCB assembly.
Operates reliably within a temperature range of -40°C to 105°C.
Rated for a maximum voltage of 250V and current capacity of 4A.
Tail pin length of 3.15 mm and mating pin length of 2.54 mm support secure soldered connections.
Stackable design allows end-to-end and side-to-side alignment for scalable configurations.
Compliant with UL (E29179) and CSA (LR 19980) approvals ensuring quality and safety.

Product Description

Molex 22-05-2081 KK 254 Series Right Angle Through Hole Pin Header, featuring 8 contacts and a 2.54 mm pitch in a single row configuration, is designed for reliable board-to-board and wire-to-board electrical connections in varied industrial environments. Its unshrouded, right angle orientation supports compact PCB layouts.

The pin header includes brass male contacts with tin plating that provide excellent electrical conductivity and corrosion resistance. The nylon housing complies with UL 94V-0 standards, ensuring flame retardance and mechanical stability in manufacturing and industrial settings.

Operating temperature ranges from -40°C to 105°C, making it suitable for both commercial and industrial applications including electronics manufacturing, automation systems, and control panels. Rated for 4 amperes and 250 volts, it supports moderate power circuits effectively.

This model features through hole mounting for durable mechanical and electrical connections. Tail pins measure 3.15 mm, while mating pins are 2.54 mm, optimized for secure soldered joints and stackable configurations end-to-end and side-to-side.

Brass tin-plated male contacts ensure reliable conductivity. Nylon housing offers thermal and mechanical durability. Right angle through hole mount suits compact PCB designs. Operating range from -40°C to 105°C for versatile applications.

Rated at 4A current and 250V voltage for standard power requirements. Stackable design allows scalable connector arrays. UL and CSA certified for safety and compliance.

This component is ideal for industrial electronics assembly, PCB prototyping, and maintenance in sectors such as automation, instrumentation, and power systems. Molex’s KK 254 Series sets a standard for quality in electronic connectivity.

Explore our comprehensive range of PCB Headers and connectors for all your industrial and electronic needs at EnvMart.
