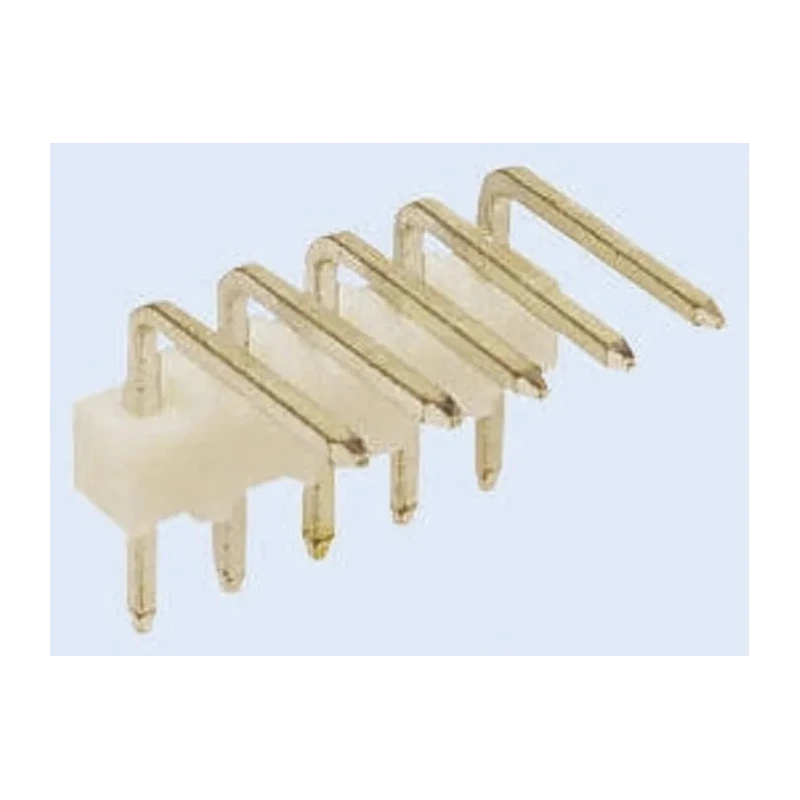

Molex KK 254 Series Right Angle Through Hole Pin Header, 9 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 22-05-2091
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 4A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.15mm |
| Mating Pin Length | 2.54mm |
Key Features
- Constructed with brass contacts featuring tin plating for reliable solder connections.
- Housing is made from durable nylon material compliant with UL 94V-0 standards.
- Designed for board-to-board and wire-to-board connector systems with right-angle orientation.
- Rated for continuous current up to 4A and voltage up to 250V suitable for various electronic assemblies.
- Suitable for operating temperatures ranging from -40°C to 105°C for robust performance.
- Pin termination type is solder through-hole ensuring stable mechanical and electrical connections.
- Stackable end to end and side to side facilitating modular PCB designs.
- Contact tail pin length is 3.15 mm, with mating pin length of 2.54 mm.
Product Description
Molex 22-05-2091 KK 254 Series Right Angle Through Hole Pin Header offers a reliable solution for electronic components requiring board-to-board or wire-to-board connections. This male pin header features 9 contacts arranged in a single row with a 2.54 mm pitch, providing a compact and efficient connection interface.
The connector housing is fabricated from white nylon material that meets UL 94V-0 flammability ratings, ensuring safety and durability in various industrial and commercial electronic applications. The brass contacts are plated with tin to enhance solderability and long-term corrosion resistance.
Designed for a right-angle orientation and through-hole mounting, this pin header supports solder termination for secure mechanical and electrical connections on PCBs. Its rated electrical performance includes 4A current and 250V voltage, making it suitable for power and signal transmission tasks across industrial, laboratory, commercial, and manufacturing sectors.
Operating temperature range from -40°C to 105°C allows the header to withstand demanding environmental conditions. This product is stackable end to end and side to side, enabling flexible modular PCB layout designs and expansions.
Brass contacts with tin plating for strong solder connections. Nylon housing with UL 94V-0 rating for flammability safety. Right angle, through-hole mount design for PCB integration. Rated current of 4A and voltage of 250V for versatile use cases.
Temperature range from -40°C to 105°C for environmental resilience. Stackable end to end and side to side for modularity. Pin lengths optimized for soldering and mating reliability. Manufactured in Mexico adhering to quality standards.
This Molex KK 254 Series Right Angle Through Hole Pin Header is ideal for applications in electronic assembly, including industrial machines, laboratory equipment, HVAC systems, manufacturing instruments, and other commercial electronics that demand dependable connector performance.
Explore the broad range of PCB connectors and headers in the Electronics & Electricals category on EnvMart for compatible components and accessories.
Explore more products in our PCB Pin Header category.
