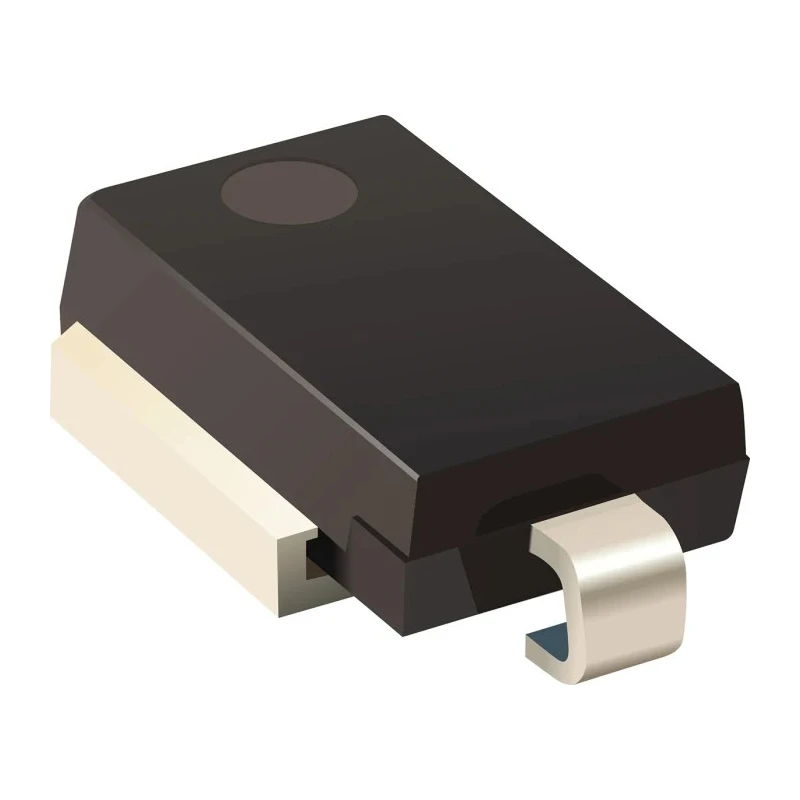

Bourns 1-Element Bi-Directional ESD Protection Diode 15 kW Peak Pulse Power 2-Pin DO-218 15KPA058C-SD-Q

Bourns 15KPA058C-SD-Q is a high-performance 1-element bi-directional ESD Protection Diode engineered for surge and transient voltage suppression in sensitive electronic equipment. Featuring a peak pulse power dissipation of 15 kW and a robust 2-pin DO-218 surface mount package, this diode provides reliable protection in demanding industrial and automotive environments.

The diode supports a working peak reverse voltage of up to 66 V and a clamping voltage of 86.3 V, ensuring efficient suppression of voltage spikes that could damage downstream components. Its bi-directional configuration allows it to protect circuits from both positive and negative transient events.

With a maximum peak pulse current capability of 1000 A and a minimum breakdown voltage of 59.1 V, the diode performs reliably under high surge conditions. The operating temperature range from -55°C to 175°C further extends its usability in harsh environments, making it suitable for applications in automotive electronics, load switching, lighting control systems, and high peak power scenarios.

The device is manufactured to automotive standard AEC-Q101, highlighting its quality and reliability. Its compact DO-218 package with dimensions of 13.5 mm length, 8.5 mm width, and 4.85 mm height facilitates easy PCB mounting and space-efficient design integration.

Additional attributes include a low reverse leakage current of 10 μA to minimize power consumption during normal operation. Its surface mount configuration simplifies assembly processes in automated production lines.

Designed for high peak power and high temperature applications. Bi-directional diode configuration provides effective surge and ESD protection. Features a working peak reverse voltage up to 66 V. Clamping voltage of 86.3 V ensures reliable voltage spike suppression.

Compact surface mount DO-218 package dimensions: 13.5mm length, 8.5mm width, and 4.85mm height. Automotive standard AEC-Q101 qualified for demanding environments. Operating temperature range from -55°C to 175°C for durability.

Maximum peak pulse current rating of 1000 A with minimum breakdown voltage of 59.1 V. Low reverse leakage current of 10 μA for minimal power loss. Ideal for load switching, lighting, and surge protection in electronic circuits.

It is well suited to applications in industrial electronics, automotive systems, telecommunications, power supplies, and other high reliability environments requiring ESD and transient voltage protection. The Bourns 15KPA058C-SD-Q ensures compliance with stringent performance standards while maintaining compactness and ease of integration.
