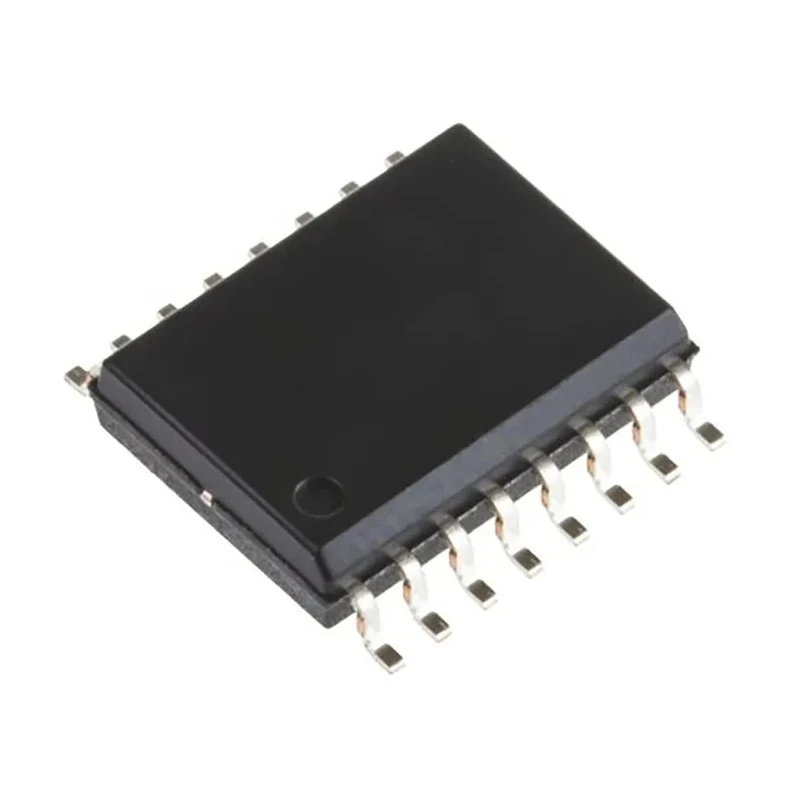

Infineon PLL Clock Buffer 3.3 V Maximum Input Frequency 133.3 MHz 16-Pin SOIC CY2308SXI-1

Free Delivery in India | Lowest Global Shipping Charges

Infineon PLL Clock Buffer 3.3 V Maximum Input Frequency 133.3 MHz 16-Pin SOIC CY2308SXI-1

Name: Infineon PLL Clock Buffer 3.3 V Maximum Input Frequency 133.3 MHz 16-Pin SOIC CY2308SXI-1
Brand: Infineon
SKU: 161416



Category Clock Buffers Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	1.47mm
Length	9.98mm
Model	CY2308SXI-1
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Maximum input frequency	133.3MHz
Pin Count	16

Key Features

The device features a maximum input frequency of 133.3 MHz for high precision timing.
It incorporates a zero delay PLL to minimize input-to-output skew to less than 250 ps.
The output-to-output skew is maintained under 200 ps to ensure reliable clock synchronization.
Equipped with two banks of four outputs each, controlled by select inputs for flexible output configuration.
Power down mode draws less than 25 μA, reducing power consumption when idle.
Operating temperature ranges from -40°C to 85°C, suitable for various environmental conditions.
The compact 16-pin SOIC package measures 9.98 mm in length and 1.47 mm in height.
Input clock can be applied directly to outputs for testing and system diagnostics.

Product Description

The Infineon CY2308SXI-1 is a high-performance 3.3 V PLL clock buffer in a compact 16-pin SOIC package designed to distribute high-speed clock signals efficiently in PC, workstation, datacom, and telecom applications.

Its integrated PLL locks to an input clock applied to the REF pin, with feedback flexibility provided via an external FBK pin allowing selection of feedback from any output.

This device minimizes timing discrepancies with less than 250 ps input-to-output skew and less than 200 ps output-to-output skew, ensuring precise clock alignment crucial for synchronous systems.

The CY2308SXI-1 contains two banks of four outputs each that are controlled through select inputs, enabling selective activation of clock outputs based on system requirements. When not all outputs are in use, Bank B outputs are three-stated to reduce power usage.

The device supports direct application of the input clock to outputs for straightforward chip and system-level testing, enhancing versatility during integration and debugging. The low power PLL enters a power-down mode drawing less than 25 μA current when no clock edges are detected at the REF pin, promoting energy efficiency during idle periods.

Designed to operate reliably across a broad temperature range from -40°C to 85°C and housed in a small form factor SOIC package measuring 9.98 mm by 1.47 mm, it suits industrial and commercial environments.

The device ensures high performance clock distribution for industrial, computing, and telecommunication applications. Robust design with wide operating temperature range ensures reliability under varied conditions. Low power consumption minimizes operational costs in large-scale deployments.

Flexible output configuration supports diverse system architectures. Compact package allows integration into space-constrained PCB layouts.

Infineon PLL Clock Buffers like the CY2308SXI-1 are essential components in timing-critical electronic systems. Browse EnvMart's semiconductor category for additional clock buffer solutions and related timing ICs.
