STMicroelectronics 3-Pin Surface Mount TRIAC 600 V, Gate Trigger 1 V T2050H-6G

Free Delivery in India | Lowest Global Shipping Charges

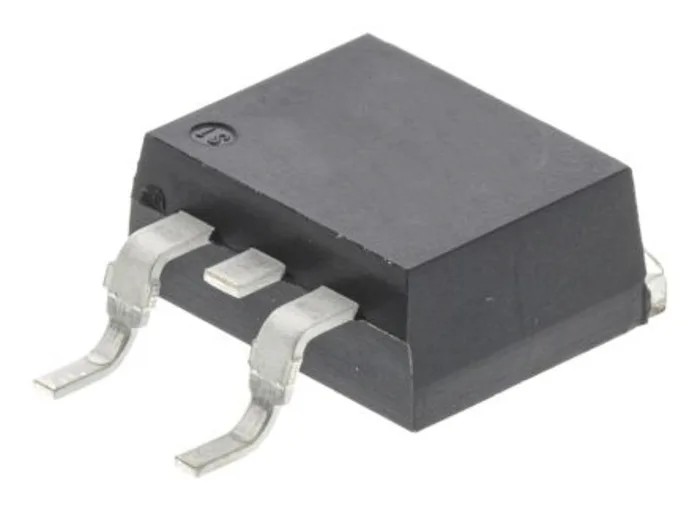

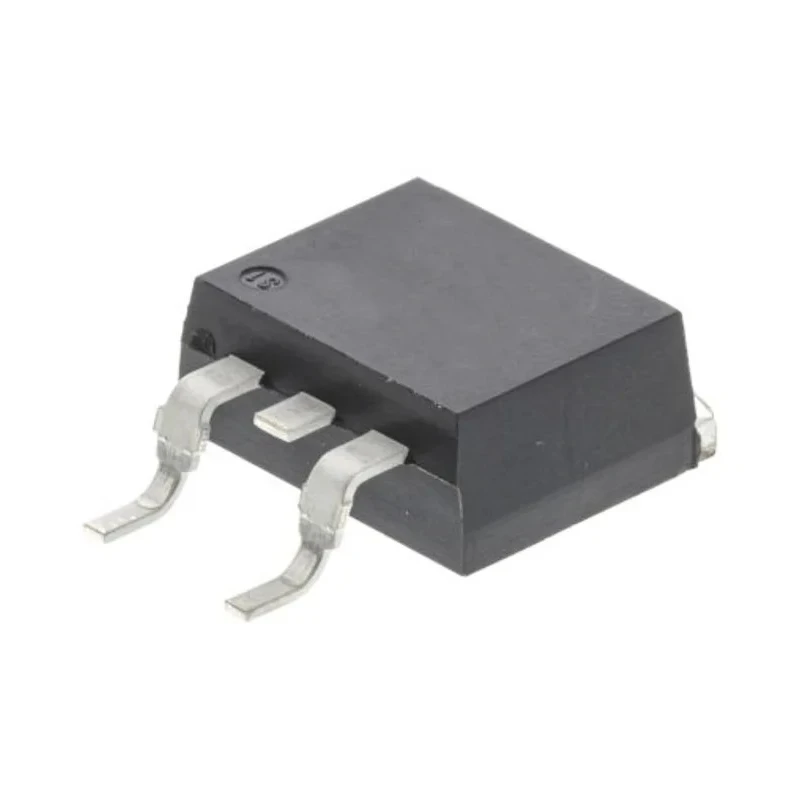

STMicroelectronics 3-Pin Surface Mount TRIAC 600 V, Gate Trigger 1 V T2050H-6G

Name: STMicroelectronics 3-Pin Surface Mount TRIAC 600 V, Gate Trigger 1 V T2050H-6G
Brand: STMicroelectronics
SKU: 160108
Price: 1.46 USD
Availability: InStock



Category TRIAC Brand STMicroelectronics Condition New

Specifications

Country of Origin	China
Brand	STMicroelectronics
Height	4.6mm
Length	10.28mm
Model	T2050H-6G
Mount Type	Surface
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	TO-263
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	3
Rated Average On-State Current Irms	20A
Repetitive Peak Reverse Voltage VDRM	600V
Surge Current Rating	210A
Maximum Gate Trigger Current Igt	50mA
Maximum Holding Current Ih	75mA
Maximum Gate Trigger Voltage Vgt	1V
Peak Gate Power Dissipation	1W

Key Features

The TRIAC features a low gate trigger voltage of 1 V for efficient switching.
Constructed in a TO-263 package suitable for surface mounting applications.
Supports high surge current rating up to 210A for robust performance.
Operates reliably within a temperature range of -40°C to 150°C.
Includes voltage insulation rated at 2500 VRMS via an internal ceramic pad.
Provides very high three quadrant commutation capability for flexible circuit designs.
Low thermal resistance achieved with clip bonding reducing heatsink size requirements.
Maximum gate trigger current is 50mA with a holding current of 75mA.

Product Description

STMicroelectronics T2050H-6G 3-Pin Surface Mount TRIAC is a medium current switching component designed for general purpose mains power AC applications. Its 20 A rated average on-state current and 600 V repetitive peak reverse voltage capability make it ideal for controlling AC power in industrial, commercial, and residential electronics.

This TRIAC supports efficient low-voltage gate triggering with a maximum gate trigger voltage of 1 V and has a surge current rating of 210 A to endure transient conditions. The device is built in a TO-263 surface mount package featuring low thermal resistance via clip bonding and an internal ceramic pad ensuring 2500 VRMS voltage insulation.

Its robust construction allows operation over a wide temperature range from -40°C to 150°C junction temperature, enabling reliable performance in harsh environments. The high three quadrant commutation capability enhances switching flexibility in various circuit topologies.

Key electrical parameters include a maximum gate trigger current of 50 mA and a maximum holding current of 75 mA. Compact device dimensions of 10.28 mm length and 4.6 mm height facilitate integration into densely populated circuit boards.

Manufactured according to RoHS compliance, this TRIAC is sourced from China and is suitable for use in power control modules, lighting systems, motor control, and other solid-state switching circuits.

The TRIAC design reduces required heatsink size compared to traditional equivalents. Voltage insulation rating of 2500 VRMS ensures safe operation in high-voltage environments. High surge current rating protects against occasional power spikes.

Surface mount TO-263 package supports automated assembly processes. Wide operating temperature range suits industrial and commercial applications. RoHS compliant for environmentally responsible manufacturing.

For experts seeking reliable and efficient AC power switching devices, the STMicroelectronics T2050H-6G TRIAC offers excellent performance and durability. Explore further options in the TRIAC category or other semiconductor components on EnvMart for your design requirements.
