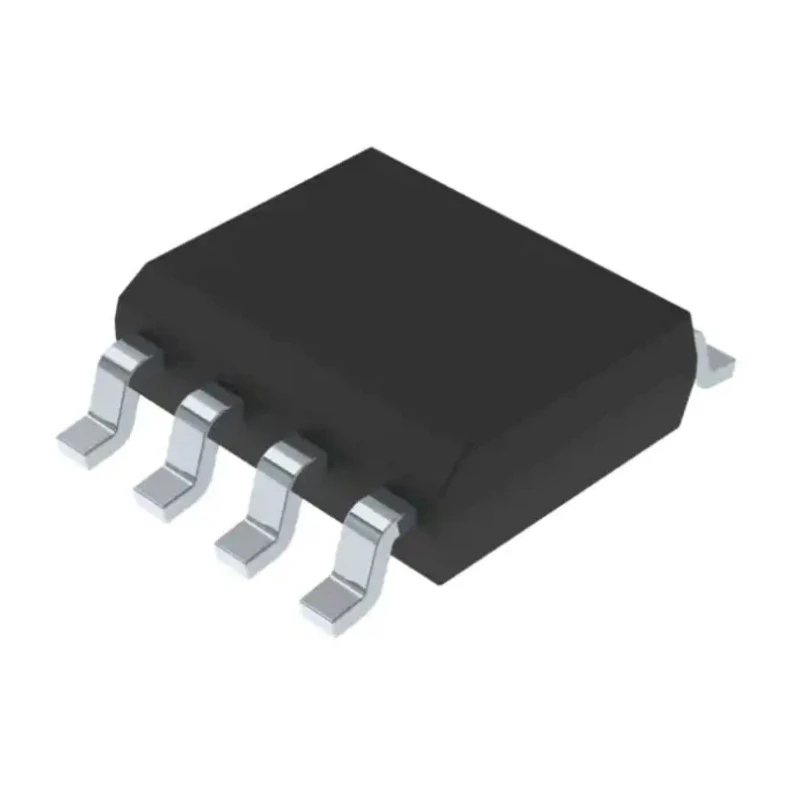

STMicroelectronics MOSFET Gate Driver 1, 1.7 A, 8-Pin, 55V, SO-8 Package VNS1NV04PTR-E
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 5mm |
| Model | VNS1NV04PTR-E |
| Width | 4mm |
| Mount Type | Surface |
| Output Current | 1.7A |
| Package Type | SO-8 |
| Number of outputs | 5 |
| Rise Time | 4μs |
| Pin Count | 8 |
| Maximum Supply Voltage | 55V |
| Minimum Supply Voltage | 40V |
| Number of Drivers | 1 |
| Fall Time | 600ns |
| Driver Type | MOSFET |
Key Features
- Delivers an output current of 1.7 A for efficient MOSFET control.
- Features an 8-pin SO-8 package for easy mounting in surface applications.
- Operates with a maximum supply voltage of 55 V, supporting a wide range of electronics projects.
- Equipped with built-in thermal shutdown, linear current limitation, and overvoltage clamp protection for enhanced durability.
- Provides diagnostic feedback through the input pin for precise fault management.
- Compatible with standard power MOSFETs and enables direct access to the gate for analogy driving.
- ESD protection safeguards the device and attached circuitry in industrial settings.
Product Description
The STMicroelectronics VNS1NV04PTR-E is a monolithic MOSFET gate driver designed in VI Power M0-3 Technology for reliable switching operations in challenging industrial and electronic environments. With an output current of 1.7 A and a maximum supply voltage of 55 V, this device supports a broad spectrum of power management applications, such as DC switching, load control, and high-frequency operations up to 50 kHz.
Featuring an 8-pin SO-8 surface-mount package, the VNS1NV04PTR-E offers compact design and efficient PCB utilization. Integrated safety features include thermal shutdown, linear current limitation, and an overvoltage clamp, making it suitable for systems that demand robust protection against adverse operating conditions. The built-in diagnostic feedback mechanism is accessible via the input pin and enables real-time fault monitoring for advanced circuit protection.
This gate driver is fully compatible with standard power MOSFETs, offering direct gate access for analog driving. It also incorporates ESD protection to support safe handling and operation in environments susceptible to electrostatic discharge. The device's rise and fall times (4 μs rise time, 600 ns fall time) ensure fast and precise switching, while its output configuration makes it suitable for industrial, automation, and commercial power control systems.
The VNS1NV04PTR-E is ideal for use in industrial automation, process control, power management, and motor control, as well as other applications where reliable switching and diagnostics are essential. Engineers benefit from its diagnostic feedback, integrated protections, and compatibility with standard drive circuits, facilitating both legacy system upgrades and new design integrations.
For more advanced electronic component solutions, explore related MOSFET Gate Drivers and power management ICs by STMicroelectronics on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 55 V, while the minimum supply voltage is 40 V.
It delivers an output current of 1.7 A, making it suitable for efficient MOSFET control.
This unit has a height of 1.25 mm, a length of 5 mm, and a width of 4 mm.
The VNS1NV04PTR-E is packaged in an 8-pin SO-8 surface-mount configuration, allowing for easy mounting in surface applications.
It includes built-in thermal shutdown, linear current limitation, and an overvoltage clamp for enhanced durability and protection.
The rise time is 4 μs and the fall time is 600 ns, ensuring fast and precise switching operations.
Yes, this model is fully compatible with standard power MOSFETs, allowing direct access to the gate for analog driving.
It is ideal for industrial automation, process control, power management, and motor control applications.
This gate driver has a total of 5 outputs, allowing for multiple control options.
It is classified as a MOSFET driver, specifically designed for reliable switching operations.
It offers diagnostic feedback through the input pin for precise fault management, enhancing circuit protection.
The country of origin for this model is India.
