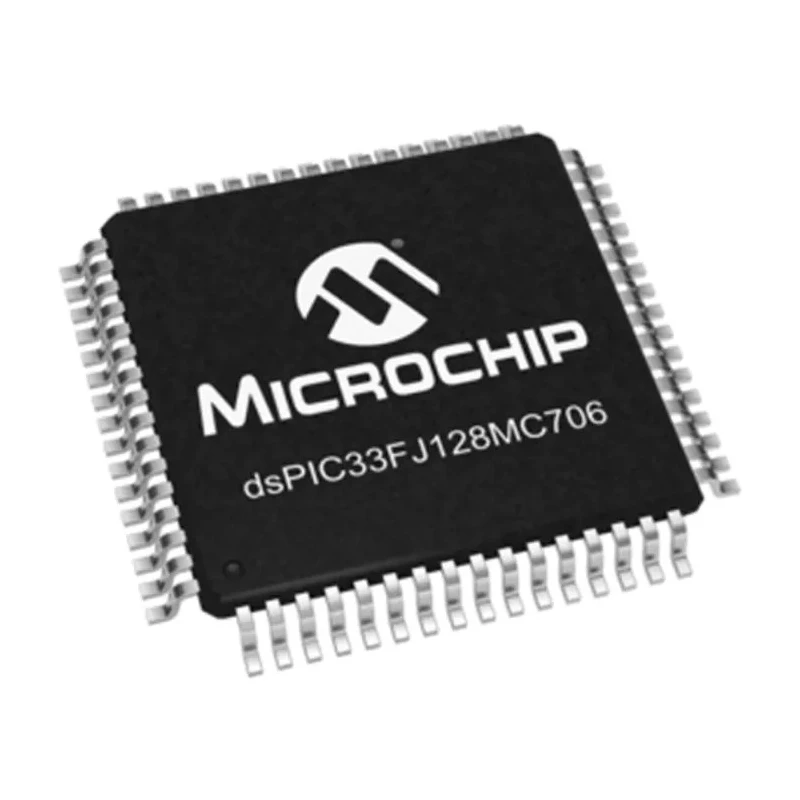

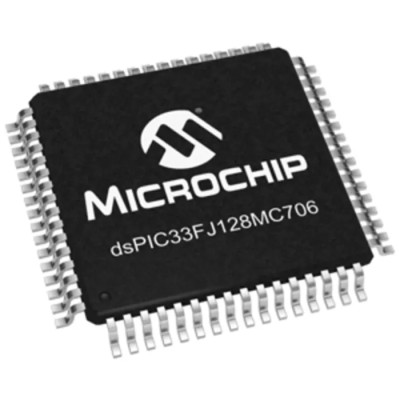

Microchip 16 bit Digital Signal Processor 40 MHz 128kB FLASH 64-Pin TQFP DSPIC33FJ128MC706-I/PT

Microchip DSPIC33FJ128MC706-I/PT is a high-performance 16 bit Digital Signal Processor designed for embedded control applications requiring precise digital signal processing. With a maximum clock frequency of 40 MHz and 40 Million Instructions Per Second (MIPS) throughput, it enables high speed computation suitable for digital filter algorithms, audio and speech processing, and advanced control loops.

Featuring 128kB of flash program memory and 16kB RAM, this device uses a modified Harvard architecture to efficiently manage programme and data storage. The 64-pin Thin Quad Flat Package (TQFP) provides a compact surface mount form factor optimized for modern PCB layouts requiring high pin density.

This DSP includes integrated peripherals such as 2 analog-to-digital converters (ADCs) offering 16 total channels with 19-bit resolution for precision sensing applications. It also supports 8 pulse width modulation (PWM) channels and 9 timer modules with 16-bit resolution to assist motor control, power management, and digital power supplies.

The DSPIC33FJ128MC706-I/PT operates from a 3V to 3.6V supply voltage and performs reliably across an industrial temperature range from -40°C to 85°C. It is compliant with the AEC-Q100 automotive quality standard, making it suitable for automotive and industrial embedded applications requiring high reliability.

Physically, the device measures approximately 10 mm in length and width, with a height of 1.05 mm, making it suitable for space-constrained designs.

Common industrial and commercial applications include motor control systems, digital power supplies, precision control algorithms, and advanced audio processing circuits within sectors such as industrial automation, automotive electronics, and consumer electronics.

Operates at 40 MHz clock frequency with 40 MIPS performance. Features 16-bit data bus width and modified Harvard architecture. Includes 128kB flash program memory and 16kB RAM. Supports 2 ADCs with 16 ADC channels at 19-bit resolution.

Equipped with 8 PWM channels and 9 timers with 16-bit resolution. Surface mount type suitable for compact PCB designs. Operating voltage ranges from 3V to 3.6V. Operating temperature range from -40°C to 85°C. AEC-Q100 automotive standard compliant.

Package dimensions approximately 10 mm x 10 mm x 1.05 mm. Explore more Microchip Digital Signal Processors and semiconductor products on EnvMart for your engineering and manufacturing needs.
