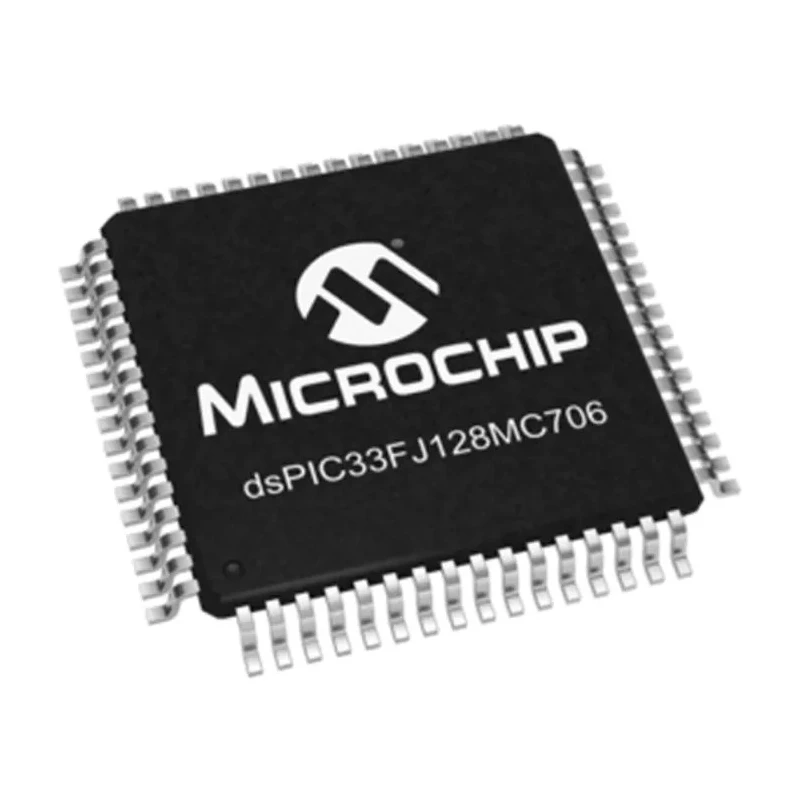

Microchip 16 bit Digital Signal Processor 40 MHz 128kB FLASH 64-Pin TQFP DSPIC33FJ128MC706-I/PT

Microchip DSPIC33FJ128MC706-I/PT is a 16 bit digital signal processor designed to deliver high performance with a maximum clock frequency of 40 MHz and 40 MIPS processing capability. It features 128kB of FLASH program memory and 16kB RAM, enabling effective execution of digital signal processing algorithms.

Built using a Modified Harvard architecture, this processor offers enhanced instruction throughput for digital filter algorithms, precision control loops, audio, and speech processing in industrial and automotive applications. The integrated peripherals include 2 high-resolution 19-bit ADCs covering 16 channels, and 8 PWM channels capable of 16-bit resolution, well-suited for motor control and switched-mode power supply designs.

This device is housed in a 64-Pin TQFP surface mount package measuring 10 mm x 10 mm with a thickness of 1.05 mm, allowing for compact PCB designs. It operates within a supply voltage range of 3 V to 3.6 V and is qualified to the automotive AEC-Q100 standard, ensuring reliability in harsh environments with an operating temperature range of -40°C to 85°C.

The dsPIC33F family combines DSP performance with MCU simplicity, making this model ideal for high-speed precision control and digital power supply schemes in industrial, automotive, and consumer electronics sectors.

This digital signal processor features a maximum clock frequency of 40 MHz. It delivers a processing speed of 40 MIPS (Million Instructions Per Second). The device includes 16kB of RAM and 128kB of FLASH program memory. Operates with a supply voltage range from 3 V minimum to 3.6 V maximum.

The package is surface mount type TQFP with 64 pins for integration. Includes 2 ADCs with 19-bit ADC resolution and 16 ADC channels. Features 8 PWM channels and 1 PWM unit for motor control and power supply applications.

Designed for operation in a temperature range from -40°C to 85°C complying with automotive standard AEC-Q100. The instruction set architecture is Modified Harvard, optimized for DSP applications. Physical package dimensions are length and width of 10 mm each and a height of 1.05 mm.
