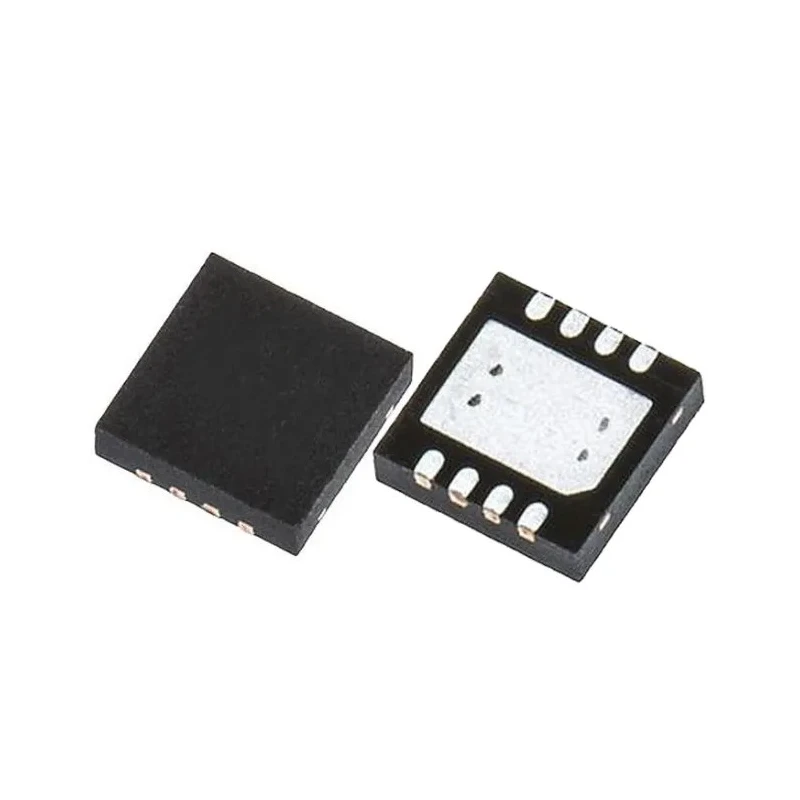

STMicroelectronics 32 kB EEPROM Serial-I2C 8-Pin UFDFPN Package M24C32-FMC6TG

STMicroelectronics M24C32-FMC6TG is a high-performance 32 kB EEPROM utilizing serial-I2C interface in a compact 8-pin UFDFPN surface mount package. Operating at supply voltages from 1.7 V to 5.5 V, this EEPROM supports a maximum clock frequency of 1 MHz, making it suitable for applications requiring fast and reliable non-volatile memory storage.

The device organization is 4k x 8 bits with an 8-bit word length and a page size of 32 bytes, allowing for efficient memory access and management. The M24C32-FMC6TG provides both random and sequential read modes, with write protection for the entire memory array as well as lockable write pages, ensuring data integrity and security.

Rated for operation between -40°C and 85°C, this EEPROM complies with the automotive AEC-Q100 standard and is RoHS compliant under the 2011/65/EU directive, supporting environmentally friendly manufacturing and automotive-grade applications.

The device includes enhanced ESD and latch-up protections and offers a supply current of 2.5 mA, with a maximum random access time of 450 ns. The data retention capability exceeds 200 years, guaranteeing long-term reliability in industrial, automotive, consumer electronics, and communication system use cases.

Package dimensions measure 2.1 mm in length, 3 mm in width, and 600 μm in height, making this EEPROM suitable for high-density PCB layouts demanding compact footprints. Operates with supply voltage from 1.7 V to 5.5 V ensuring wide compatibility.

Data retention exceeds 200 years for reliable long-term storage. Maximum clock frequency of 1 MHz supports fast data transfer. Complies with RoHS 2011/65/EU standard for environmental safety. Supports several I2C bus modes including 1 MHz, 400 kHz, and 100 kHz.

Offers enhanced ESD and latch-up protection for improved durability. Automotive standard AEC-Q100 certification enables use in automotive applications. Page size of 32 bytes with write times within 5 ms for efficiency. Temperature range from -40°C to 85°C for robust environmental tolerance.

Package dimensions: 2.1 mm length, 3 mm width, and 600 μm height.

This EEPROM is extensively used in automotive electronics, industrial automation, consumer gadgets, and communication equipment where reliable, non-volatile memory with fast access times and robust environmental tolerance is critical. Explore EnvMart’s semiconductor and memory chip offerings to find compatible components and solutions.
