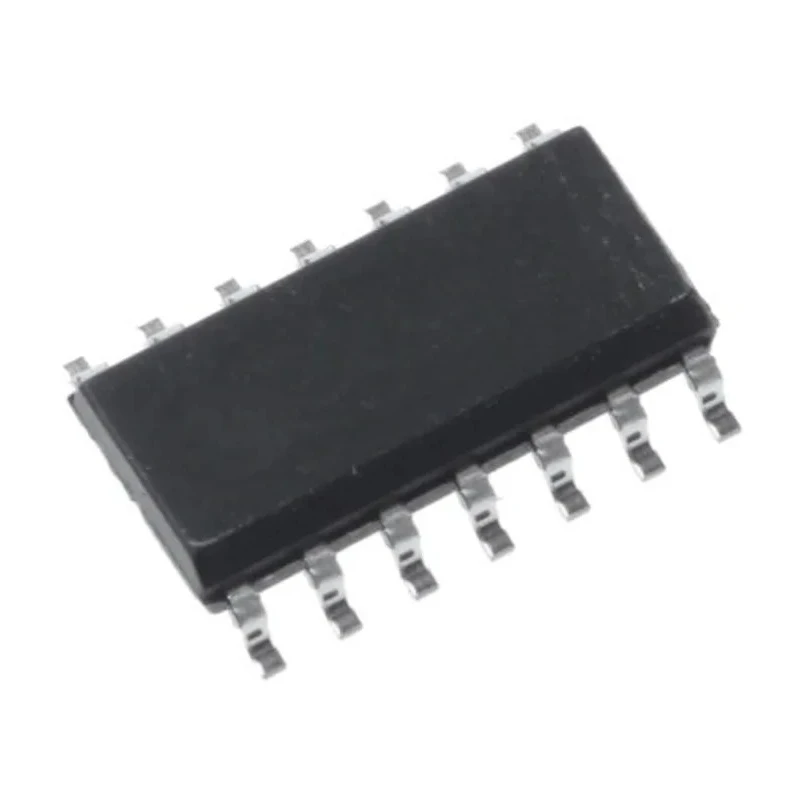

Maxim Integrated Multiplexer 1 CMOS Single 4:1, 14-Pin SO-16 MAX4518CSD+

Maxim Integrated MAX4518CSD+ multiplexer is a high-quality semiconductor device featuring a single 4:1 CMOS logic multiplexer configured in a 14-pin SO-16 surface mount package. It offers excellent electrical characteristics suitable for a wide range of industrial, communication, and military applications.

This multiplexer belongs to the CMOS logic family and supports both single and bipolar supply voltage operation from -2.7V to 15V, allowing flexible usage scenarios. It provides a maximum on-state resistance of 125Ω with guaranteed low charge injection and leakage currents, ensuring signal integrity and low power consumption below 300μW.

The device supports rail-to-rail signal handling and is compatible with TTL and CMOS logic levels. It includes electrostatic discharge protection greater than 2000V to safeguard sensitive electronics. Operating in temperatures ranging from 0°C to 70°C, it is designed for durability in varying environments.

Typical applications include audio signal routing, battery-powered devices, automated test equipment (ATE), communication systems, guidance and control systems, heads-up displays, low-voltage data acquisition, military radios, PBX systems, and sample-and-hold circuits. This versatility makes it a reliable choice for complex electronics systems.

Package details feature a compact SO-16 form factor with approximate dimensions of 8.75mm length, 4mm width, and 1.5mm height, optimized for surface mounting on PCBs. High-performance CMOS logic family for reliable operation.

Single 4:1 multiplexing with guaranteed on-resistance below 125Ω. Wide supply voltage range from -2.7V to 15V supports versatile applications. Operating temperature range from 0°C to 70°C for robust performance. Low power consumption under 300μW enhances energy efficiency.

Electrostatic discharge protection exceeding 2000V. Rail-to-rail signal handling compatible with TTL and CMOS logic levels. Package dimensions: 8.75mm length, 4mm width, and 1.5mm height. Ideal for audio signal routing, automated test equipment, communication systems, and military radios.

Surface mount SO-16 package for compact PCB design integration. Explore more semiconductor components and multiplexers at EnvMart to find reliable solutions engineered for precision and performance.
