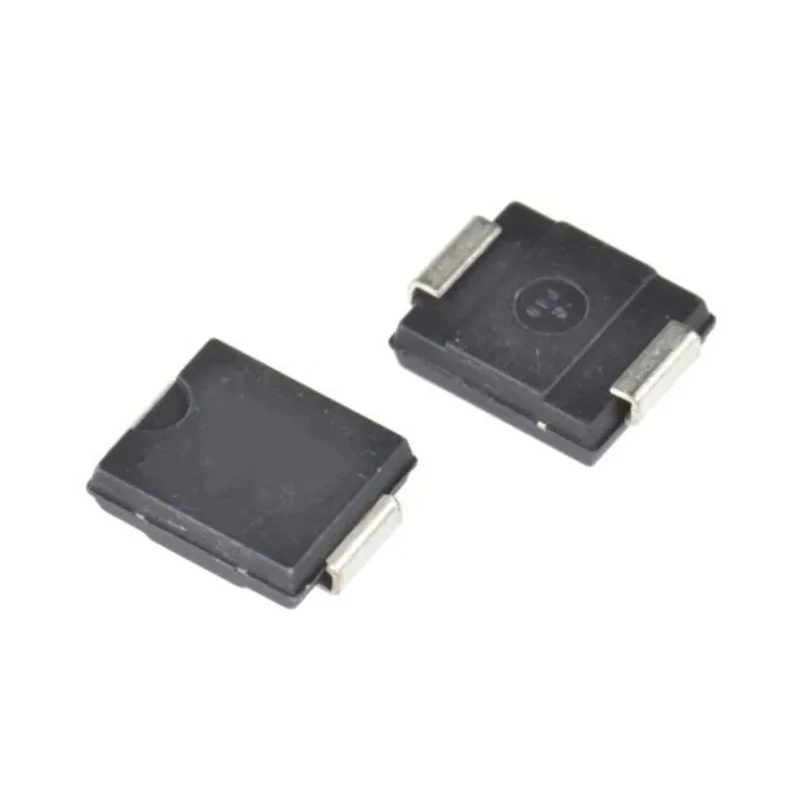

STMicroelectronics 60 V 3 A Schottky Diode Surface Mount DO-214AA STPS5L60SY

STMicroelectronics STPS5L60SY Schottky Diode is a high-efficiency 60 V, 3 A power diode designed for surface mount applications in electronic devices. Packaged in a compact DO-214AA format, this device is ideal for use in switch mode power supplies, small battery chargers, and battery protection circuits, especially within automotive applications that require low voltage outputs.

The diode features a low forward voltage drop of 790 mV, which minimizes power loss and enhances overall circuit efficiency. It is rated for a continuous forward current of 3 amperes and can withstand a peak reverse repetitive voltage of 60 volts, making it suitable for demanding electrical environments.

With a peak non-repetitive forward surge current of 100 amperes, the STPS5L60SY offers excellent surge tolerance for transient conditions. Its operating temperature range is wide, from -65°C up to 175°C, ensuring reliability in harsh conditions.

The diode's physical dimensions are compact, measuring 7.15 mm in length, 6.25 mm in width, and 2.45 mm in height, which facilitates high-density PCB layouts. Its 2-pin single diode configuration allows easy integration into power rectification and conversion circuits.

This Schottky rectifier offers low thermal resistance, aiding in efficient heat management during operation. It does not have specific automotive certifications, but its attributes make it suited for automotive, industrial, and commercial electronic applications requiring efficient, high-frequency rectification.

Low forward voltage drop for energy-efficient switching. Maximum continuous forward current of 3 A. Rated peak reverse voltage of 60 V to handle voltage spikes. Robust surge current rating at 100 A. Wide operating temperature range (-65°C to 175°C) ensures reliability.

Compact DO-214AA surface mount package. 2-pin diode configuration suitable for PCB assembly. Low thermal resistance for superior heat dissipation. Designed for switch mode power supplies and high-frequency inverters.

This diode is a dependable component for industrial, automotive, power supply, and electronic manufacturing sectors. It contributes to efficient circuit performance where minimizing switching losses and power dissipation is critical.
