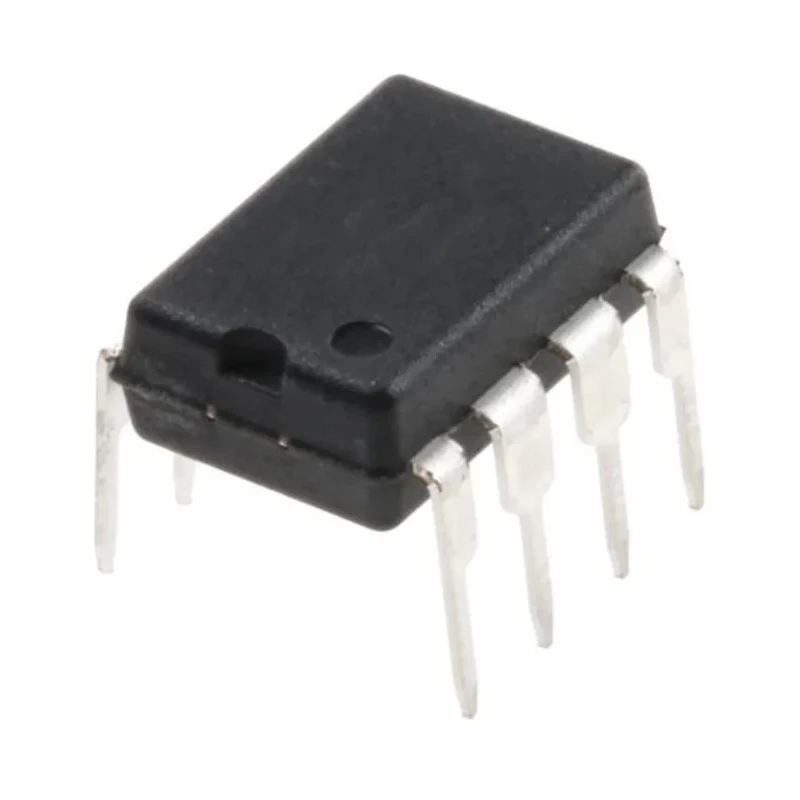

onsemi DC Input Optocoupler Through Hole 8-Pin PDIP, 1.8V Forward Voltage, 16mA Max Input Current, 5000Vrms FOD3125

onsemi FOD3125 DC Input Optocoupler is a robust semiconducting device housed in a through-hole 8-pin PDIP package. It is engineered to deliver a 2.5 A peak output current gate drive suitable for medium power IGBT and MOSFET devices used predominantly in motor control inverter and power electronics system applications. Featuring ON Semiconductor's Optoplanar technology, it promises high noise immunity and enhanced common mode rejection, ensuring reliable and high-speed switching performance up to 125°C.

The device integrates a gallium aluminium arsenide (AlGaAs) LED optically coupled to an IC optimized for push-pull MOSFET output stage, delivering output voltage swings close to the supply rail. Operating over a wide supply voltage range from 15 V to 30 V, with fast switching times including 60 ns typical rise and fall times, it supports demanding industrial inverter, uninterruptible power supplies, induction heating, and isolated gate drive applications.

The FOD3125 includes an under-voltage lockout (UVLO) with hysteresis to protect against supply voltage variations, and complies with standards including UL1577 and pending DIN EN/IEC60747-5-5 approvals. It is packaged in tape and reel format suitable for high-volume automated PCB assembly.

Provides 2.5 A peak output current for driving medium power IGBTs and MOSFETs. Wide operating temperature range from -40°C to 125°C for industrial environments. High isolation voltage of 5000 Vrms ensures electrical safety and signal integrity.

Fast switching speed with typical 60 ns rise and fall times for efficient operation. Uses Optoplanar® coplanar packaging technology for enhanced noise immunity. Incorporates UVLO with hysteresis for reliable voltage threshold protection.

Logic output available with P-channel MOSFET-based output stage. Packaged in 8-pin PDIP through-hole form factor for easy integration.

This optocoupler is ideal for applications in industrial inverters, uninterruptible power supplies, induction heating equipment, and isolated IGBT or MOSFET gate drive circuits. It ensures fast, reliable, and safe optoelectronic isolation between control and power circuits in harsh industrial environments.
