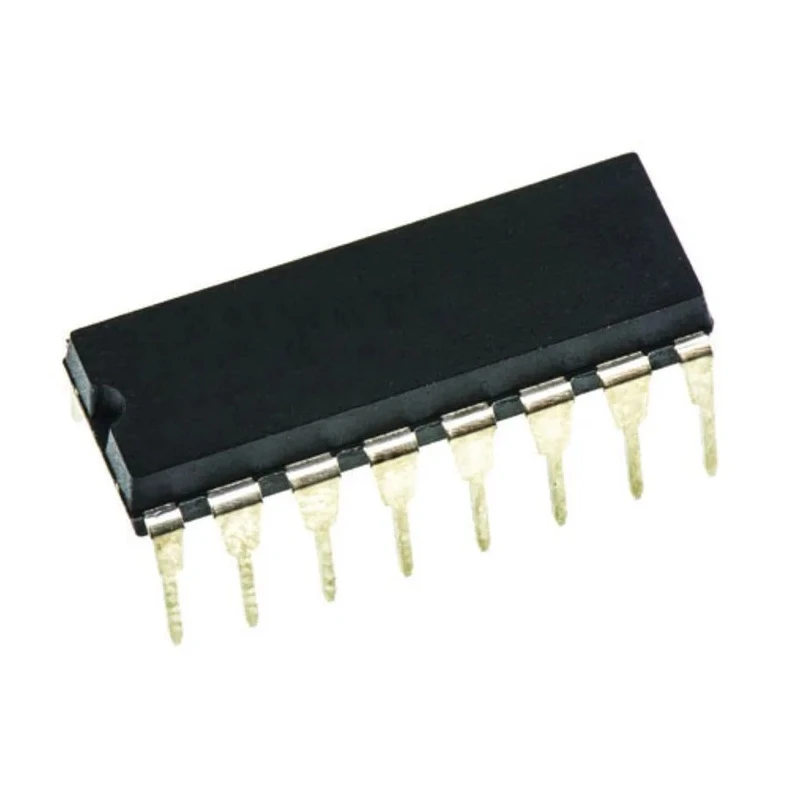

Texas Instruments 8 Bit Digital to Analogue Converter, Parallel Interface, 16-Pin MDIP DAC0808LCN/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 8 bit |
| Brand | Texas Instruments |
| Height | 19.05mm |
| Model | DAC0808LCN/NOPB |
| Mount Type | Through Hole |
| Settling Time | 0.15μs |
| Series | DAC0808 |
| Maximum Operating Temperature | 75°C |
| Package Type | MDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Interface Type | Parallel |
| Architecture | R-2R, Resistor String |
| Standards/Approvals | REACH, RoHS |
| Pin Count | 16 |
Key Features
- Features R-2R resistor string architecture for precise conversion.
- Offers 8-bit resolution for accurate analog output signals.
- Single channel design suitable for various electronic applications.
- Mount type is through hole with a 16-pin MDIP package.
- Fast settling time of 0.15 microseconds for quick response.
- Operates within temperature range from 0°C to 75°C.
- Utilizes an external voltage reference for flexibility.
- Complies with REACH and RoHS environmental standards.
Product Description
Texas Instruments DAC0808LCN/NOPB is an 8 Bit Digital to Analogue Converter featuring a parallel interface and housed in a 16-Pin MDIP package. It employs a precise R-2R resistor string architecture providing reliable 8-bit resolution. The device is designed for single channel usage and mounts through hole, suitable for diverse PCB layouts.
This DAC offers a swift settling time of 0.15 microseconds, facilitating rapid analog output transitions. It operates efficiently across a temperature range of 0°C to 75°C, making it adaptable to various industrial and laboratory environments. The converter requires an external voltage reference, offering design flexibility for end applications.
Texas Instruments ensures compliance with REACH and RoHS standards, emphasizing environmental safety. While it is not automotive certified, this model excels in industrial electronics, embedded system development, and instrumentation where precise digital-to-analog conversion is critical.
R-2R resistor string architecture ensures accurate analog signal generation. 8-bit resolution provides fine digital signal conversion. Single channel supports one output line for DAC. Through hole mounting with 16-pin MDIP package allows robust PCB integration.
Fast settling time of 0.15μs minimizes signal delay. Operating temperature range from 0°C to 75°C suits varied environments. External voltage reference allows precision control. Compliant with REACH and RoHS environmental regulations.
Suitable for embedded systems, data acquisition, and industrial instrumentation.
This Digital to Analogue Converter is a key component in electronics and semiconductor applications that require precise analog control from digital signals. It is ideal for engineering projects, automated control systems, and laboratory instruments where reliability and accuracy are paramount. Explore similar products and additional technical resources on EnvMart for your semiconductor and data conversion needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model offers an 8-bit resolution for accurate analog output signals.
It features a fast settling time of 0.15 microseconds, allowing for quick response in applications.
This unit operates efficiently within a temperature range of 0°C to 75°C.
It is designed for single channel usage, supporting one output line for the DAC.
The DAC0808LCN/NOPB utilizes a parallel interface for data communication.
This digital to analogue converter is housed in a 16-pin MDIP package.
It employs an R-2R resistor string architecture for precise digital-to-analog conversion.
The height of this unit is 19.05mm.
It complies with REACH and RoHS environmental standards, emphasizing safety in its design.
Yes, it is suitable for various industrial electronics, embedded system development, and instrumentation.
The country of origin for this model is India.
Yes, it utilizes an external voltage reference for flexibility in design applications.
