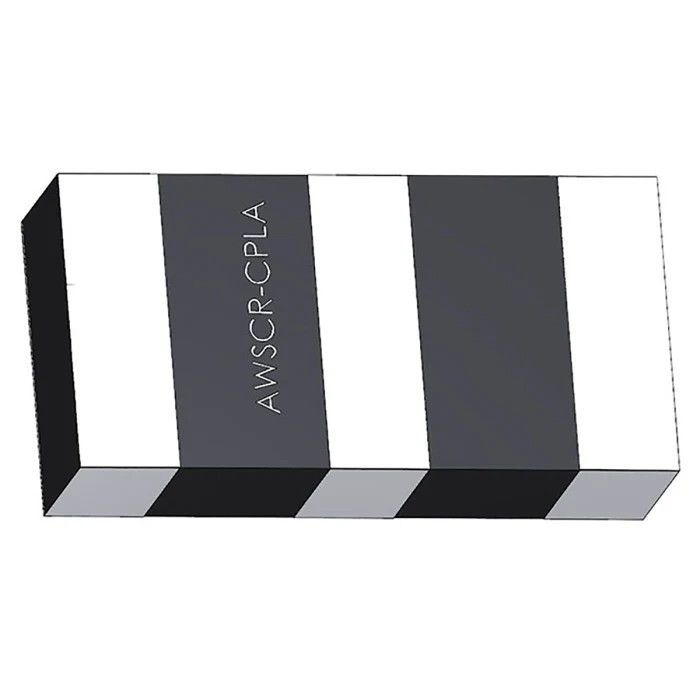

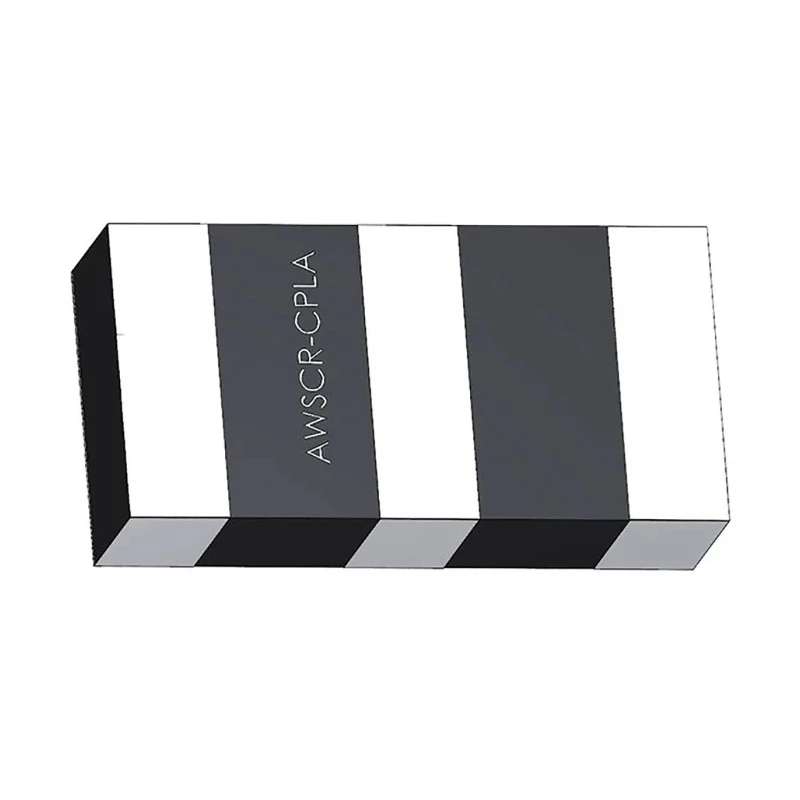

Abracon Ceramic Resonator, 8 MHz Frequency, 15 pF Load Capacitance, 3-Pin Surface Mount Tape & Reel AWSCR-8.00CPLA-C15-T4
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1.5mm |
| Length | 6mm |
| Model | AWSCR-8.00CPLA-C15-T4 |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Surface |
| Series | AWSCR-CPLA |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 15pF |
| Resonance Frequency | 8MHz |
| Resonance Resistance | 30Ω |
Key Features
- Operates at resonance frequency of 8 MHz with ±0.5% frequency tolerance.
- Incorporates 15 pF load capacitance and low 30 Ω resonance resistance.
- Designed for surface mount with 3 pins and solder termination.
- Compact dimensions of 6 mm length, 3 mm width, and 1.5 mm height.
- Robust operating temperature range from -40°C to 85°C suitable for industrial environments.
- Meets RoHS compliance and built with standard AWSCR-CPLA series footprint.
- Ideal for metering systems, remote controls, microprocessor clocking, and industrial controls.
Product Description
Abracon AWSCR-8.00CPLA-C15-T4 ceramic resonator is a precision 8 MHz, 3-pin surface mount component featuring a load capacitance of 15 pF and low resonance resistance of 30 ohms. Packaged in Tape & Reel form, this device is designed to meet stringent industry requirements with its compact dimensions of 6 mm length, 3 mm width, and 1.5 mm height.
This resonator operates reliably over a wide temperature range from -40°C to 85°C, making it suitable for demanding applications in metering systems, remote controls, microprocessor timing circuits, and various industrial control systems. Its frequency tolerance of ±0.5%, along with frequency ageing at ±0.1% and stability of ±0.3%, ensures precise and stable oscillation characteristics.
Constructed with surface mount technology and solder termination, it complies with RoHS standards and belongs to the AWSCR-CPLA product series, favored for its industry-standard footprint and performance characteristics.
Resonance frequency of 8 MHz with ±0.5% tolerance. Load capacitance of 15 pF and resonance resistance at 30 Ω. Compact surface mount design for ease of PCB assembly. Wide operating temperature range from -40°C to 85°C for extended use.
Compliance with RoHS environmental standards. Frequency ageing ±0.1% and frequency stability ±0.3% for long-term reliability. Application in metering, remote control, microprocessor, and industrial systems.
This Abracon ceramic resonator is a reliable component crucial for electronic oscillator circuits in a variety of industrial, manufacturing, and consumer electronics applications. Its packaging in Tape & Reel format facilitates efficient automated pick-and-place assembly processing, streamlining high-volume production requirements.
Explore a wide range of Ceramic Resonators and electronic components for precision frequency control and timing applications within the EnvMart industrial electronics catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this ceramic resonator is 8 MHz.
It has a load capacitance of 15 pF.
The resonance resistance is 30 Ω.
The dimensions are 6 mm in length, 3 mm in width, and 1.5 mm in height.
It operates within a temperature range of -40°C to 85°C.
It is packaged in Tape & Reel format, facilitating automated assembly processes.
This model supports surface mounting with solder termination.
It complies with RoHS environmental standards.
The frequency tolerance is ±0.5%.
It is suitable for applications in metering systems, remote controls, microprocessor clocking, and industrial controls.
The frequency stability is ±0.3%.
The country of origin is China.
