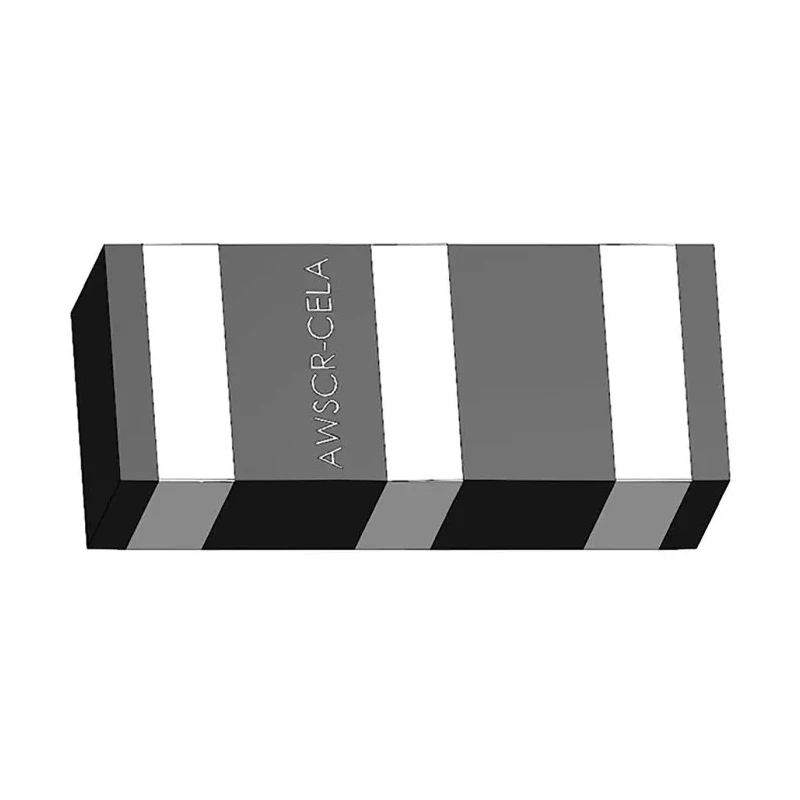

Abracon Ceramic Resonator 8 MHz 10 pF 3-Pin Surface Mount Tape & Reel AWSCR-8.00CELA-C10-T3
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1mm |
| Length | 3.2mm |
| Model | AWSCR-8.00CELA-C10-T3 |
| Packaging | Tape & Reel |
| Width | 1.3mm |
| Mount Type | Surface |
| Series | AWSCR-CELA |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 10pF |
| Resonance Frequency | 8MHz |
| Resonance Resistance | 40Ω |
Key Features
- This resonator features a 3-pin configuration optimized for solder termination.
- It is supplied in tape & reel packaging suitable for automated assembly.
- The device operates reliably within a temperature range of -40°C to 85°C.
- Resonance resistance is low at 40Ω to support efficient oscillation.
- Compact package dimensions with length of 3.2 mm, width 1.3 mm, and height 1 mm.
- The AWSCR-CELA series meets RoHS compliance for environmental safety.
- Designed for applications including metering systems, remote controls, microprocessors, industrial control, and electric appliances.
Product Description
Abracon AWSCR-8.00CELA-C10-T3 Ceramic Resonator is a surface mount device designed to provide an 8 MHz frequency with 10 pF load capacitance, packaged on tape & reel for high-volume manufacturing. It features a 3-pin solder termination and compact dimensions (3.2 mm length, 1.3 mm width, and 1 mm height) suitable for modern electronics.
This ceramic resonator offers a frequency tolerance of ±0.5%, frequency stability and ageing within ±0.2%, and a resonance resistance of 40 Ω, ensuring consistent oscillator performance in precision applications. Operating temperature range extends from -40°C to 85°C, enabling use in extended industrial environments.
The AWSCR-CELA series complies with RoHS environmental standards and is manufactured in China. It is widely utilized in metering systems, remote controls, microprocessor clock circuits, industrial control systems, and various electric appliances where stable frequency references are essential.
The resonator’s tape & reel packaging supports automated placement in manufacturing, enhancing productivity and component handling. Its industry standard footprint ensures compatibility with existing PCB designs and assembly processes.
This resonator features a 3-pin configuration optimized for solder termination. It is supplied in tape & reel packaging suitable for automated assembly. The device operates reliably within a temperature range of -40°C to 85°C.
Frequency tolerance is tightly controlled at ±0.5% ensuring high precision. Resonance resistance is low at 40Ω to support efficient oscillation. Compact package dimensions with length of 3.2 mm, width 1.3 mm, and height 1 mm.
The AWSCR-CELA series meets RoHS compliance for environmental safety. Designed for applications including metering systems, remote controls, microprocessors, industrial control, and electric appliances.
Suitable for industrial, commercial, and electronic manufacturing applications, Abracon ceramic resonators deliver precision frequency control critical for timing circuits and oscillators.
Explore more high quality electronic components and Ceramic Resonators in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this model is 8 MHz.
This resonator has a load capacitance of 10 pF.
The dimensions of this unit are 3.2 mm in length, 1.3 mm in width, and 1 mm in height.
It operates reliably within a temperature range of -40°C to 85°C.
The resonance resistance is low at 40Ω, which supports efficient oscillation.
It is supplied in tape & reel packaging, suitable for automated assembly.
This model features a solder termination type.
The AWSCR-CELA series meets RoHS compliance for environmental safety.
It is designed for applications including metering systems, remote controls, microprocessors, industrial control, and electric appliances.
This ceramic resonator has a pin count of 3.
The country of origin for this model is China.
This model belongs to the AWSCR-CELA series.
