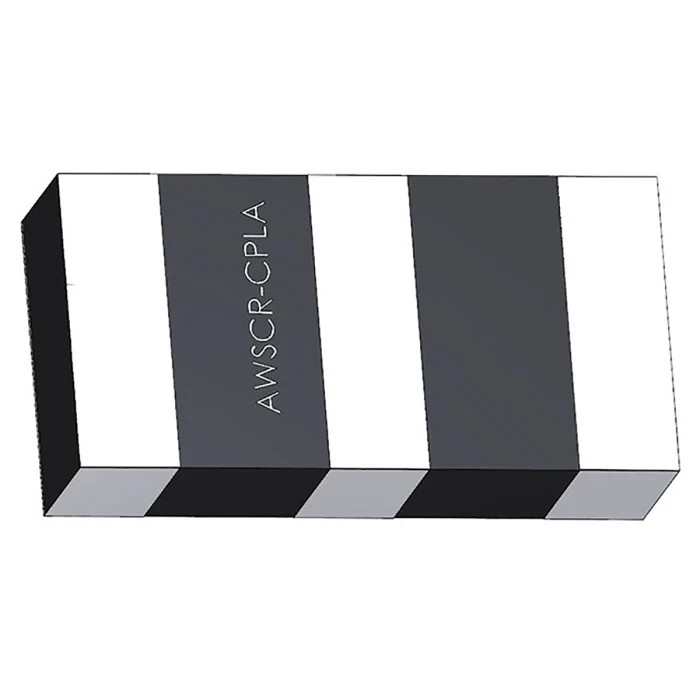

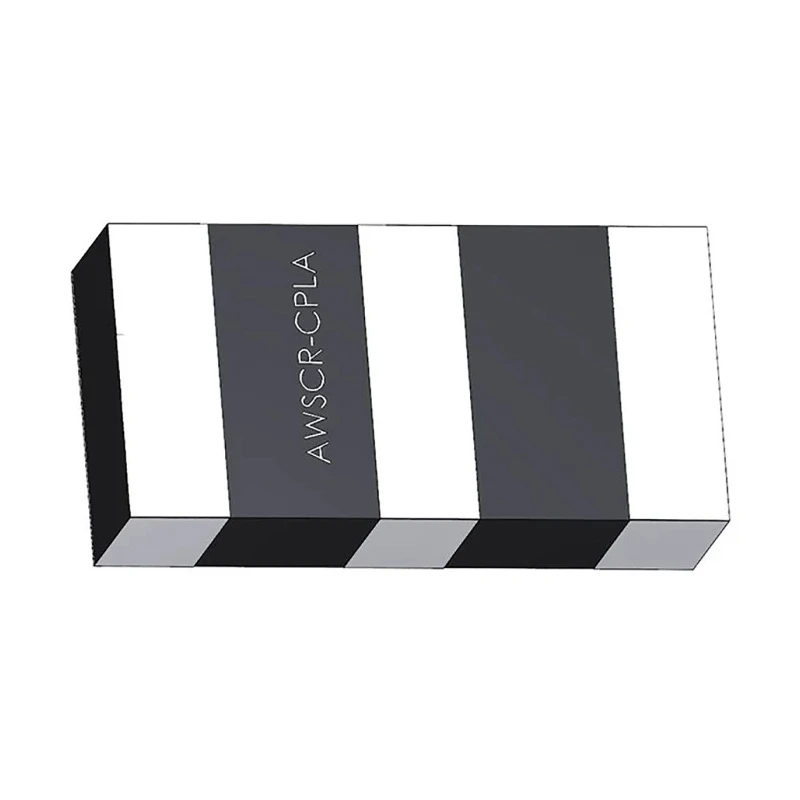

Abracon Ceramic Resonator 3.58 MHz 47 pF 3-Pin Tape & Reel AWSCR-3.58CPLA-C47-T4
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1.5mm |
| Length | 6mm |
| Model | AWSCR-3.58CPLA-C47-T4 |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Surface |
| Series | AWSCR-CPLA |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 47pF |
| Resonance Frequency | 3.58MHz |
| Resonance Resistance | 30Ω |
Key Features
- Operates with ±0.5% frequency tolerance for precise timing applications.
- Packaged in tape and reel suitable for automated SMT assembly.
- Compact dimensions of 6 mm length, 3 mm width, and 1.5 mm height.
- Wide operating temperature range from -40°C to 85°C for robust performance.
- Features low resonance resistance of 30Ω optimizing signal integrity.
- Termination type is solder, compatible with standard mounting processes.
- Complies with RoHS standards ensuring environmental compliance.
- Designed for metering, remote control, industrial control, and electronic appliance applications.
Product Description
Abracon AWSCR-3.58CPLA-C47-T4 Ceramic Resonator is a high-quality passive electronic component designed to provide precise oscillation at 3.58 MHz frequency with a load capacitance of 47 pF. This surface mount device comes in a tape and reel package with 3 pins, tailored for automated PCB assembly processes.
The resonator offers a narrow ±0.5% frequency tolerance and ±0.3% frequency stability, making it suitable for applications that demand accurate timing signals. It operates reliably over a wide temperature span from -40°C to 85°C, ensuring consistent performance in various industrial and commercial environments.
With a resonance resistance of 30Ω and frequency aging of ±0.1%, this resonator maintains signal integrity and long-term frequency stability. Its compact form factor measures 6 mm in length, 3 mm in width, and 1.5 mm in height, making it ideal for space-constrained electronic designs.
Compliance with RoHS standards guarantees that the component meets environmental regulations. Its solder termination ensures compatibility with common surface mount technology processes.
Common applications include metering systems, remote controls, microprocessor timing circuits, industrial controls, and general electric appliances. The resonator is part of the AWSCR-CPLA series, recognized for its industry-standard footprint and performance.
Operates with ±0.5% frequency tolerance for precise timing applications. Packaged in tape and reel suitable for automated SMT assembly. Compact dimensions of 6 mm length, 3 mm width, and 1.5 mm height. Wide operating temperature range from -40°C to 85°C for robust performance.
Features low resonance resistance of 30Ω optimizing signal integrity. Frequency ageing is ±0.1% ensuring long-term stability. Termination type is solder, compatible with standard mounting processes. Complies with RoHS standards ensuring environmental compliance.
Designed for metering, remote control, industrial control, and electronic appliance applications. Manufactured in China with industry standard AWSCR-CPLA series footprint. Explore more electronic components and resonators on EnvMart for your industrial, manufacturing, and engineering projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this model is 3.58 MHz, making it suitable for precise timing applications.
The load capacitance for this ceramic resonator is 47 pF, which is essential for its operation in timing circuits.
This unit measures 6 mm in length, 3 mm in width, and 1.5 mm in height, making it compact for various applications.
It operates over a wide temperature range from -40°C to 85°C, ensuring reliable performance in diverse environments.
The resonance resistance is 30Ω, which helps optimize signal integrity during operation.
It is packaged in tape and reel format, which is suitable for automated surface mount technology (SMT) assembly processes.
The termination type is solder, ensuring compatibility with standard mounting processes in electronic assemblies.
This model complies with RoHS standards, ensuring it meets environmental regulations.
Common applications include metering systems, remote controls, industrial controls, and electronic appliances.
The frequency aging is ±0.1%, which contributes to its long-term frequency stability.
This ceramic resonator has 3 pins, suitable for various electronic configurations.
It is part of the AWSCR-CPLA series, recognized for its industry-standard footprint and performance.
