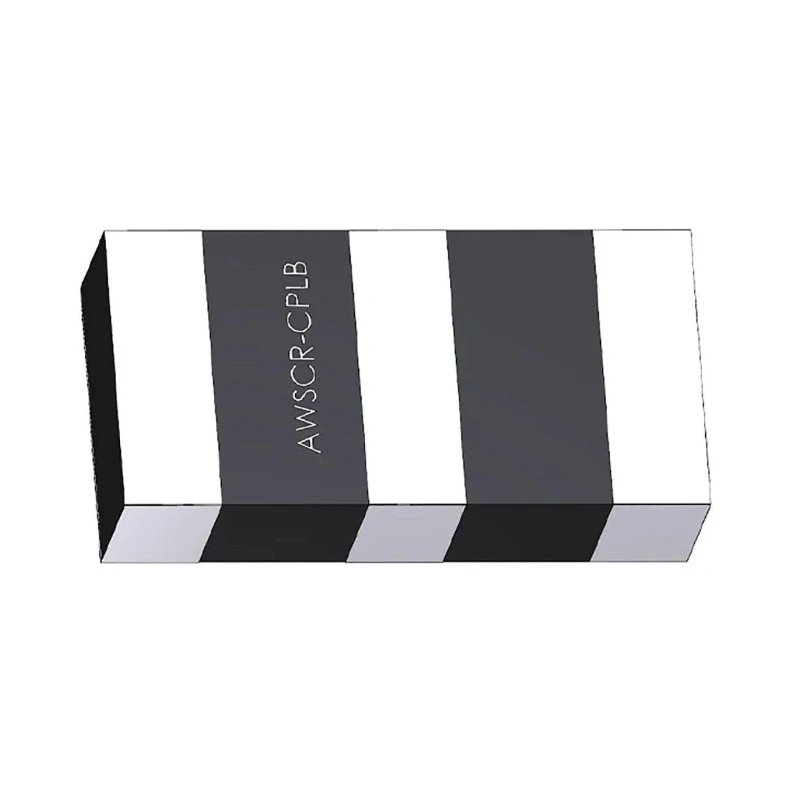

Abracon Ceramic Resonator 2 MHz 15 pF 3-Pin Tape & Reel Surface Mount AWSCR-2.00CPLB-C15-T4
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1.8mm |
| Length | 6mm |
| Model | AWSCR-2.00CPLB-C15-T4 |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Surface |
| Series | AWSCR-CPLB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 15pF |
| Resonance Frequency | 2MHz |
| Resonance Resistance | 100Ω |
Key Features
- Resonance frequency is precisely 2 MHz ideal for timing applications.
- Built-in load capacitance of 15 pF stabilizes oscillations accurately.
- Surface mount type ensures compact PCB footprint with 3-pin configuration.
- Operates reliably across wide temperature range from -40°C to 125°C.
- Package supplied in Tape & Reel format suitable for automated SMT assembly.
- Resonance resistance of 100Ω offers low impedance for efficient signal performance.
- Meets RoHS compliance standards for environmental safety.
- Ideal for industrial, metering, microprocessor control, and remote control systems.
Product Description
Abracon AWSCR-2.00CPLB-C15-T4 Ceramic Resonator delivers a resonance frequency of 2 MHz with a 15 pF load capacitance, designed specifically for surface mount technology applications. Its 3-pin configuration and Tape & Reel packaging facilitate efficient automated PCB assembly, making it highly suitable for high-volume industrial manufacturing.
This resonator exhibits a frequency tolerance of ±0.5%, frequency ageing of ±0.1%, and frequency stability of ±0.4%, ensuring precise and stable oscillation frequency over the device's lifespan. Its resonance resistance of 100Ω enables low impedance signal transmission for optimized performance.
Designed to operate in a wide temperature range from -40°C to 125°C, this component remains stable and reliable in demanding industrial or commercial environments such as metering systems, industrial control, microprocessor applications, and electric appliances.
Precise 2 MHz resonance frequency for timing applications. 15 pF load capacitance integrated for stability. Surface mount with 3-pin lead configuration. Tape & Reel packaging optimized for automated SMT usage. Wide operating temperature range from -40°C to 125°C.
Low resonance resistance of 100Ω enhances performance. Compact dimensions: 6 mm length, 3 mm width, 1.8 mm height. RoHS compliant for eco-friendly manufacturing. Manufactured in China under the AWSCR-CPLB series by Abracon.
These characteristics make the Abracon AWSCR-2.00CPLB-C15-T4 resonator ideally suited for precision industrial electronic components requiring stable oscillation frequencies. Its proven reliability and compliant manufacturing uphold quality standards demanded in industries such as metering, industrial control, and remote control systems.
Explore more products in our Ceramic Resonator category and related Electronics Components at EnvMart to enhance your electronic design and manufacturing capabilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this model is precisely 2 MHz, making it suitable for timing applications.
It has a built-in load capacitance of 15 pF, which stabilizes oscillations accurately.
The dimensions are 6 mm in length, 3 mm in width, and 1.8 mm in height.
It operates reliably across a wide temperature range from -40°C to 125°C.
It is supplied in Tape & Reel format, which is suitable for automated SMT assembly.
The resonance resistance is 100Ω, which offers low impedance for efficient signal performance.
The termination type is solder, which is standard for surface mount applications.
It meets RoHS compliance standards for environmental safety.
This resonator features a 3-pin configuration.
It is ideal for industrial, metering, microprocessor control, and remote control systems.
It has a frequency stability of ±0.4%, ensuring precise oscillation frequency over its lifespan.
The frequency tolerance is ±0.5%, which contributes to its accuracy in timing applications.
