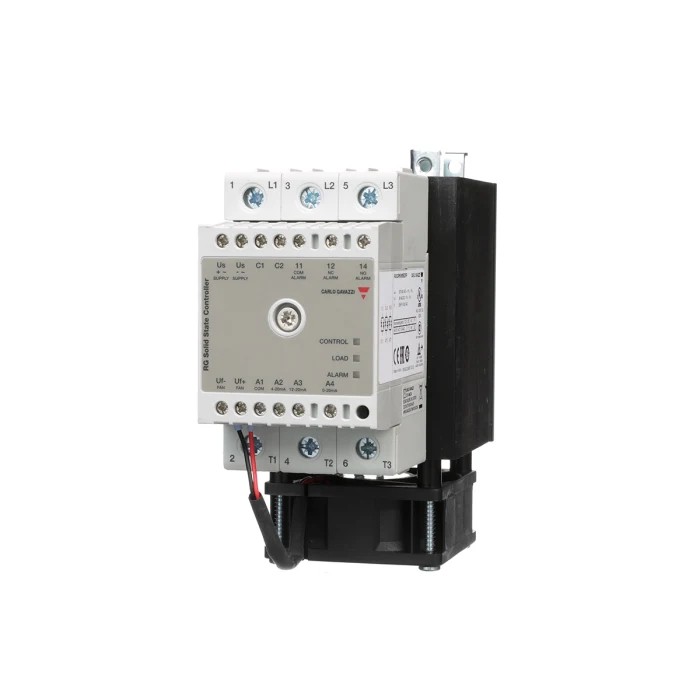

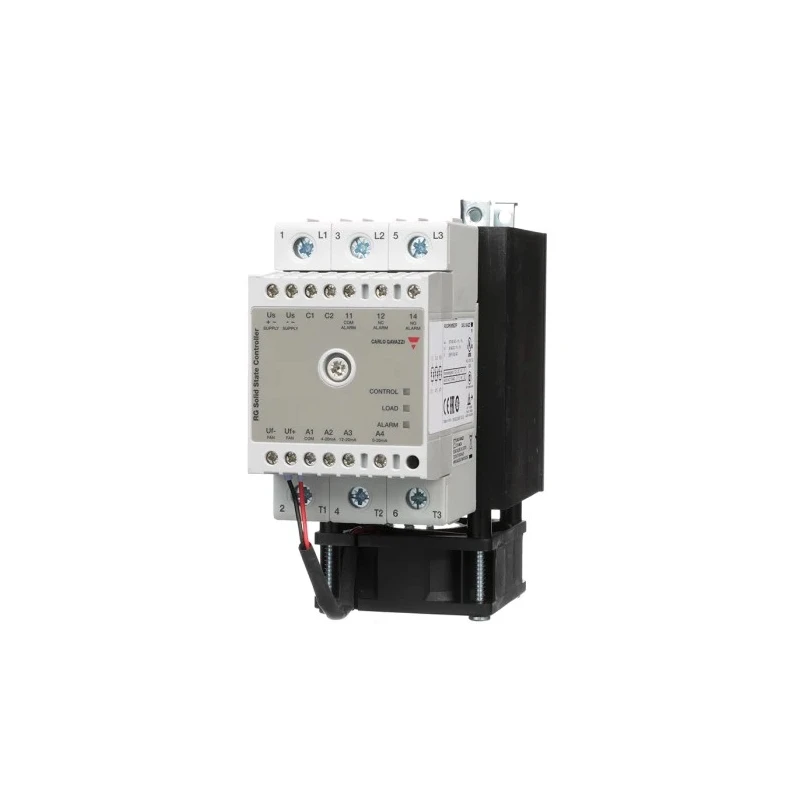

Carlo Gavazzi Solid State Relay RGC3P Series, 71 A Load, DIN Rail Mount, 660 V AC Load, 10V Control

Carlo Gavazzi RGC3P60V65C1DFM solid state relay is engineered to provide reliable and precise switching capabilities in industrial electrical and automation applications. With a maximum load current rating of 71 A and rated operational voltage of up to 660 V AC, it suits demanding power control scenarios. This relay is designed for DIN rail mounting, simplifying integration into control panels and electrical enclosures.

The unit supports analogue switching for 2-pole or 3-pole contacts and offers proportional switching function with selectable phase angle or distributed full cycles, enhancing process control accuracy. Control voltage inputs accept a wide range of signals, including 0-20mA, 4-20mA, and 0-10V, making it compatible with various control systems.

The relay features a soft start function with ramp times selectable up to 5 seconds, reducing mechanical and electrical stress upon load initiation. An integrated varistor protects the output by suppressing voltage spikes, improving durability and longevity.

Operational temperatures range from -40°C to 70°C ensuring performance stability in industrial environments. Monitoring facilities include SSR and load malfunction detection and an EMR output for alarm indication, aiding in system diagnostics and maintenance.

Its compact size with a length of 72mm and height of 141mm allows installation in standard DIN rail configurations. The screw terminal type ensures secure electrical connections. This product conforms to RoHS standards and is manufactured in Malta, emphasizing quality and compliance.

Ideal applications include industrial automation systems, electrical control panels, HVAC, manufacturing equipment control, and other commercial uses requiring reliable solid state switching with precise control input.

Supports 2-pole and 3-pole analogue switching for solid state contactors. Rated operational voltage up to 660 V AC and current up to 75 A AC maximum. Control inputs accept multiple signals including 0-20mA and 0-10V ranges.

Phase angle and distributed full cycle switching modes enhance control precision. Soft start with ramp time up to 5 seconds minimizes load stress. Integrated varistor protection safeguards output against voltage spikes. Monitoring outputs notify SSR status and load malfunctions with alarm signal.

Wide operating temperature range from -40°C to 70°C ensures versatility. Compact DIN rail mountable size with screw terminals for easy installation. Explore EnvMart's comprehensive catalog for reliable Solid State Relays and other industrial electrical control solutions from Carlo Gavazzi and leading brands.
