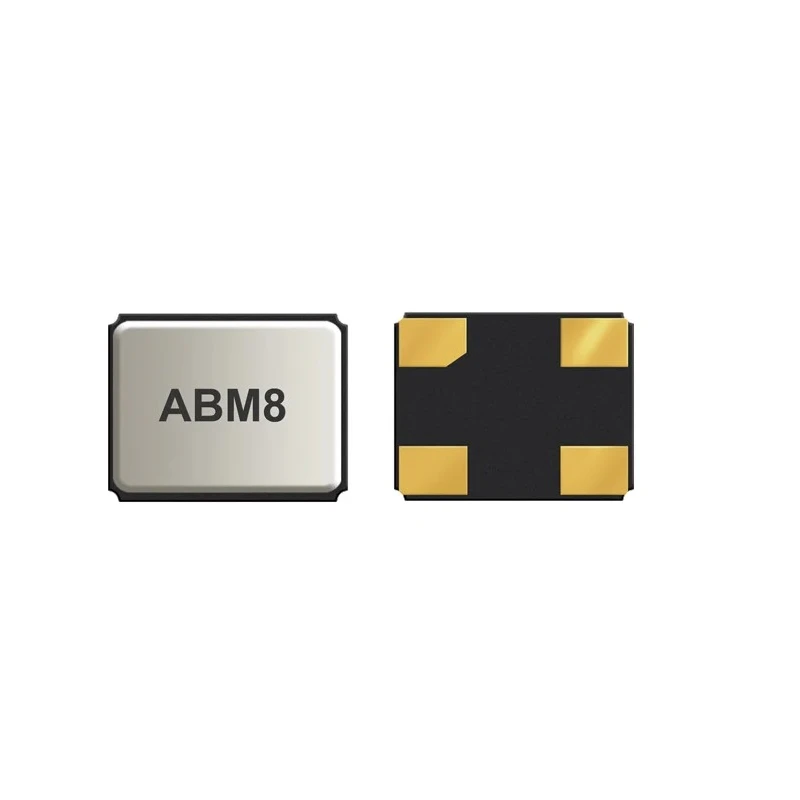

Abracon 25 MHz Crystal Unit Surface Mount 4-Pin 3.2 mm x 2.5 mm x 0.8 mm ±10 ppm Frequency Tolerance ABM8-25.000MHz-12-D1X-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.8mm |
| Length | 3.2mm |
| Model | ABM8-25.000MHz-12-D1X-T |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 25MHz |
| Load Capacitance | 12pF |
| Series Resistance | 50Ω |
Key Features
- Operates at a standard frequency of 25 MHz with ±10 ppm frequency tolerance and ±20 ppm frequency stability.
- Features a low height profile with a maximum height of 0.8 mm suitable for thin electronic equipment.
- Surface mount package with tape and reel packaging for efficient automated assembly.
- Tight tolerance with 12 pF load capacitance and 50 Ω series resistance.
- Operating temperature range from -40°C to 85°C for diverse environmental conditions.
- Seam sealed package ensures high reliability and stability under various operating conditions.
- Pin count of 4 pins with package dimensions of 3.2 mm length and 2.5 mm width.
- RoHS compliant, meeting industry environmental standards.
Product Description
Abracon ABM8-25.000MHz-12-D1X-T is a high-precision 25 MHz crystal unit designed for surface mount applications requiring compact size and reliable frequency stability. Featuring a low profile height of only 0.8 mm, this 4-pin crystal unit fits into spaces demanding thin equipment design.
This device provides tight frequency tolerance of ±10 ppm and frequency stability of ±20 ppm, delivering accurate oscillation performance essential for communication and test equipment, modems, and wireless applications. The 12 pF load capacitance and 50 Ω series resistance optimize performance for fundamental or overtone modes.
Designed to operate across a wide temperature range from -40°C to 85°C, the ABM8 series crystal unit includes a seam sealed package construction that enhances durability and reliability in demanding industrial and electronic environments.
The surface mount tape and reel format facilitates efficient pick-and-place assembly on modern PCBs, making it ideal for high-density electronic component placement. Operates at 25 MHz with ±10 ppm frequency tolerance. Surface mount 4-pin package with low profile 0.8 mm height.
12 pF load capacitance, 50 Ω series resistance for precise operation. Operating temperature range from -40°C to 85°C. RoHS compliant ensuring environmentally safe manufacturing. Suitable for modems, communications, test equipment, PMCIA, and wireless applications.
Seam sealed package guarantees high reliability.
This crystal unit is widely used in industrial, communication, laboratory, and consumer electronics for precise frequency generation. Its compact size and robust construction support advanced electronic design requirements where space and performance are critical.
Explore the Electronics Components and Crystal Unit categories on EnvMart for comprehensive selection and technical support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 25 MHz.
This model has dimensions of 3.2 mm in length, 2.5 mm in width, and a height of 0.8 mm.
It features a frequency tolerance of ±10 ppm.
The load capacitance is 12 pF, and the series resistance is 50 Ω.
The operating temperature range is from -40°C to 85°C.
It is packaged in a tape and reel format, facilitating efficient automated assembly.
This model uses a surface mount type.
It is RoHS compliant, meeting industry environmental standards.
This crystal unit has a pin count of 4.
It is suitable for applications in modems, communications, test equipment, and wireless applications.
The country of origin for this crystal unit is India.
This model belongs to the ABM8 series.
