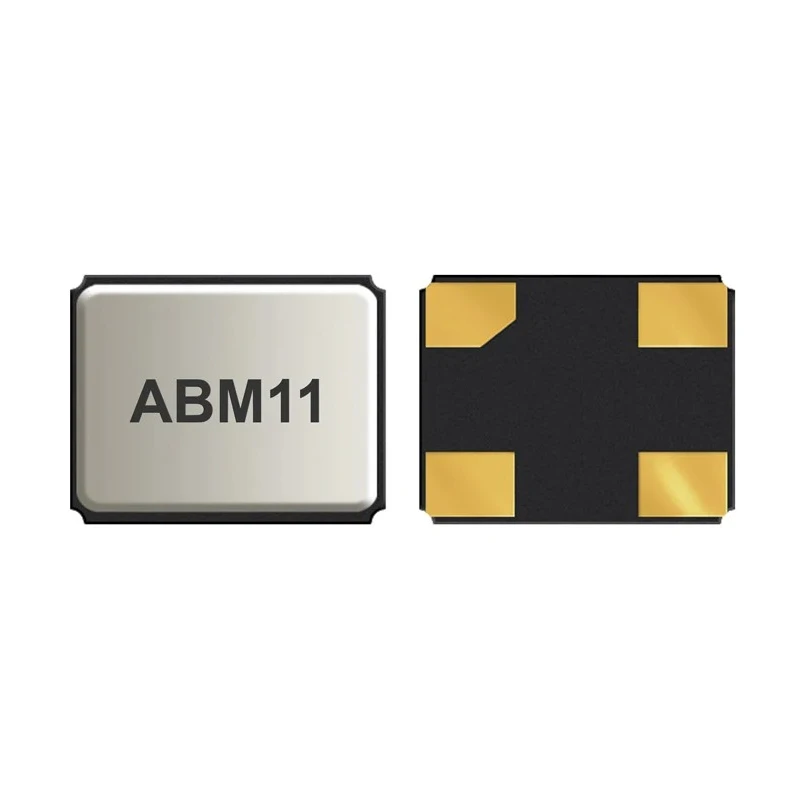

Abracon 16 MHz Crystal Unit ±10 ppm Surface Mount 4-Pin 0.59 mm Height 2 mm Length 1.6 mm Width ABM11-16.000MHz-12-N1G-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.59mm |
| Length | 2mm |
| Model | ABM11-16.000MHz-12-N1G-T |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | ABM11 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -30°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 16MHz |
| Load Capacitance | 12pF |
| Series Resistance | 150Ω |
Key Features
- Features a standard frequency of 16 MHz with ±10 ppm frequency tolerance.
- Surface mount type with a slim 2.0 x 1.6 x 0.59 mm ultra miniature package.
- Load capacitance rated at 12 pF, suitable for stable oscillation circuits.
- Operating temperature range from -30°C to 85°C ensuring reliable performance.
- Series resistance of 150 Ω guarantees low signal loss and high stability.
- RoHS compliant ensuring adherence to environmental standards.
- Seam sealed ceramic package with metal lid assures high precision and reliability.
- Ideal for cellular telephones, pagers, communications, test equipment, and high density applications.
Product Description
The Abracon ABM11-16.000MHz-12-N1G-T is a 16 MHz crystal unit designed for surface mount applications. Its ultra miniature packaging (2.0 x 1.6 x 0.59 mm) allows integration into compact electronics where precision frequency control is imperative.
This crystal unit offers a ±10 ppm frequency tolerance and a frequency stability of ±15 ppm, making it suitable for high-accuracy applications. The load capacitance of 12 pF ensures consistent oscillator performance across a wide operating temperature range of -30°C to 85°C.
Constructed with a seam sealed ceramic package and metal lid, this component delivers excellent reliability and resistance to environmental influences, adhering to RoHS standards.
The device's features include a 4-pin configuration and a series resistance of 150 Ω, optimizing signal integrity for demanding communications and test instrumentation applications.
Typical applications include cellular telephones, pagers, communication and test equipment, PCMCIA and other wireless devices requiring a dependable, high precision crystal oscillator.
Features a standard frequency of 16 MHz with ±10 ppm frequency tolerance. Surface mount type with a slim 2.0 x 1.6 x 0.59 mm ultra miniature package. Load capacitance rated at 12 pF, suitable for stable oscillation circuits.
Operating temperature range from -30°C to 85°C ensuring reliable performance. Series resistance of 150 Ω guarantees low signal loss and high stability. RoHS compliant ensuring adherence to environmental standards. Seam sealed ceramic package with metal lid assures high precision and reliability.
Ideal for cellular telephones, pagers, communications, test equipment, and high density applications.
EnvMart offers a comprehensive selection of electronic components including Crystal Units such as this Abracon model. Browse our catalogue for reliable components to suit your industrial manufacturing, communications, and electronics development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 16 MHz.
This model has dimensions of 2 mm in length, 1.6 mm in width, and 0.59 mm in height.
The load capacitance is rated at 12 pF, which is suitable for stable oscillation circuits.
The operating temperature range is from -30°C to 85°C.
It has a series resistance of 150 Ω, which helps ensure low signal loss and high stability.
This model features a 4-pin configuration.
Yes, it is RoHS compliant, adhering to environmental standards.
The crystal unit is packaged in a tape and reel format.
Typical applications include cellular telephones, pagers, communication and test equipment, and other wireless devices.
It is designed for surface mount applications.
This model belongs to the ABM11 series.
The frequency tolerance is ±10 ppm, ensuring high accuracy for various applications.
