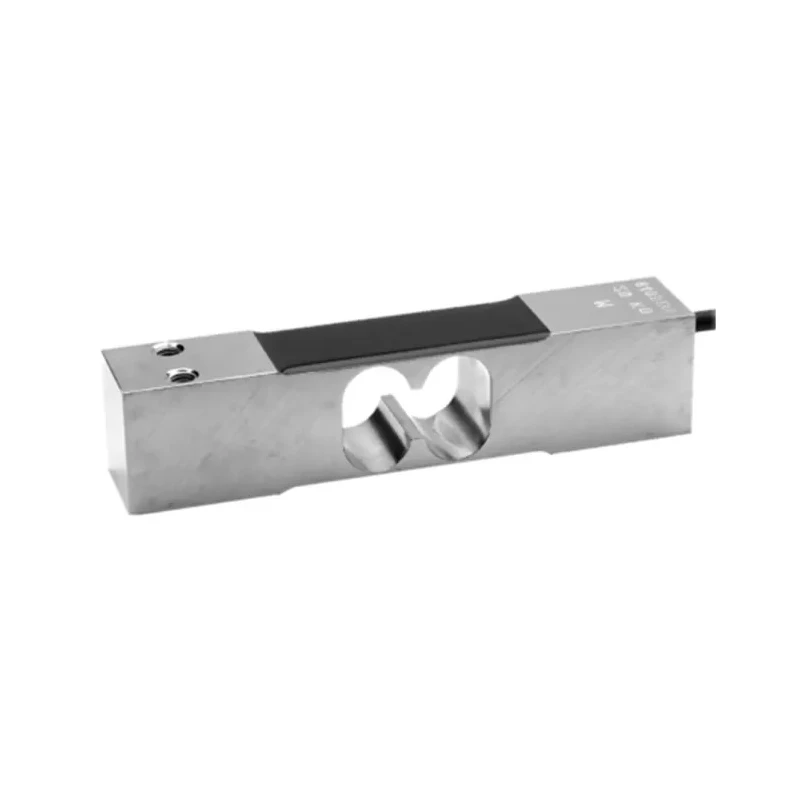

Tedea Huntleigh Low Profile Stainless Steel Load Cell Compression Force Measurement 7-30 kg, 385Ω 01130-030K-C3-11X

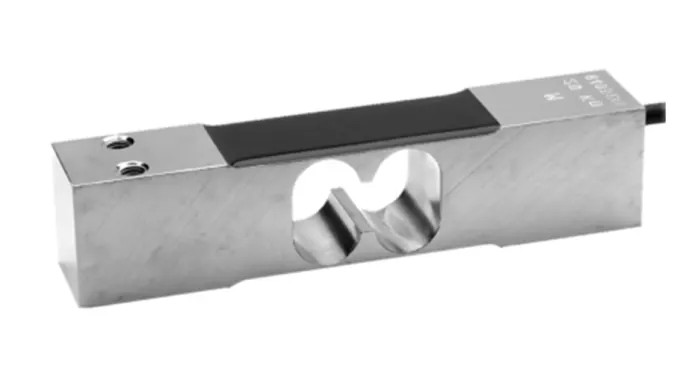

Tedea Huntleigh 01130-030K-C3-11X low profile load cell is a precision stainless steel sensor specialized for compression force measurement with a capacity range from 7 kg to 30 kg and a gauge resistance of 385 ohms. It is engineered for high accuracy and durability, making it suitable for industrial, laboratory, packaging, and process weighing environments.

The compact low profile form factor allows direct mounting on bench and platform scales, providing robust performance even in harsh conditions due to its stainless steel housing and IP66 ingress protection. This load cell features cable terminals and a hole mount type for easy installation.

Operating temperature ranges from -20°C to 40°C, with maximum AC and DC voltage limits of 15V each, ensuring compatibility with various industrial electronics. The incorporated sense wires compensate for lead resistance variations caused by temperature fluctuations or cable extension, enhancing measurement stability.

With dimensions of 25mm width, 30mm length, and 25mm depth, this sensor is optimally sized for small format applications. It complies with RoHS and holds certifications such as NTEP, FM, IECEX, OIML R60, and ATEX, verifying its quality and suitability for stringent industrial environments.

This load cell is widely used in harsh environment small platforms and check weighing systems, contributing to precise and reliable measurements in manufacturing, laboratory, and packaging operations.

Constructed in durable stainless steel for harsh environmental resistance. Low profile design facilitates direct mounting in bench and platform scales. Integrated cable terminal type ensures easy connectivity. Protected with IP66 rating for dust and water ingress.

Operates reliably across temperatures from -20°C to 40°C. Includes sense wires for compensation of lead resistance changes. RoHS compliant and meets multiple international standards including NTEP and IECEX. Dimensions are compact with 25mm width, 30mm length, and 25mm depth.

Ideal for small platform and process weighing applications. Explore more in our Sensors and Load Cell category to find compatible industrial automation solutions and weighing components.
