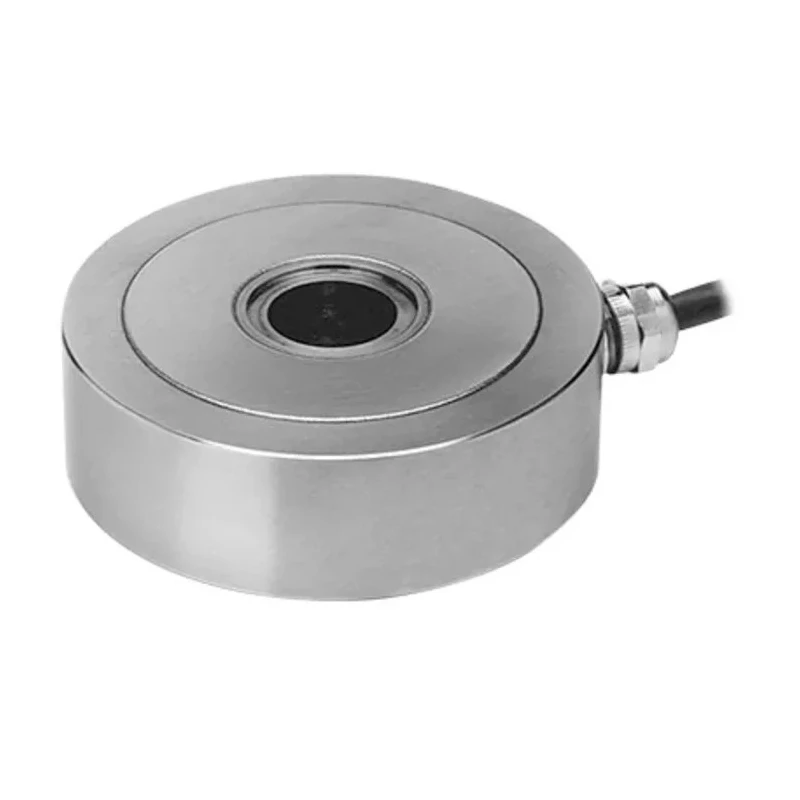

Tedea Huntleigh Low Profile Stainless Steel Ring Torsion Load Cell 0.25 kg to 1000 kg Capacity 00RLC-001T-C3-13X
Specifications
| Country of Origin | India |
|---|---|
| Brand | Tedea Huntleigh |
| Length | 25mm |
| Model | 00RLC-001T-C3-13X |
| IP Rating | IP69K, IP68, IP66 |
| Sensor Type | Low Profile |
| Width | 97.5mm |
| Housing Material | Stainless Steel |
| Series | Model RLC |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Capacity Range | 100 - 500 kg |
| Terminal type | Cable |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | FM, ATEX, RoHS Compliant, OIML R-60, 3000d |
| Force Measured | Torsion |
| Maximum Force/Load Measurement | 1000kg |
| Minimum Force/Load Measurement | 0.25kg |
Key Features
- Constructed from stainless steel for durability and corrosion resistance.
- Fully welded ring design suitable for harsh environments.
- Features glass-to-metal cable-entry ensuring water and dust tightness.
- Wide operating temperature range from -30°C to 70°C.
- IP69K, IP68, and IP66 ratings provide excellent ingress protection.
- Ideal for small to medium platform scales, hoppers, and process weighing applications.
- Supports single-point platform sizes up to 600 x 600 mm, with options to 600 x 800 mm.
- Complies with FM, ATEX, RoHS, and OIML R-60 standards for safety and accuracy.
Product Description
Tedea Huntleigh 00RLC-001T-C3-13X is a high-performance low profile ring torsion type load cell designed for precise force measurement in torsion applications. Constructed entirely from stainless steel with a fully welded housing, it ensures high durability and resistance against harsh environmental conditions commonly encountered in industrial settings.
This load cell features a robust and reliable glass-to-metal cable-entry that achieves IP69K, IP68, and IP66 ingress protection ratings, providing dust and water resistance for use in demanding environments such as food processing, chemicals, and allied process industries.
The sensor operates efficiently within a temperature range of -30°C to 70°C, and supports a maximum DC voltage of 30V DC. Its compact dimensions (width 97.5 mm, length 25 mm) make it ideal for integration into small and medium-sized platform scales, weighing hoppers, and process weighing systems.
With a capacity range from 0.25 kg for minimum force detection up to 1000 kg maximum load, it suits a variety of industrial weighing applications including single-point platforms up to 600 x 600 mm. Larger platform configurations up to 600 x 800 mm are also available.
Stainless steel housing for longevity and corrosion resistance. Low profile ring design suitable for torsion force measurement. High ingress protection with IP69K, IP68, and IP66 certifications. Wide operating temperature and load capacity range for versatile use.
Compliance with FM, ATEX, RoHS, and OIML R-60 standards ensures safety and measurement accuracy. Applications include food industry platforms, marine and hybrid scales, and industrial process weighing hoppers.
This load cell is a reliable choice for industrial automation, laboratory instrumentation, and process control environments requiring precise load measurement under demanding conditions. Explore EnvMart’s full range of Load Cells to find the ideal sensor solution for your weighing and sensing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The load cell has a capacity range from 0.25 kg for minimum force detection up to a maximum load of 1000 kg.
This model has a width of 97.5 mm and a length of 25 mm, making it compact for integration into various applications.
It operates efficiently within a temperature range of -30°C to 70°C.
The load cell features IP69K, IP68, and IP66 ingress protection ratings, ensuring excellent resistance to dust and water.
It complies with FM, ATEX, RoHS, and OIML R-60 standards, ensuring safety and accuracy in measurements.
The maximum DC voltage supported by this load cell is 30V DC.
It is constructed entirely from stainless steel, providing durability and corrosion resistance.
The load cell features a cable terminal type for connectivity.
It supports single-point platform sizes up to 600 x 600 mm, with options available for larger configurations up to 600 x 800 mm.
The load cell is manufactured in India.
