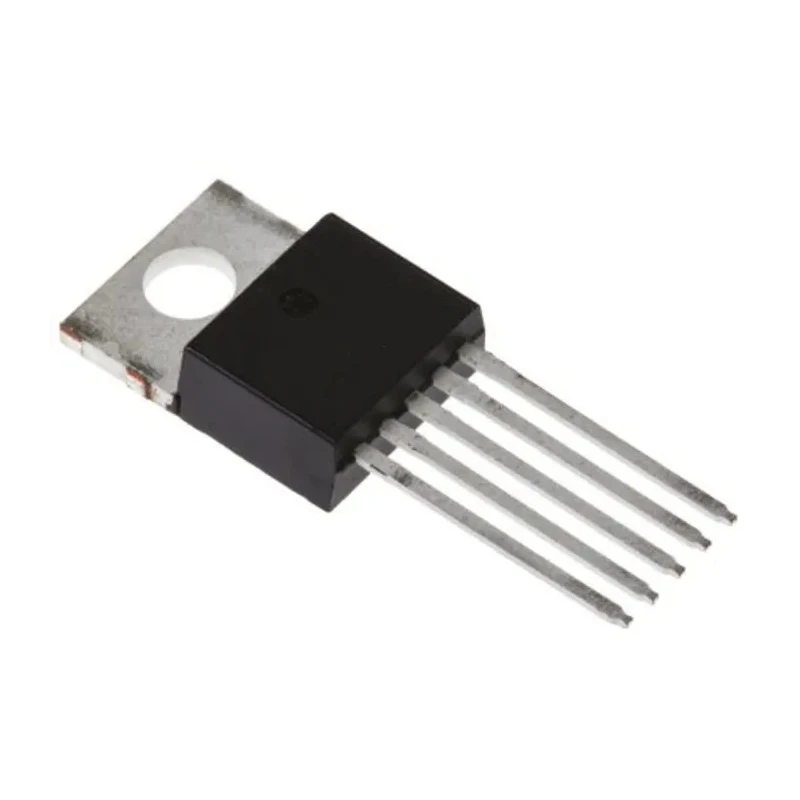

onsemi 5-Channel Boost Buck Adjustable Switching Regulator 3A 37V 63kHz TO-220 5-Pin LM2576TV-ADJG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 15.57mm |
| Length | 10.54mm |
| Model | LM2576TV-ADJG |
| Width | 4.57mm |
| Mount Type | Through Hole |
| Output type | Adjustable |
| Series | LM2576 |
| Output Current | 3A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Regulator Type | Boost, Buck |
| Switching Frequency | 63kHz |
| Number of outputs | 5 |
| Maximum Input Voltage | 40V |
| Output Voltage | 37V |
| Quiescent Current | 5mA |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 7V |
| Pin Count | 5 |
Key Features
- Adjustable output voltage in the range of 1.23 to 37 V with ±4% accuracy.
- Wide input voltage range from 7 V to 40 V supports diverse applications.
- High current output capability with guaranteed 3.0 A continuous current.
- Incorporates thermal shutdown and current limit protection for reliable operation.
- Low quiescent current of 5 mA enables efficient power usage.
- Operational temperature range from -40°C to 125°C suitable for harsh environments.
- Standard TO-220 package with through-hole mount for ease of integration.
- RoHS compliant and Pb-free packaging ensuring environmental safety.
Product Description
onsemi LM2576TV-ADJG is a high-efficiency 5-channel boost and buck switching regulator featuring adjustable output voltage capabilities ranging from 1.23 V to 37 V with ±4% accuracy under load and line conditions. This device supports continuous output current of up to 3 A, making it suitable for various power management applications requiring stable voltage regulation and efficient power conversion.
The regulator operates within a wide input voltage window from 7 V to 40 V and switches at a frequency of 63 kHz, optimizing external component size and system efficiency. Packaged in a durable TO-220 5-pin through-hole form factor, it eases mounting and integration in industrial and commercial electronics designs.
Essential built-in features include a thermal shutdown mechanism, current limit protection, and low quiescent current of 5 mA, which ensures energy-efficient operation with dependable safety margins. Its operating ambient temperature spans from -40°C to 125°C, providing robust performance in demanding environmental conditions.
This product complies with RoHS standards and is supplied in Pb-free packaging, supporting environmentally responsible manufacturing processes. Adjustable output voltage from 1.23 to 37 V with ±4% accuracy. Wide input voltage range: 7 V to 40 V.
Output current rating of 3 A continuous. 63 kHz fixed-frequency internal oscillator. Thermal shutdown and current limit protection ensure reliable operation. TTL shutdown capability with low power standby mode. Through-hole mount TO-220 5-pin package for straightforward PCB integration.
RoHS compliant and Pb-free offering meets environmental standards. Suitable for step-down regulators, pre-regulators, voltage conversion, and battery charging applications. Operating temperature range: -40°C to 125°C.
This regulator is ideal for industrial electronics, power supply design, battery management systems, and many other commercial and manufacturing applications requiring robust, high current, and flexible voltage regulation. Explore the variety of Voltage Regulator products in the Electronics & Electricals Power Management category at EnvMart for comprehensive industrial power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable output voltage range of this model is from 1.23 V to 37 V with ±4% accuracy under load and line conditions.
This regulator can deliver a continuous output current of up to 3 A.
It supports a wide input voltage range from 7 V to 40 V.
The switching frequency of this model is 63 kHz, which helps optimize external component size and system efficiency.
It comes in a TO-220 5-pin through-hole package, facilitating easy mounting and integration.
The operating temperature range for this unit is from -40°C to 125°C, making it suitable for harsh environments.
Yes, it incorporates thermal shutdown and current limit protection to ensure reliable operation.
The quiescent current for this model is 5 mA, which enables efficient power usage.
Yes, the LM2576TV-ADJG is RoHS compliant and comes in Pb-free packaging, supporting environmentally responsible manufacturing.
This model is suitable for applications such as step-down regulators, pre-regulators, voltage conversion, and battery charging.
The height is 15.57 mm and the width is 4.57 mm.
This device features 5 outputs, making it versatile for various power management applications.
